Charging System Location Index [MZR 2.5]

WARNING: This page is about a different variant/trim than selected.

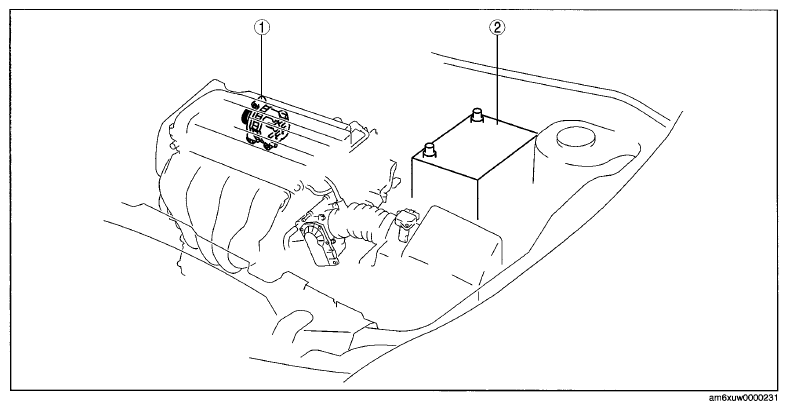

Fig 1: Battery And Generator

Courtesy of MAZDA MOTORS CORP.

CHARGING SYSTEM LOCATION INDEX

1	Generator (See GENERATOR REMOVAL/INSTALLATION [MZR 2.5] .) (See GENERATOR INSPECTION [MZR 2.5] .) (See GENERATOR DISASSEMBLY/ASSEMBLY [MZR 2.5] .)
2	Battery (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .) (See BATTERY INSPECTION [MZR 2.5] .) (See BATTERY RECHARGING [MZR 2.5] .)
