Generator Disassembly/Assembly [MZR 2.5]
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive/heat.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.

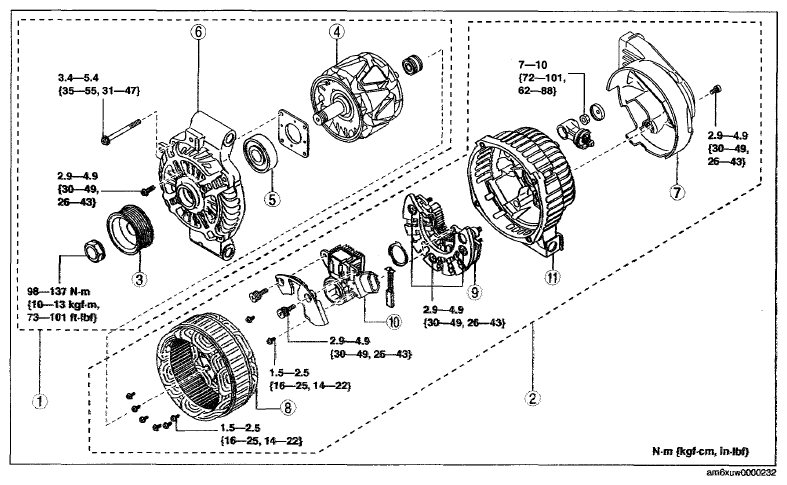

GENERATOR PARTS REFERENCE CHART
| 1 | Rotor component |
| 2 | Stator coil component |
| 3 | Pulley |
| 4 | Rotor |
| 5 | Front bearing |
| 6 | Front cover |
| 7 | Heat insulator |
| 8 | Stator coil |
| 9 | Rectifier |
| 10 | Regulator component |
| 11 | Rear cover |
