Ignition System Location Index

WARNING: This page is about a different variant/trim than selected.

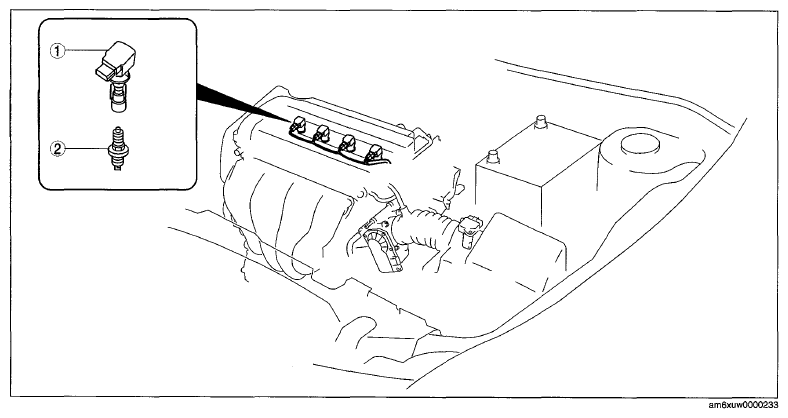

Fig 1: Ignition Coil And Spark Plug
G07620661Courtesy of MAZDA MOTORS CORP.
IGNITION SYSTEM LOCATION INDEX

1 Ignition coil
(See IGNITION COIL REMOVAL/INSTALLATION .)
(See IGNITION COIL INSPECTION .)
2 Spark plug
(See SPARK PLUG REMOVAL/INSTALLATION .)
(See SPARK PLUG INSPECTION .)
