Rear Side Seat Back Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolt.

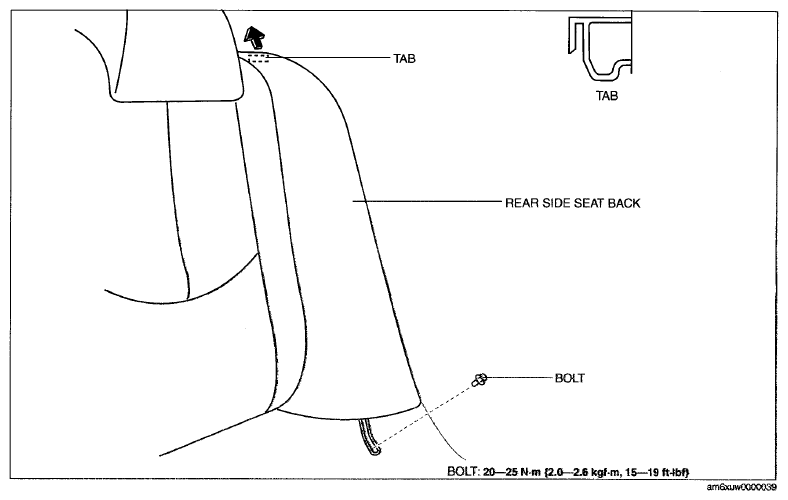

    Fig 1: Rear Side Seat Back, Tab And Bolt
    G07622013Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear side seat back, while remove the tab in the indicated of arrow shown in the illustration.
  4. Install in the reverse order of removal.
