Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remote the cap nut

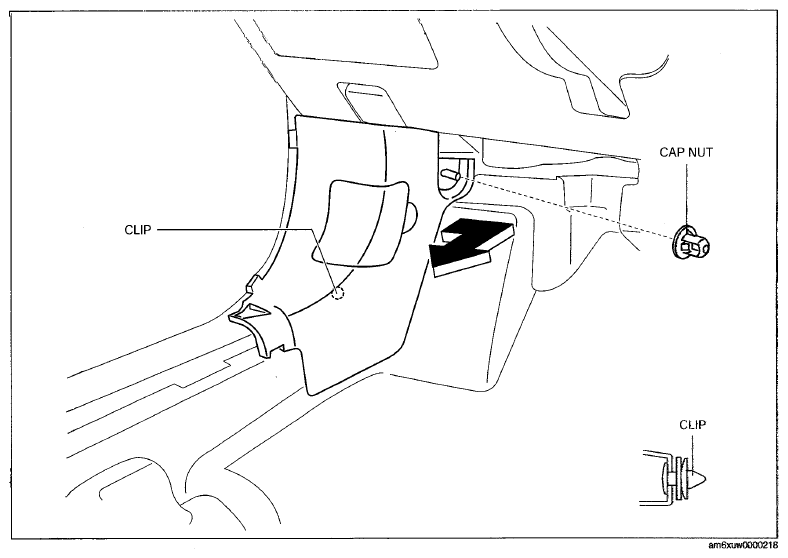

    Fig 1: Pulling Front Side Trim
    G07622287Courtesy of MAZDA MOTORS CORP.
  4. Pull the front side trim in the direction of the arrow shown in the illustration and remove it while detaching clip.
  5. Remove the front side trim.
  6. Install in the reverse order of removal.
