Front Scuff Plate Removal/Installation

  1. Detach tabs A while pulling the front scuff plate in the direction of the arrow (1) shown in the illustration, then detach tabs B, pins C, clips D, pin E and guides F while pulling in the direction of the arrow (2).

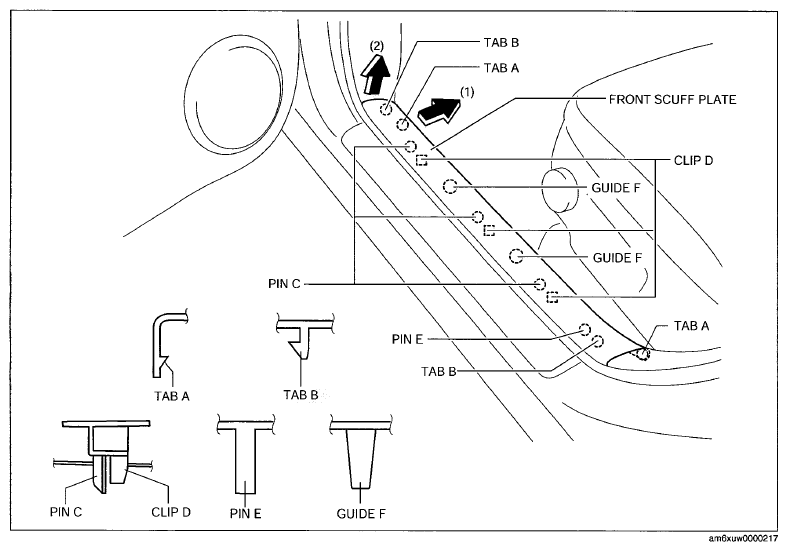

    Fig 1: Pulling Front Scuff Plate
    G07622294Courtesy of MAZDA MOTORS CORP.
  2. Remove the front scuff plate.
  3. Install in the reverse order of removal.
