| 1 |
Instrument cluster
(See
INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See
INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See
INSTRUMENT CLUSTER INSPECTION .)
(See
INSTRUMENT CLUSTER CONFIGURATION .)
(See
INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 2 |
Information display
(See
INFORMATION DISPLAY REMOVAL/INSTALLATION .) |
| (See
INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE .) |
| 3 |
BSM OFF switch
(See
BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION .)
(See
BLIND SPOT MONITORING (BSM) OFF SWITCH INSPECTION .) |
| 4 |
INFO switch
(See
INFO SWITCH REMOVAL/INSTALLATION .)
(See
INFO SWITCH INSPECTION .) |
| 5 |
Fuel gauge sender unit
(See
FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .)
(See
FUEL GAUGE SENDER UNIT INSPECTION .) |

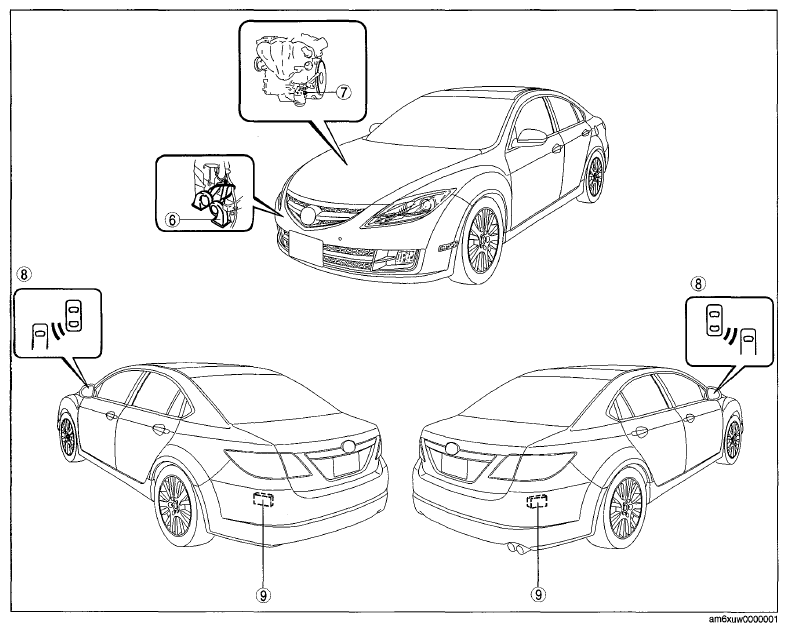

| 6 |
Horn
(See
HORN REMOVAL/INSTALLATION .) |
| 7 |
Oil pressure switch
(See
OIL PRESSURE SWITCH INSPECTION .) |
| 8 |
BSM indicator light
(See
BLIND SPOT MONITORING (BSM) INDICATOR LIGHT REMOVAL/INSTALLATION .)
(See
BLIND SPOT MONITORING (BSM) INDICATOR LIGHT INSPECTION .) |
| 9 |
BSM control module
(See
BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION .)
(See
BLIND SPOT MONITORING (BSM) CONTROL MODULE INSPECTION .)
(See
BLIND SPOT MONITORING (BSM) BRACKET REMOVAL/INSTALLATION .)
(See
BLIND SPOT MONITORING (BSM) RADAR TEST .)
(See
INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE .) |
