Blind Spot Monitoring (BSM) Bracket Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
3. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)
4. Remove the BSM control module. (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION .)
5. Remove the nuts.
6. Remove the BSM bracket.
7. Install in the reverse order of removal.
8. Perform the blind spot monitoring radar test. (See BLIND SPOT MONITORING (BSM) RADAR TEST .)

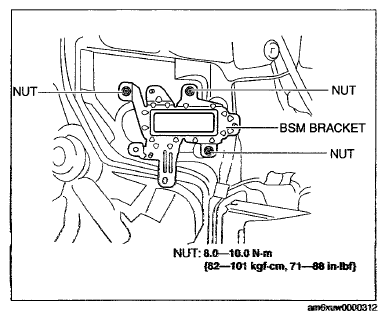

Fig 1: BSM Bracket And Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.
