Drive Belt Removal / Installation - 4.0L

  1. Remove the air cleaner outlet tube.

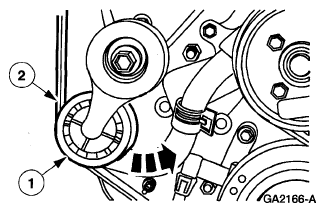

    Fig 1: Rotating Drive Belt Tensioner Counterclockwise
    G04929558Courtesy of MAZDA MOTORS CORP.
  2. Remove the drive belt.
    1. Rotate the drive belt tensioner counterclockwise.
    2. Remove the drive belt.
  3. To install, reverse the removal procedure.
