A/C Compressor Removal / Installation - 2.3L

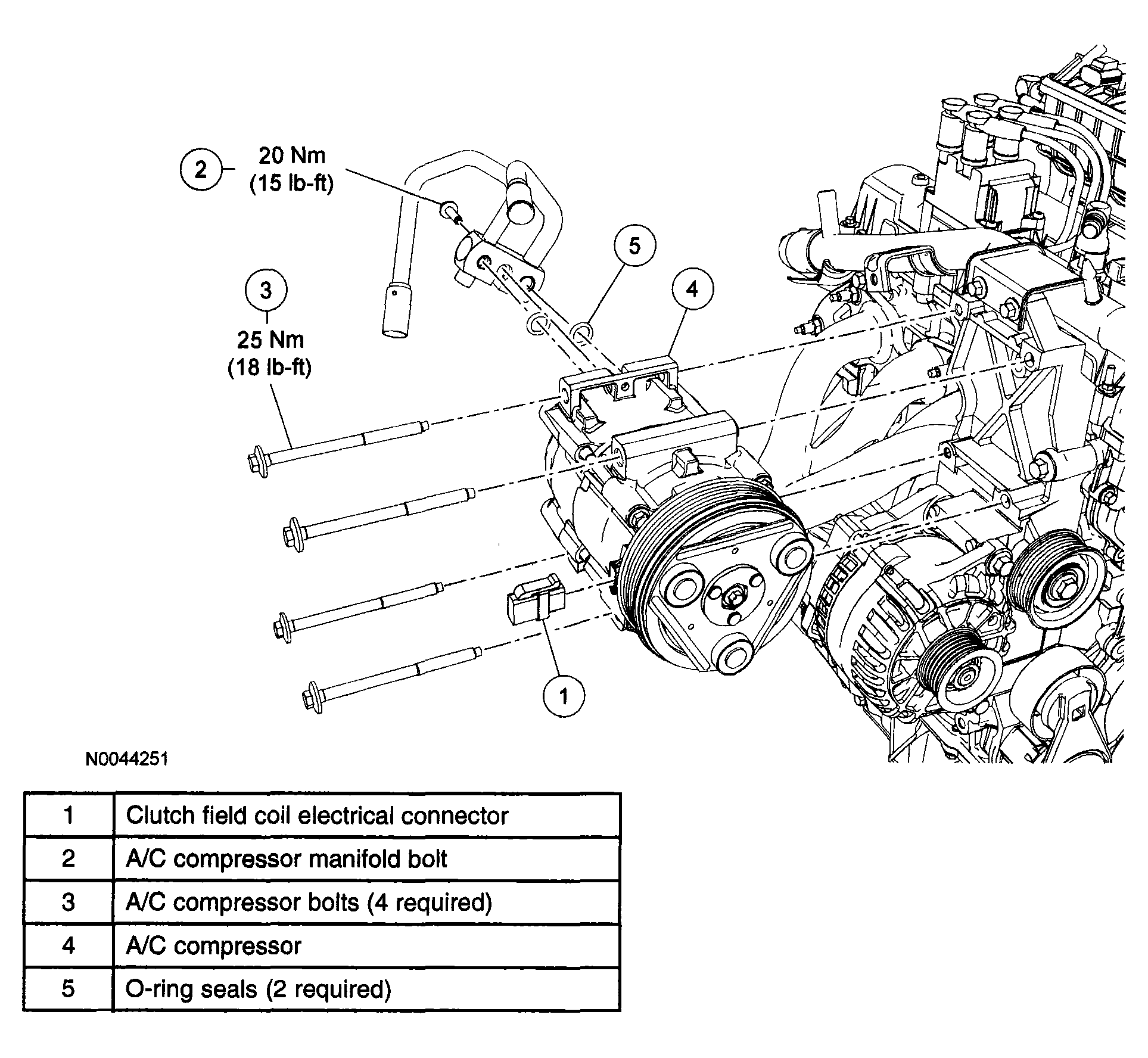

Fig 1: Removing/Installing A/C Compressor With Torque Specifications (2.3L)

Courtesy of MAZDA MOTORS CORP.

CAUTION:

• When installing a new A/C compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system:
• If A/C flushing equipment is available, carry out the flushing of the air condition system prior to installing a new air conditioning compressor.
• If A/C flushing equipment is not available, carry out the filtering of the air conditioning system after a new air conditioning compressor has been installed. See A/C REFRIGERANT SYSTEM FILTERING AFTER A/C COMPRESSOR REPLACEMENT .
• Install a new evaporator core orifice as directed by the A/C flushing or filtering procedure. See EVAPORATOR CORE ORIFICE REMOVAL / INSTALLATION  .
• Replace the receiver/drier. See A/C RECEIVER /DRIER REMOVAL/INSTALLATION  .

NOTE:

• Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. If flushing the refrigerant system has not been performed, recover the refrigerant. See A/C REFRIGERANT SYSTEM TESTS .
2. Remove the accessory drive belt from the A/C compressor pulley. See DRIVE BELT REMOVAL / INSTALLATION - 2.3L .
3. Disconnect the electrical connector.

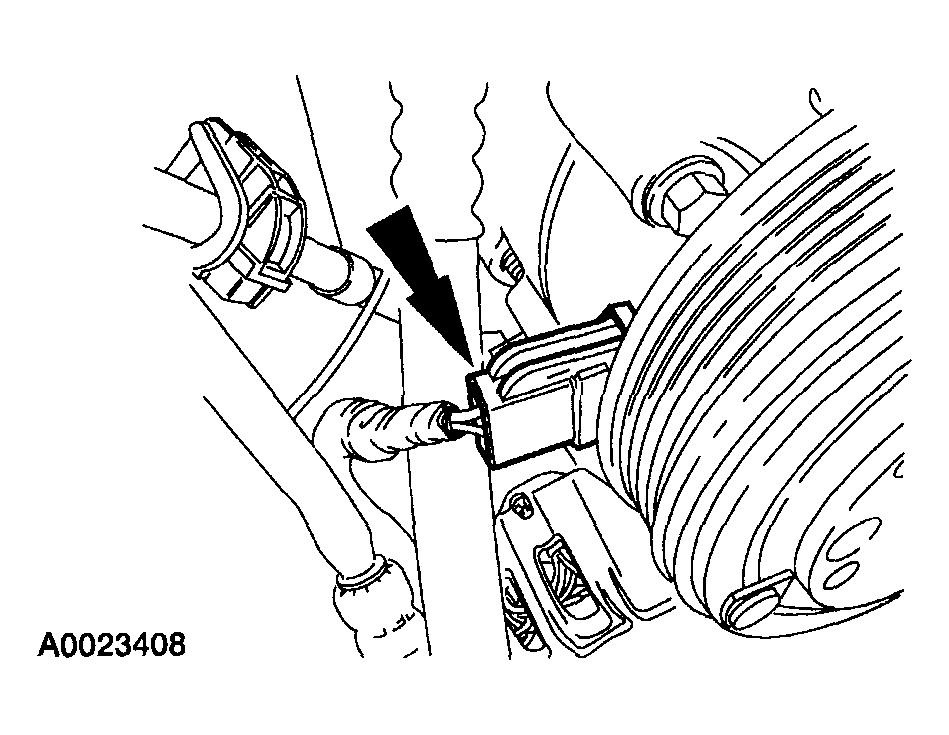

   Fig 2: Disconnecting Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
4. Disconnect the compressor manifold and tube assembly from the A/C compressor.

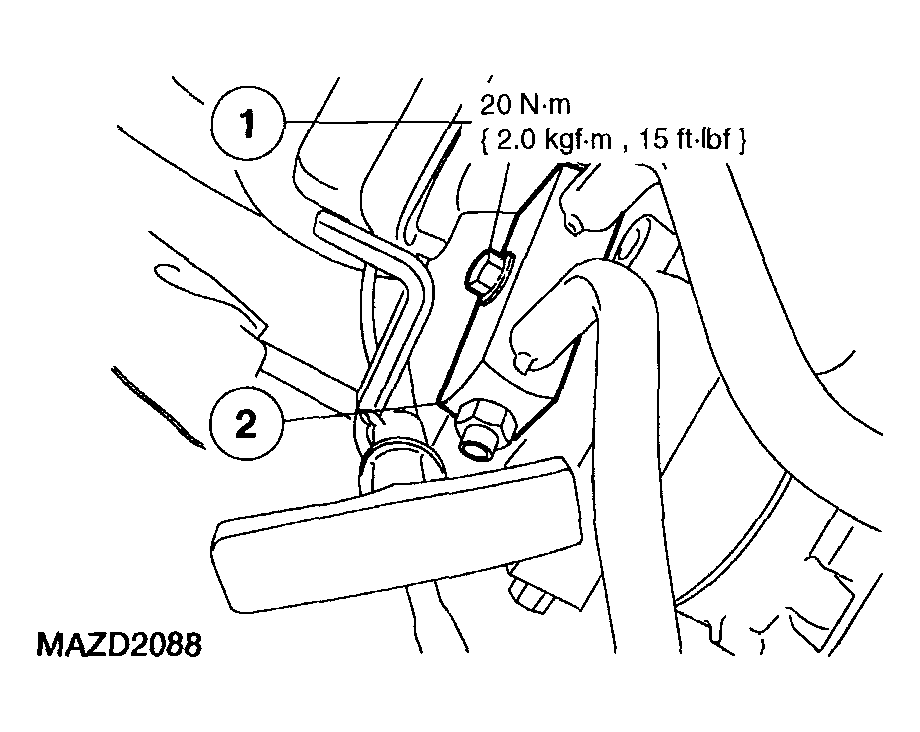

   Fig 3: Removing/Installing Compressor Manifold And Tube Assembly With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   1. Loosen the bolt.
   2. Disconnect and position aside the compressor manifold and tube assembly.
5. Remove the bolts and the A/C compressor.

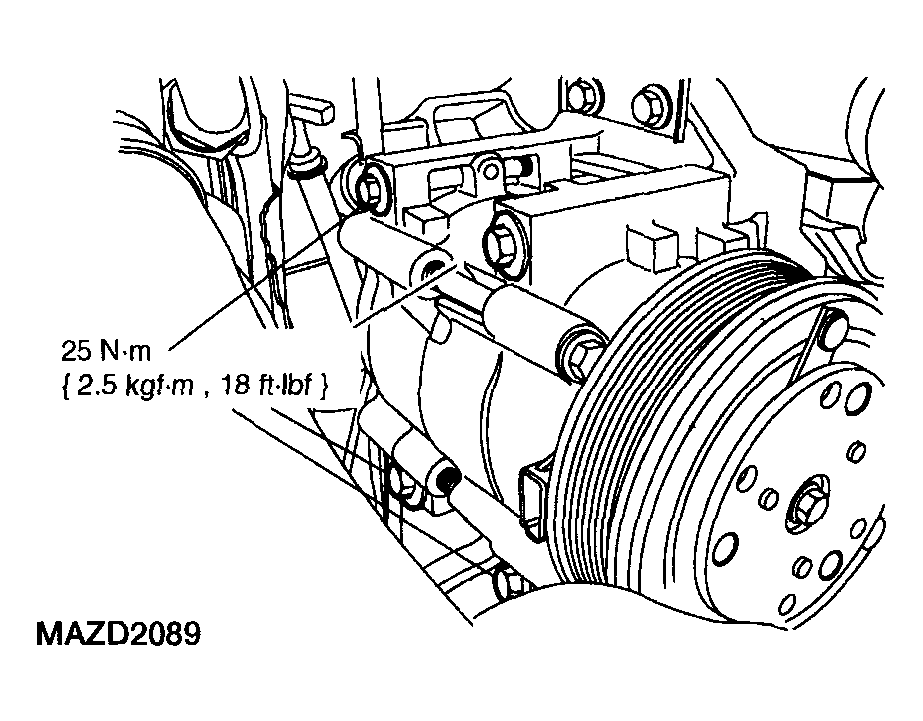

   Fig 4: Removing/Installing A/C Compressor Bolts With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
6. To install, reverse the removal procedure.
   • If a new A/C compressor is to be installed, the A/C compressor clutch field coil and the A/C clutch plate must be transferred from the old unit. See A/C COMPRESSOR MAGNETIC CLUTCH REMOVAL / INSTALLATION  .
   • If filtering of the refrigerant system is not to be performed, lubricate the refrigerant system with the correct amount of clean refrigerant oil. See A/C REFRIGERANT OIL ADDITION .
   • Install new O-ring seals lubricated in clean refrigerant oil.
7. If filtering of the refrigerant is not to be performed, evacuate, leak test and charge the refrigerant system. See A/C REFRIGERANT OIL ADDITION .
