Control Valve Body Removal / Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle re-learns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts either soft or firm and this is a temporary condition and will eventually return to normal operating condition.
  1. Disconnect the negative battery cable.
  2. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
    NOTE:
    • If a transmission has been disassembled to replace worn or damaged parts and the valves in the main control valve body stick repeatedly from foreign material, the torque converter must be removed and cleaned by using a mechanically agitated cleaner, such as the torque converter/fluid cooler cleaner.
  3. Remove the oil pan and oil strainer. See AUTOMATIC TRANSMISSION OIL PAN (GASKET AND OIL STRAINER) REMOVAL / INSTALLATION , .
  4. Unclip control valve body wire harness.
    Fig 1: Locating Control Valve Body Wire Harness
    G04930427Courtesy of MAZDA MOTORS CORP.
    • Lift up on wire harness guide and protector and disengage the retaining pins from the solenoid clamps.
  5. Disconnect the (1) SS1, SS2, SS3 and CCS/SS4 electrical connectors.
  6. Disconnect the (2) torque converter clutch (TCC) solenoid electrical connector.
  7. Disconnect the (3) electronic pressure control (EPC) solenoid electrical connector.
    Fig 2: Locating Solenoid Electrical Connectors
    G04930428Courtesy of MAZDA MOTORS CORP.
  8. Remove the detent bolt (1) and spring (2).
    Fig 3: Identifying Detent Bolt And Spring
    G04930429Courtesy of MAZDA MOTORS CORP.
  9. Remove the reverse servo (2).
    • Remove the reverse servo cover and gasket.
      1. (1) Discard gasket.
      WARNING:
      • The piston assembly can pop out due to spring pressure when removing the cover. Failure to follow these instructions may result in personal injury.

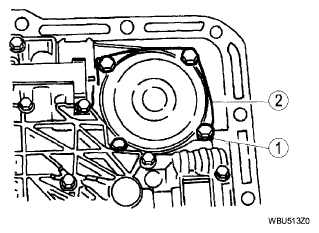

    Fig 4: Identifying Reverse Servo Cover And Gasket
    G04930430Courtesy of MAZDA MOTORS CORP.
  10. Remove the reverse servo piston and rod.
    Fig 5: Holding Reverse Servo Piston And Rod
    G04930431Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Support main control valve body.
  11. Do not remove the two (gold) bolts specified.

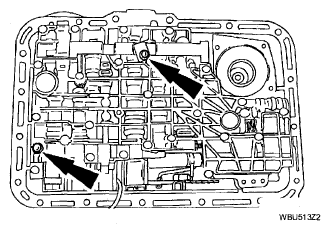

    Fig 6: Locating (Gold) Bolts
    G04930432Courtesy of MAZDA MOTORS CORP.
  12. Remove the 23 main control valve body (black) bolts.
    CAUTION:
    • Support the main control valve body.
    NOTE:
    • Use a 10 mm socket to remove the 16 M6x40mm, 4 M6x45mm, 2 M6x35 and 1 M6x30mm control valve body screws.

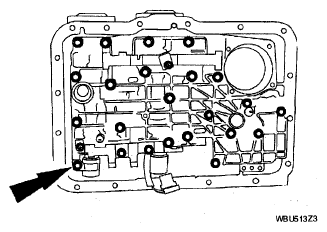

    Fig 7: Locating Control Valve Body Screws
    G04930433Courtesy of MAZDA MOTORS CORP.
  13. Remove the control valve body as an assembly.
  14. Install the alignment pins SST  into the transmission case.

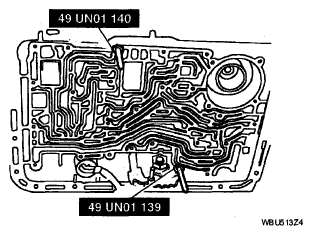

    Fig 8: Identifying Alignment Pins SST
    G04930434Courtesy of MAZDA MOTORS CORP.
  15. Install a new gasket and separator.
    Fig 9: Identifying Gasket And Separator
    G04930435Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Make sure main control to case gasket is properly aligned.

    Use petroleum jelly to hold gasket in place.

  16. Install the control valve body assembly.
    1. Position the assembly using the alignment pins SST  as a guide.
    2. Loosely install the four M6x45mm main control valve body bolts.

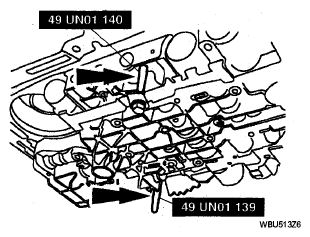

      Fig 10: Locating Alignment Pins SST
      G04930436Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • The main control valve body bolts will be tightened in later steps.
    3. Loosely install the two M6x35mm main control valve body bolts.

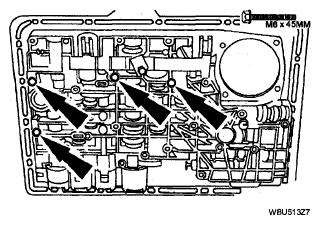

      Fig 11: Locating Control Valve Body Bolts
      G04930437Courtesy of MAZDA MOTORS CORP.
    4. Remove the alignment pins SST  .

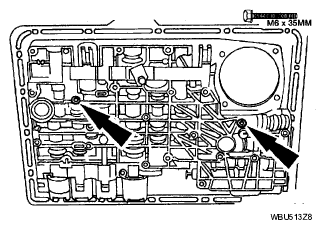

      Fig 12: Locating Alignment Pins
      G04930438Courtesy of MAZDA MOTORS CORP.
    5. Loosely install the M6x30mm main control valve body bolt.

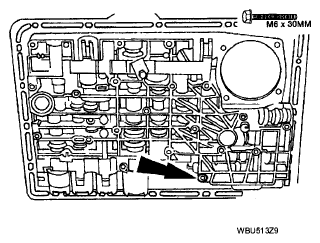

      Fig 13: Locating Control Valve Body Bolt
      G04930439Courtesy of MAZDA MOTORS CORP.
    6. Loosely install the sixteen M6x40mm main control valve body bolts.

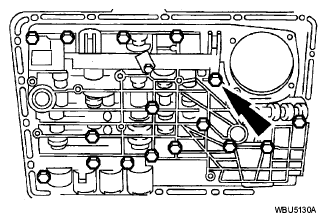

      Fig 14: Locating Control Valve Body Bolt
      G04930440Courtesy of MAZDA MOTORS CORP.
    7. Tighten the main control valve body bolts in the sequence shown.

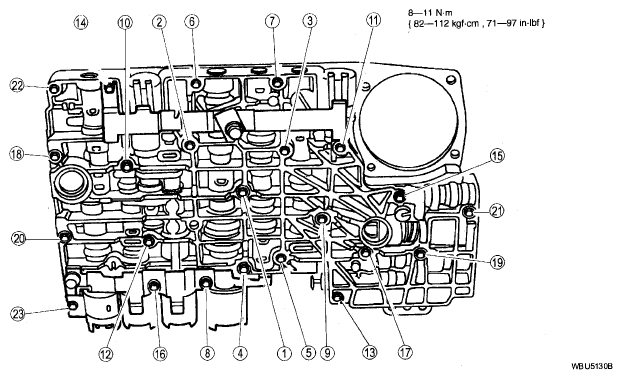

    Fig 15: Main Control Valve Body Bolts Tightening Sequence
    G04930441Courtesy of MAZDA MOTORS CORP.
  17. Install the spring and detent spring bolt.

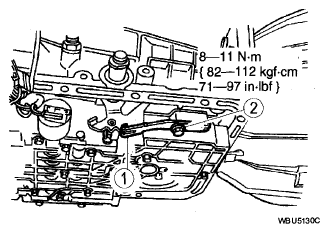

    Fig 16: Spring And Detent Spring Bolt With Torque Specifications
    G04930442Courtesy of MAZDA MOTORS CORP.
  18. Install the reverse servo piston and rod.
    Fig 17: Locating Reverse Servo Piston And Rod
    G04930443Courtesy of MAZDA MOTORS CORP.
  19. Check the reverse piston travel.
  20. Install a new gasket and reverse piston cover and tighten in order shown.

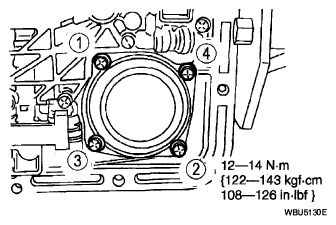

    Fig 18: Gasket And Reverse Piston Cover Bolts Tightening Sequence With Torque Specifications
    G04930444Courtesy of MAZDA MOTORS CORP.
  21. Connect the six solenoid connectors to the solenoids.
    1. SS1, SS2, SS3 and CCS/SS4 solenoids
    2. TCC solenoid
    3. EPC solenoid
    NOTE:
    • The wiring guide snaps into place on the solenoid retainers.
    Fig 19: Locating Solenoid Electrical Connectors
    G04930428Courtesy of MAZDA MOTORS CORP.
  22. Install the wiring loom protector and guide.
    Fig 20: Locating Control Valve Body Wire Harness
    G04930427Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Excessive pressure may break the locating pins.
    • Align the pins in the holes of the solenoid brackets and gently push down.
  23. Test the solenoid valves. See AUTOMATIC TRANSMISSION DIAGNOSIS , .
  24. Install new O-rings on the oil strainer.
  25. Apply petroleum jelly to the O-rings.
  26. Install the oil strainer.

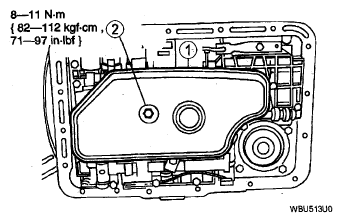

    Fig 21: Oil Strainer Bolt With Torque Specifications
    G04930447Courtesy of MAZDA MOTORS CORP.
  27. Install the oil pan gasket.
    Fig 22: Identifying Oil Pan Gasket
    G04930448Courtesy of MAZDA MOTORS CORP.
  28. Install the oil pan.
    Fig 23: Oil Pan Bolt With Torque Specifications
    G04930449Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Use a crisscross sequence to tighten the transmission fluid pan bolts.
  29. Install transmission heat shield (5R44E/5R55E only).

    Tightening Torque

    8-11 Nm { 82-112 kgfcm, 71-97 in.lbf }

  30. Lower the vehicle.
    NOTE:
    • When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle re-learns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts either soft or firm and this is a temporary condition and will eventually return to normal operating condition.
  31. Connect the negative battery cable.
  32. Fill transmission to the proper fluid level. See AUTOMATIC TRANSMISSION PRELIMINARY INSPECTION , .
  33. Drive vehicle and check shift points, shift schedule and shift shock. See AUTOMATIC TRANSMISSION PRELIMINARY INSPECTION , .
