Removal Note

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Remove the lower intake manifold. See INTAKE MANIFOLD LOWER REMOVAL / INSTALLATION - 3.0L , .
Remove the A/C compressor. See A/C COMPRESSOR REMOVAL / INSTALLATION -- 3.0L .
Remove the generator. See GENERATOR REMOVAL / INSTALLATION -- 3.0L .
Remove the power steering pump. See POWER STEERING PUMP - 2.3L , .
Remove the generator mounting bracket.

Fig 1: Locating Generator Mounting Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the rocker arms and the push rods.

Fig 2: Locating Rocker Arms And Push Rods Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the nut and detach the wiring harness bracket.

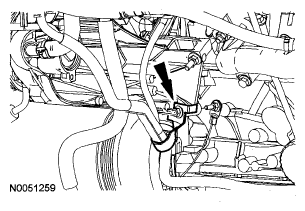

Fig 3: Locating Wiring Harness Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the two stud bolts from the rear of the A/C compressor mounting bracket.

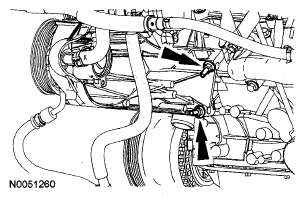

Fig 4: Locating Two Stud Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the accessory drive belt tensioner.

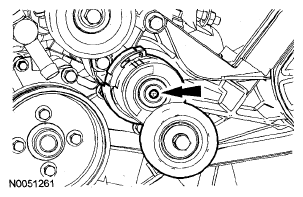

Fig 5: Locating Accessory Drive Belt Tensioner
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and remove the A/C compressor mounting bracket.

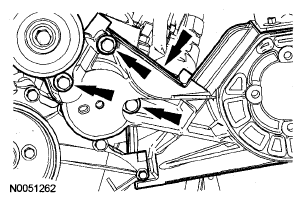

Fig 6: Locating A/C Compressor Mounting Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the exhaust manifolds. See EXHAUST MANIFOLD RIGHT HAND REMOVAL / INSTALLATION - 3.0L , and EXHAUST MANIFOLD LEFT HAND REMOVAL / INSTALLATION - 3.0L .
Remove and discard the eight cylinder head bolts.

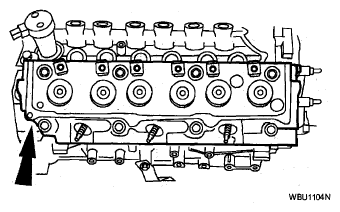

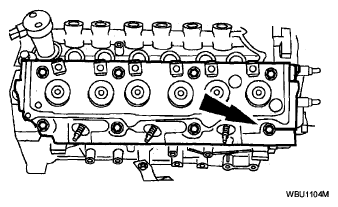

Fig 7: Locating Cylinder Head Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the cylinder heads.

Fig 8: Locating Cylinder Head
Courtesy of MAZDA MOTORS CORP.
Remove and discard the cylinder head gaskets.

Fig 9: Locating Cylinder Head Gaskets

Courtesy of MAZDA MOTORS CORP.
