Engine Mount Rubber Removal / Installation - 2.3L

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

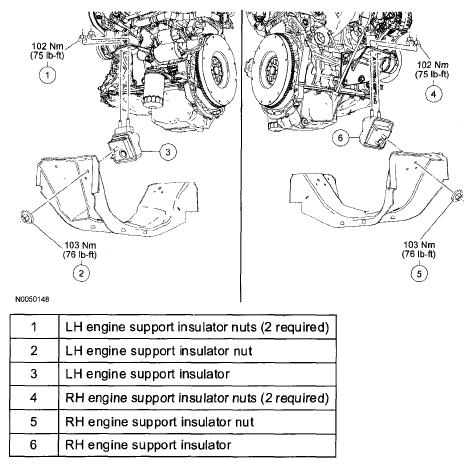

Fig 1: Engine Mount Rubber Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Remove the front springs. See SPRING .

Fig 2: Locating Pushpins
Courtesy of MAZDA MOTORS CORP.
Remove the pushpins and position the right inner fender splash shield out of the way.
Lower the vehicle.
Remove the clutch fan. See COOLING FAN AND CLUTCH REMOVAL / INSTALLATION -- 2.3L .

Fig 3: Engine Support Insulator Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Right hand shown, left hand similar.
Remove the RH and LH engine support insulator nuts.
Install the engine lifting eyes SST (303-D050) or equivalent.
Raise the engine with the 3-bar engine support kit SST 303-F-72 or equivalent.
Raise and support the vehicle.
NOTE:
- Right hand shown, left hand similar.
Remove the nuts and the engine support insulators.
Tightening Torque:

103 Nm {10.5 kgf-m, 76 ft-lbf}
To install, reverse the removal procedure.
