Cooling Fan And Clutch Removal / Installation - 2.3L

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the mechanical fan nut.

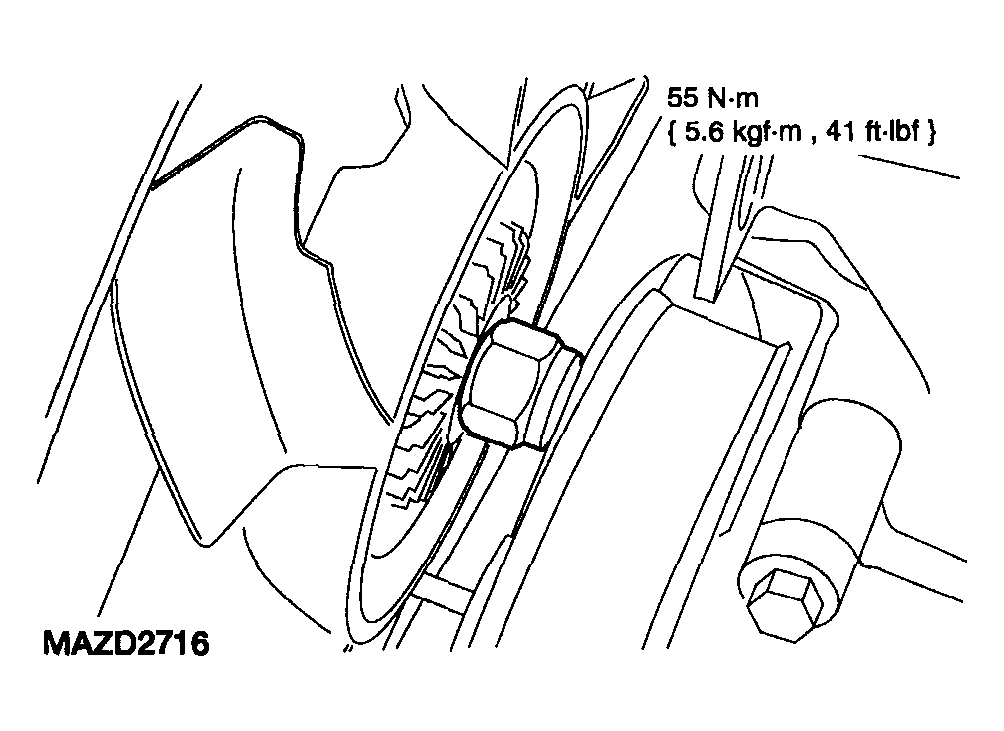

Fig 1: Removing/Installing Mechanical Fan Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the fan and clutch assembly.

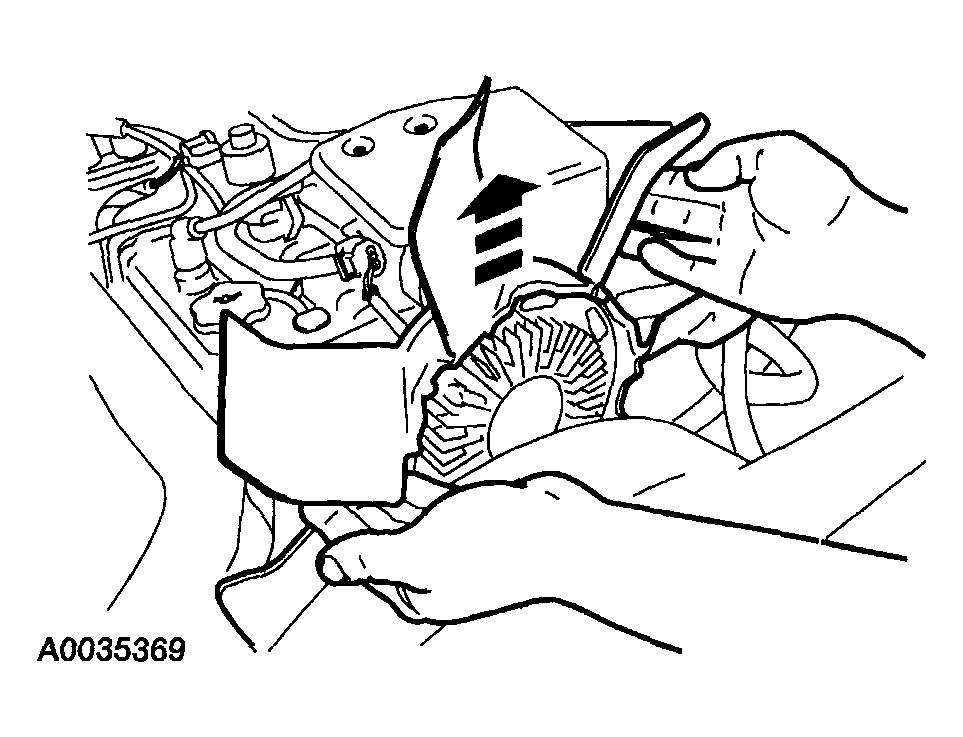

Fig 2: Removing Fan And Clutch Assembly
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
