Disassembly Note

WARNING: This page is about a different car, the 2007 Mazda B3000, 2006 Mazda B3000, 2005 Mazda B3000, 2004 Mazda B3000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust manifold.
1. Remove the bolts.
2. Remove the exhaust manifold.

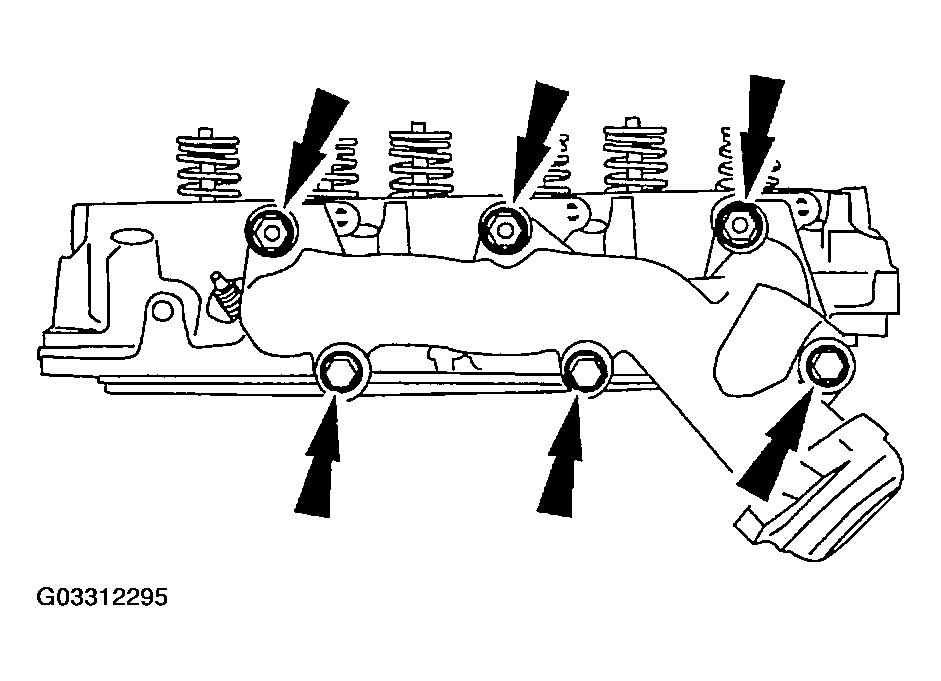

Fig 1: Removing Exhaust Manifold
Courtesy of MAZDA MOTORS CORP.
Remove the exhaust manifold gasket.

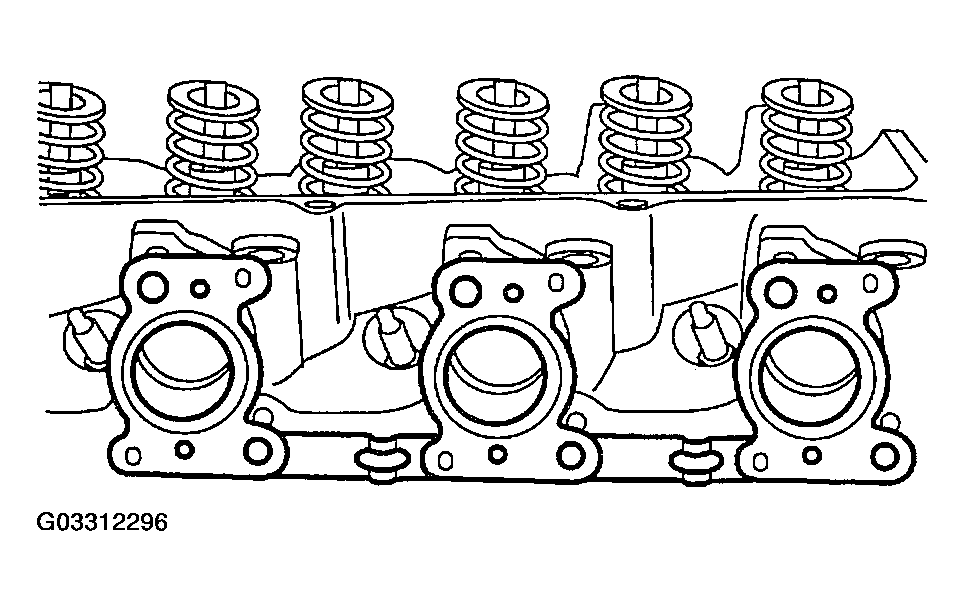

Fig 2: Removing Exhaust Manifold Gasket
Courtesy of MAZDA MOTORS CORP.
Using a Valve Spring Compressor SST 303-163 (T81P-6513-A) or equivalent, remove the valve spring retainer key.

Fig 3: Removing Valve Spring Retainer Key
Courtesy of MAZDA MOTORS CORP.
Remove the valve spring retainer.
- For component tests for the valve spring retainer, refer to VALVE SPRING INSPECTION .
Fig 4: Removing Valve Spring Retainer
Courtesy of MAZDA MOTORS CORP.
Remove the valve stem seal.

Fig 5: Removing Valve Stem Seal
Courtesy of MAZDA MOTORS CORP.
Remove the valve.
- For component tests for the valve, refer to VALVE INSPECTION .
- For component tests for the cylinder head, refer to CYLINDER HEAD INSPECTION .
Fig 6: Removing Valve
Courtesy of MAZDA MOTORS CORP.
