Pickup Bed Lean - Shimming, Axle

NOTE:

A side-to-side lean may be adjusted by 6 mm (0.25 in) by placing a shim between the rear spring and the axle on the low side of the vehicle.

Determine if the pickup bed requires shimming. See PICKUP BED LEAN - MEASUREMENTS .
Without removing the tires from the ground, raise the vehicle enough to take the weight off of the rear springs.

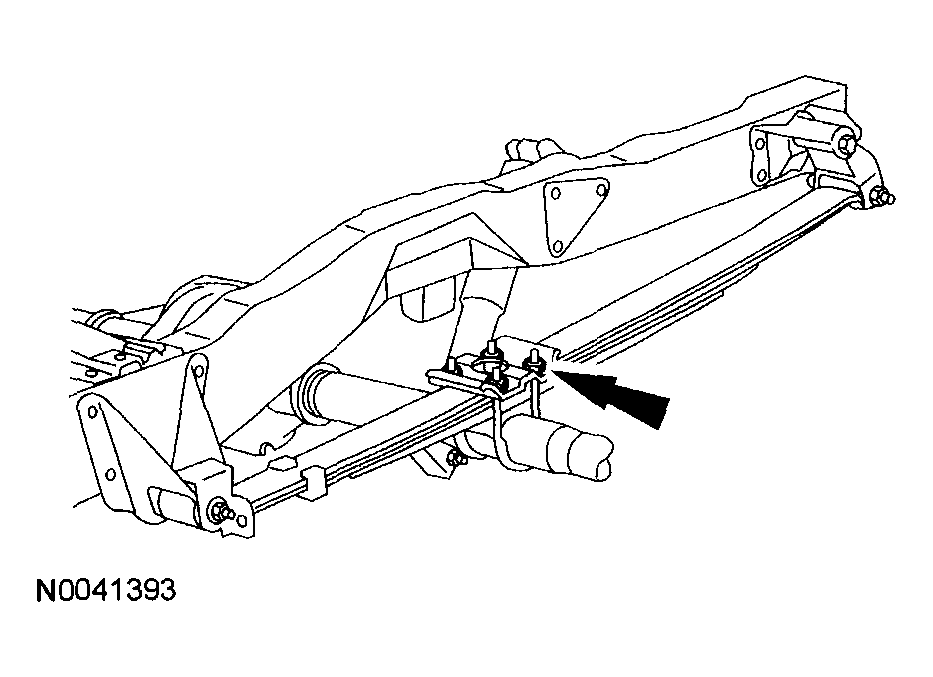

Fig 1: Loosening Spring U-Bolt Nuts
Courtesy of MAZDA MOTORS CORP.
Loosen the spring U-bolt nuts.
- Separate the spring and the axle approximately 13 mm (0.5 in).
  NOTE:
  - On 4WD vehicles place the shim between the rear spring and the axle spacer.
Install the shim.

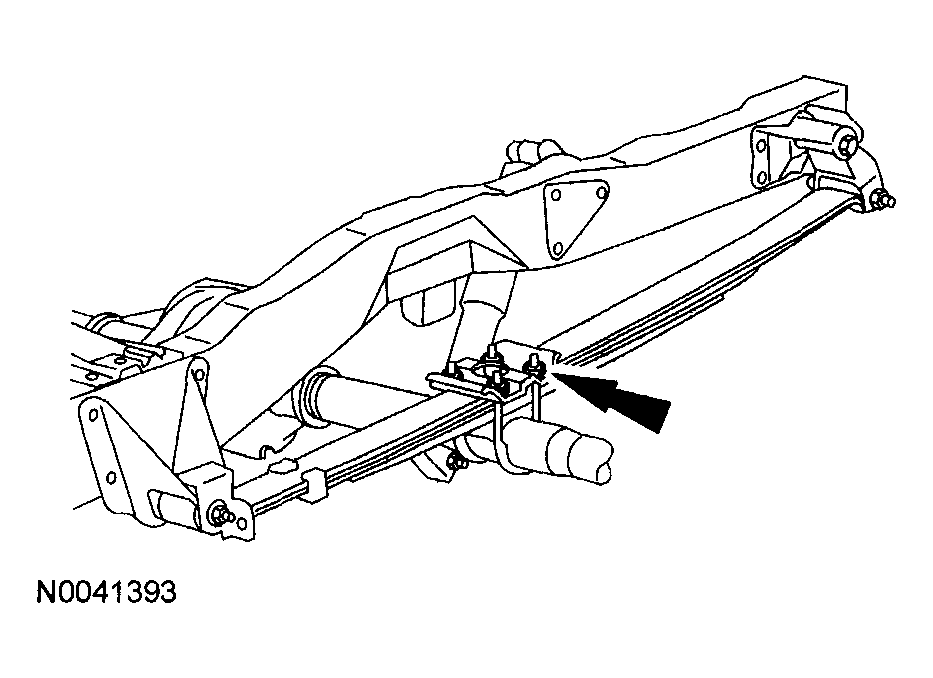

Fig 2: Tightening U-Bolt Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the U-bolt nuts.
- Tighten to 103 N-m (10.5 kgf-m, 76 ft-lbf).
Lower the vehicle.
Check the vehicle lean. See PICKUP BED LEAN - MEASUREMENTS .
