Power Steering Oil Pump Removal/Installation [L3, L3 With TC]

  1. Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3]. ) (See DRIVE BELT REPLACEMENT [L3 WITH TC]. )
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

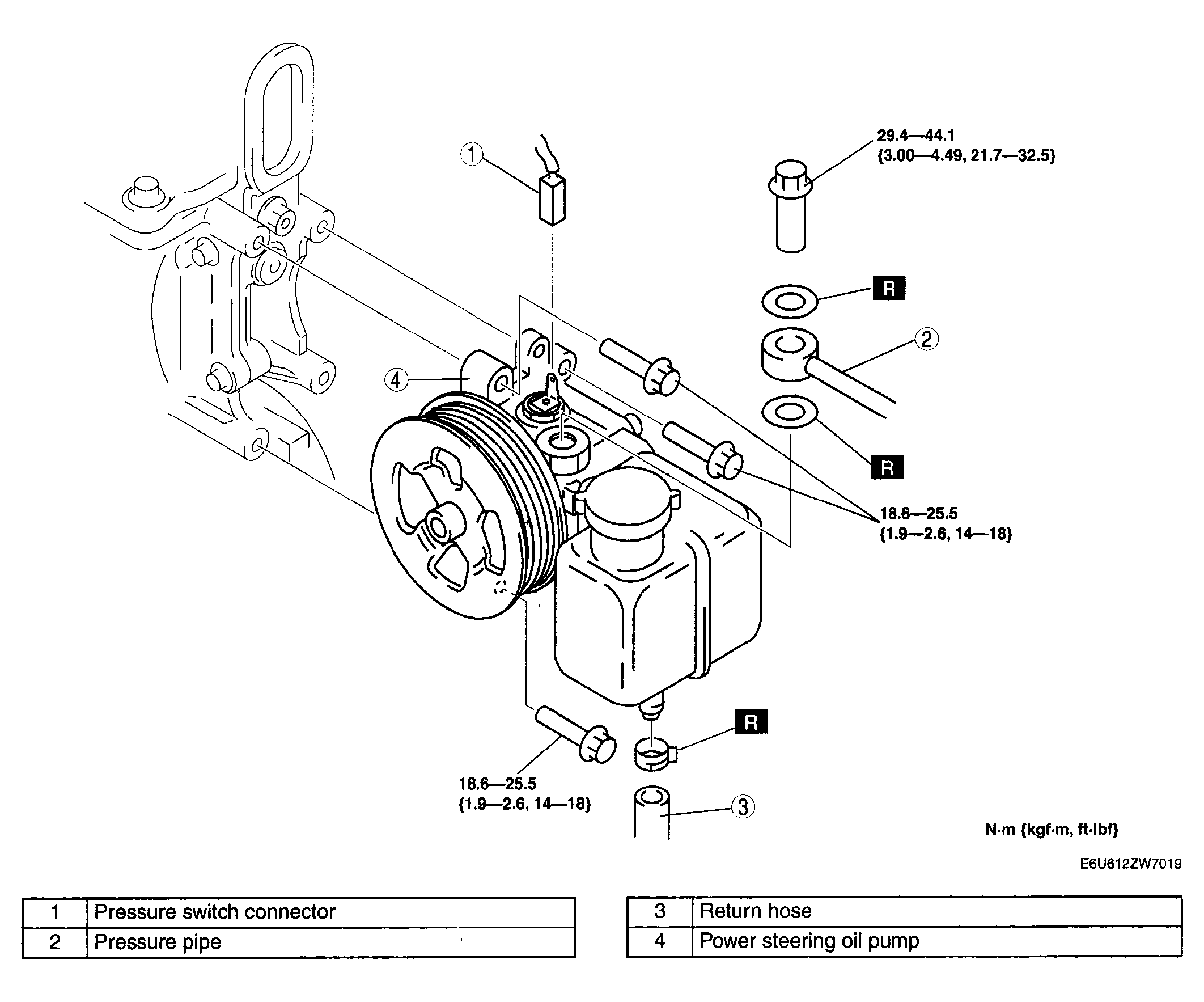

    Fig 1: Power Steering Oil Pump & Torque Specification (L3, L3 With TC)
    G04326569Courtesy of MAZDA MOTORS CORP.
