Drive Belt Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the splash shield (RH).
  2. Rotate the drive belt auto tensioner in the direction shown in the figure and remove the drive belt.
  3. Install a new drive belt.
  4. Verify that the drive belt auto tensioner indicator mark does not exceed the limit. (See DRIVE BELT INSPECTION ).
  5. Install the splash shield (RH).

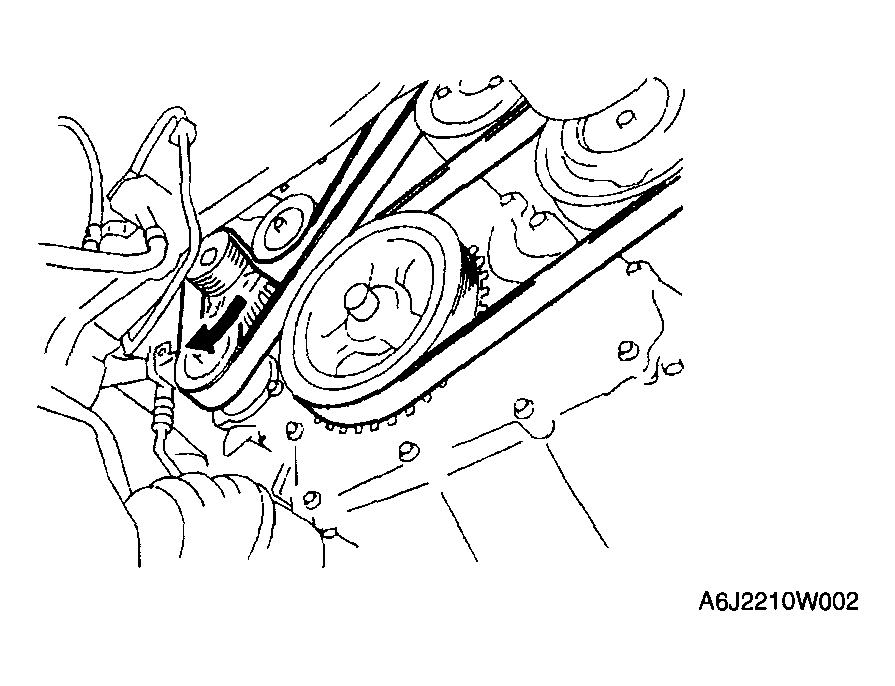

    Fig 1: Rotating Drive Belt Auto Tensioner
    G04324384Courtesy of MAZDA MOTORS CORP.
