Low And Reverse Brake And One-Way Clutch Inner Race Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Perform the preinspection before disassembly.

    (See LOW AND REVERSE BRAKE PREINSPECTION .)

  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

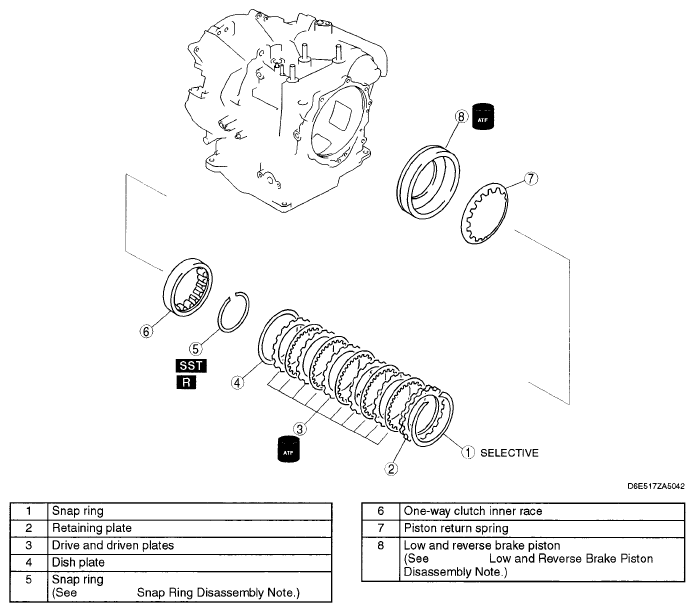

    Fig 1: Identifying Low And Reverse Brake And One-Way Clutch Inner Race Components
    G05118722Courtesy of MAZDA MOTORS CORP.
