Front Internal Gear One-Way Clutch No.1 Component Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Perform the preinspection before disassembly.

    (See FRONT INTERNAL GEAR AND ONE-WAY CLUTCH NO.1 COMPONENT .)

  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

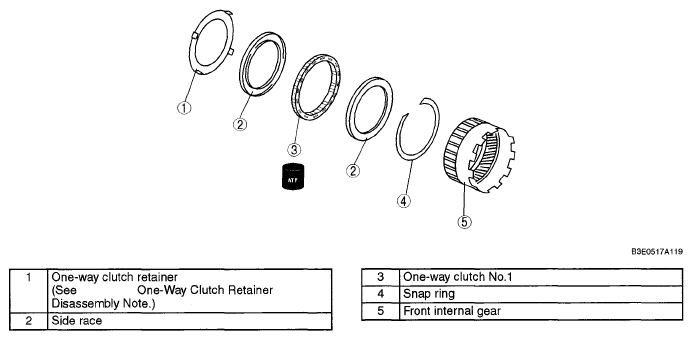

    Fig 1: Identifying Front Internal Gear One-Way Clutch No.1 Components
    G05118715Courtesy of MAZDA MOTORS CORP.
