Oil Pump Disassembly/Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Perform the preinspection before disassembly. (See OIL PUMP PREINSPECTION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

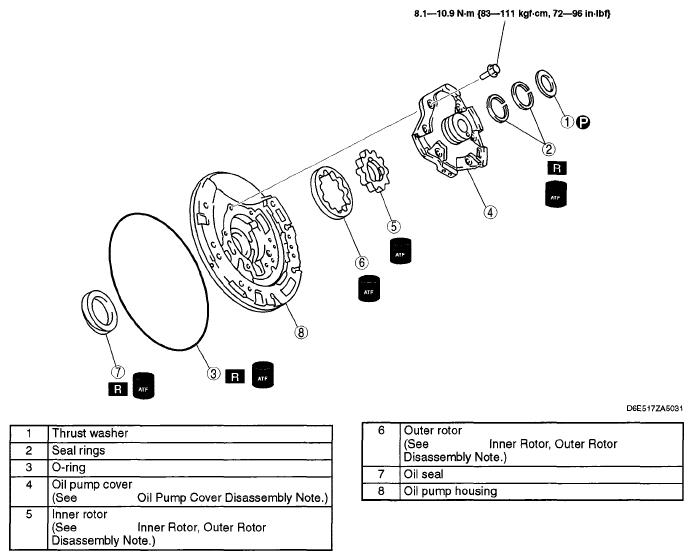

Fig 1: Exploded View Of Oil Pump Components
G05118667Courtesy of MAZDA MOTORS CORP.
