On-Vehicle Removal

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyes whenever using compressed air.
CAUTION:
  • Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents before removal.
  • If any old sealant gets into the transaxle during installation of the oil pan, trouble may occur in the transaxle case and oil pan. Clean with cleaning fluids.
  1. Disconnect the negative battery cable.
  2. Remove the battery and battery tray.
  3. Remove the bracket in the figure.

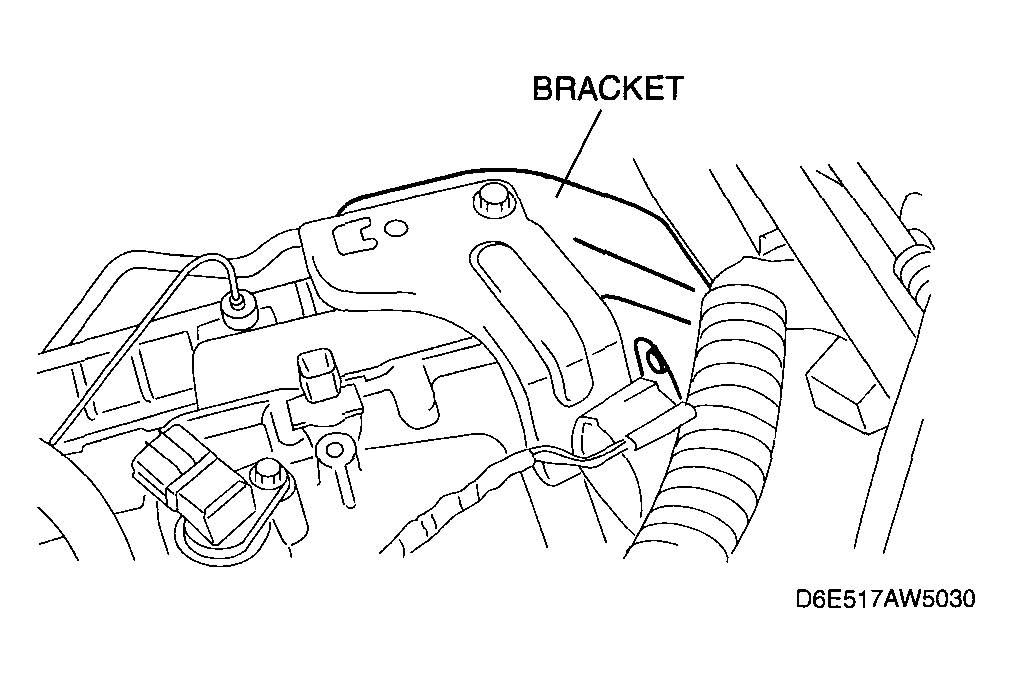

    4. Fig 1: Locating Bracket
    G04326309Courtesy of MAZDA MOTORS CORP.
  4. Drain the ATF into a separate suitable container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
  5. Remove the oil cover.
  6. Disconnect the solenoid connectors.

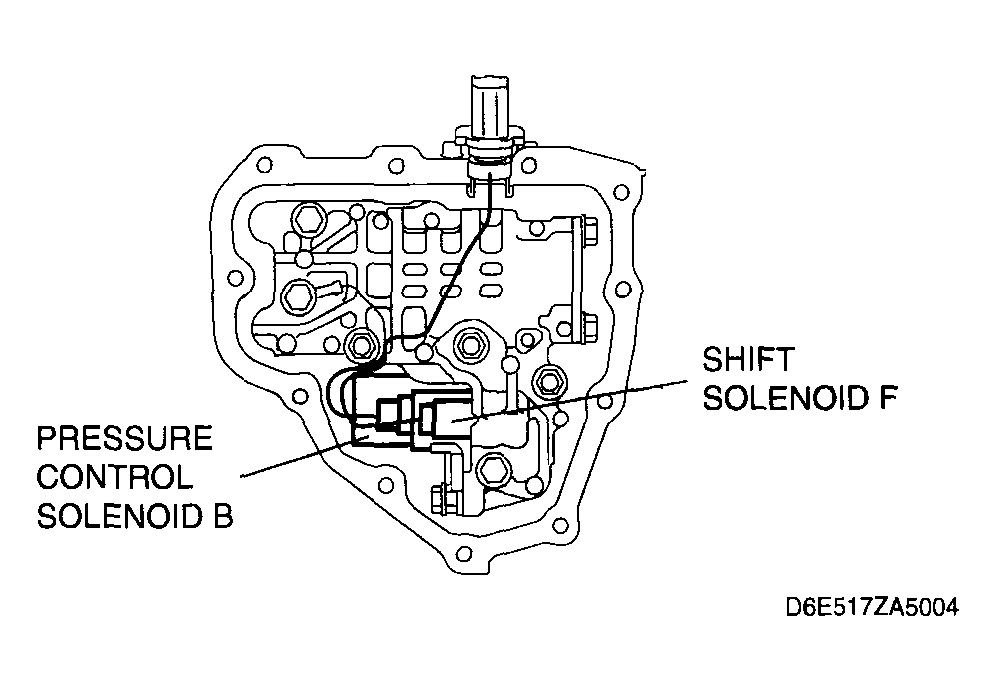

    Fig 2: Locating Pressure Control Solenoid "B" & Shift Solenoid "F"
    G04326310Courtesy of MAZDA MOTORS CORP.
  7. Remove the secondary control valve body installation bolts as shown, then remove the secondary control valve body component and ground as shown.

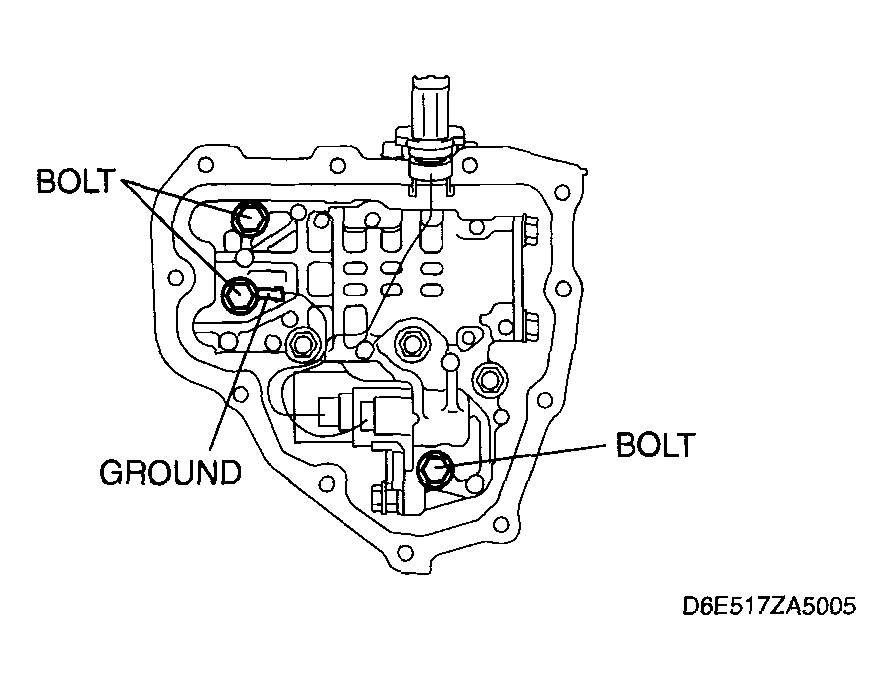

    Fig 3: Secondary Control Valve Body Bolts
    G04326311Courtesy of MAZDA MOTORS CORP.
  8. Remove the tubular pin and O-ring.

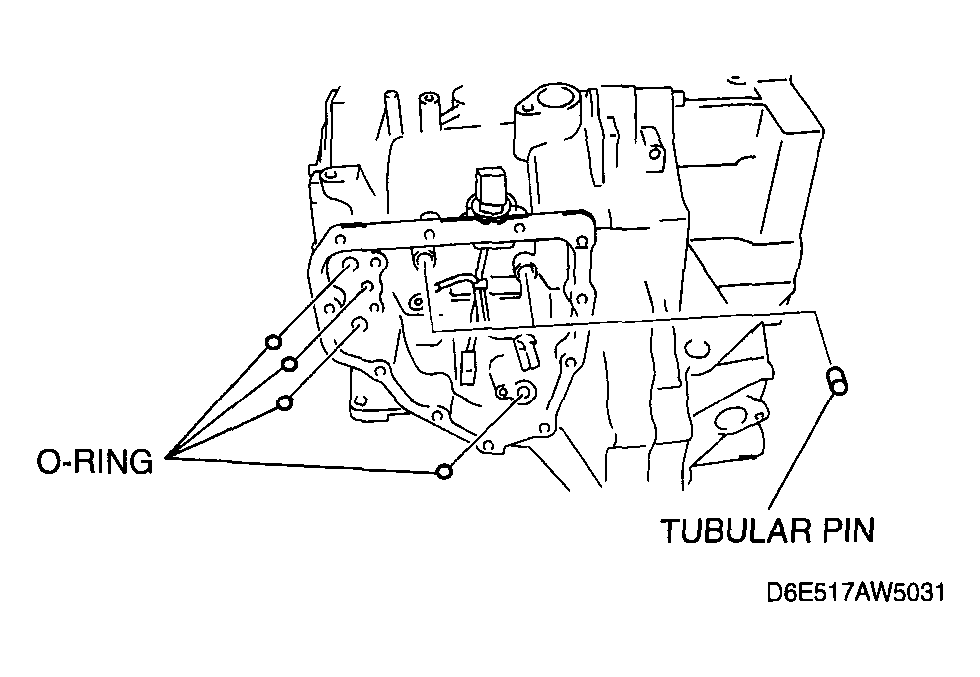

    Fig 4: Locating Tubular Pin & O-Rings
    G04326312Courtesy of MAZDA MOTORS CORP.
