On-Vehicle Installation

WARNING: This page is about a different variant/trim than selected.

Install the tubular pin and new O-ring to the transaxle case.

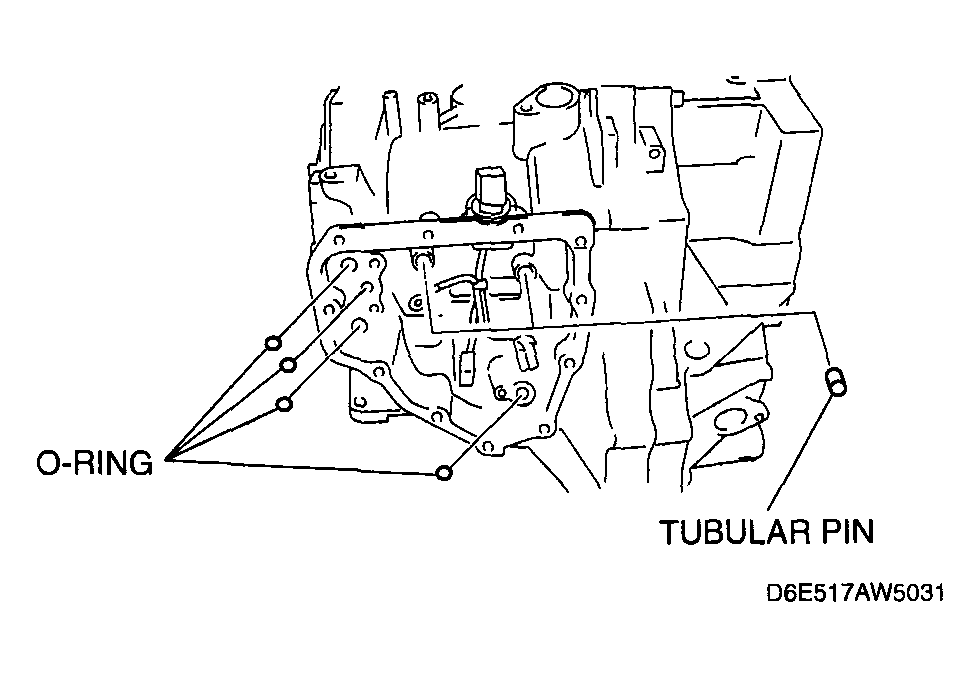

Fig 1: Tubular Pin & O-Rings
Courtesy of MAZDA MOTORS CORP.
Install the secondary control valve body component and ground.
Tightening torque

7.8-10.8 N.m

{80-110 kgf.cm, 70-95 in.lbf}

Bolt length (measured from below the head)

B: 40 mm {1.575 in}

C: 50 mm {1.967 in}

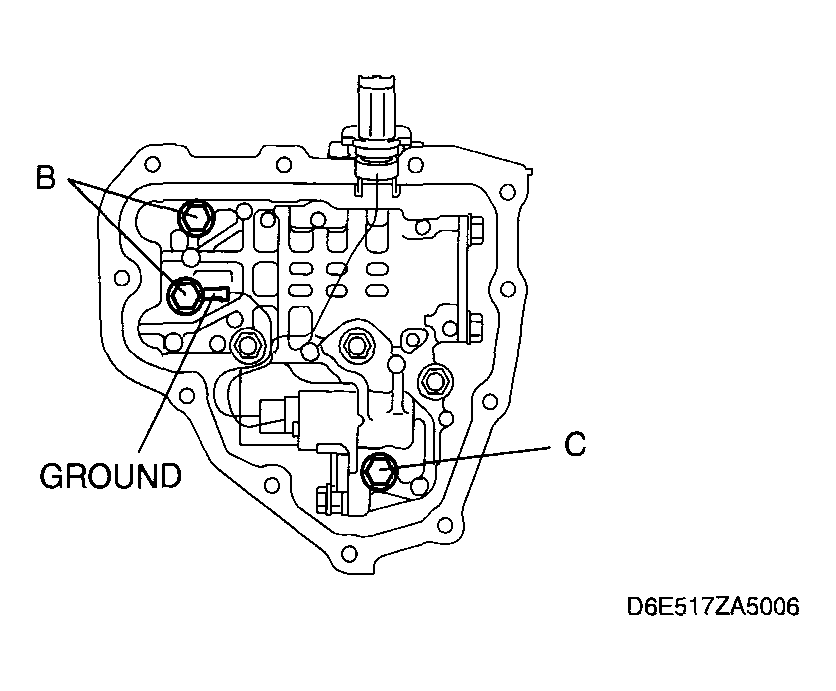

Fig 2: Identifying Secondary Control Valve Body Bolt Lengths
Courtesy of MAZDA MOTORS CORP.

Match the harness colors, then connect the solenoid connector.

SPRING AND COLOR OF CONNECTOR (HARNESS SIDE)

Spring	Color of connector (harness side)
Pressure control solenoid B	White
Shift solenoid F	Black

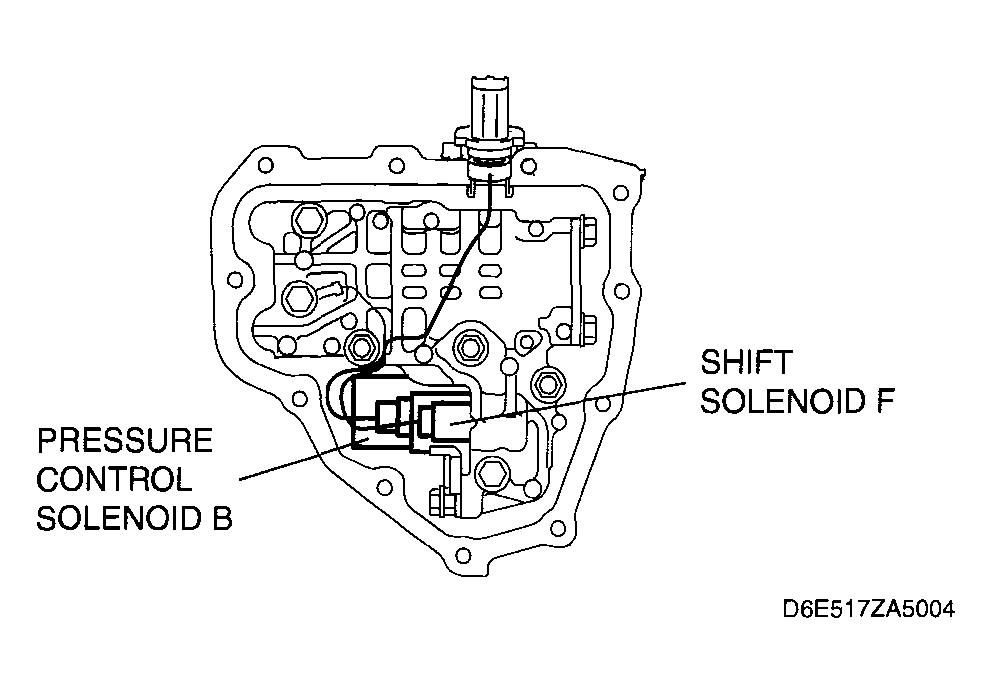

Fig 3: Pressure Control Solenoid "B" & Shift Solenoid "F"

Courtesy of MAZDA MOTORS CORP.

Apply a light coat of silicon sealant to the contact surfaces of the oil cover and transaxle case.

Fig 4: Applying Sealant To Oil Cover

Courtesy of MAZDA MOTORS CORP.

Install the oil cover.
Tightening torque

7.8-10.8 N.m {80-109 kgf.cm, 70-95 in.lbf}
Install the bracket in the figure.
Tightening torque

18-26 N.m {1.9-2.6 kgf.m, 14-19 ft.lbf}
Install the battery and battery tray.
Connect the negative battery cable.
Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST ).
Carry out the road test. (See ROAD TEST ).

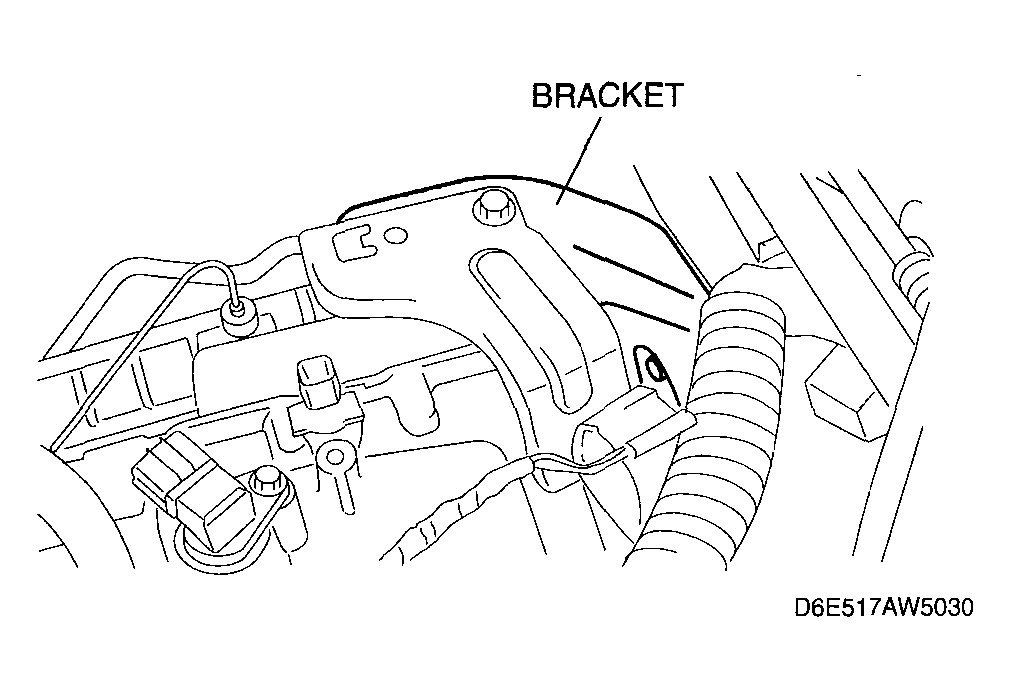

Fig 5: Installing Bracket
Courtesy of MAZDA MOTORS CORP.
