Oil Cooler Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Drain the ATF into a container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
  3. Remove the radiator. (See RADIATOR REMOVAL/INSTALLATION )
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
  7. Connect the negative battery cable.
  8. Inspect for oil leakage from the oil pipes and oil hoses.
  9. Inspect for coolant from the hoses.
  10. Inspect the ATF level and condition. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION ).
  11. Carry out the line pressure test. (See MECHANICAL SYSTEM TEST ).
  12. Carry out the road test. (See ROAD TEST ).

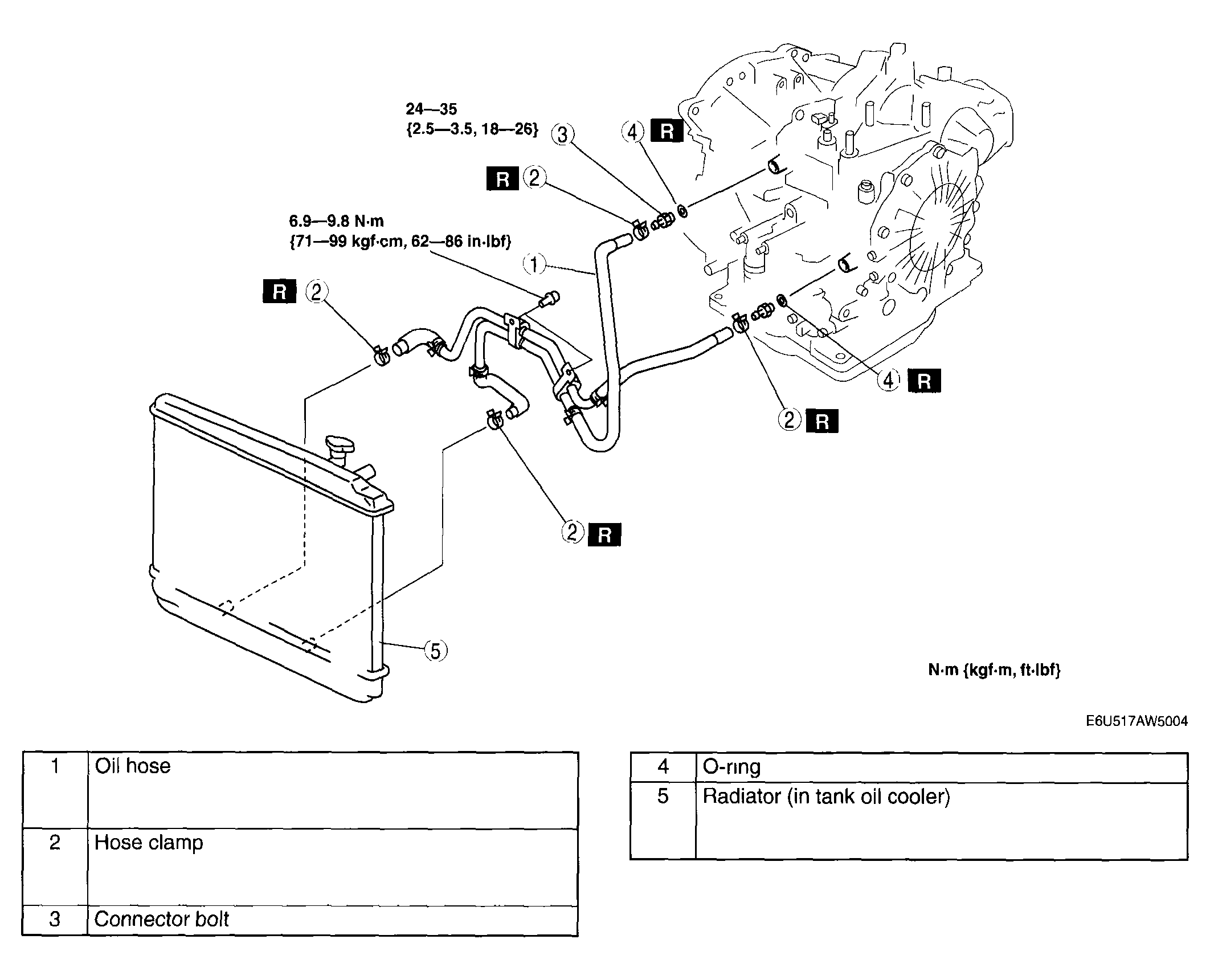

Fig 1: Oil Cooler Hoses & Torque Specification
G04326322Courtesy of MAZDA MOTORS CORP.
