Clutch Pedal Height Inspection

WARNING: This page is about a different variant/trim than selected.

Measure the distance from the upper surface of the pedal pad.
Clutch pedal height (Reference Value) 210-216 mm {8.27-8.50 in}
Adjust the height if necessary. (See CLUTCH PEDAL HEIGHT ).

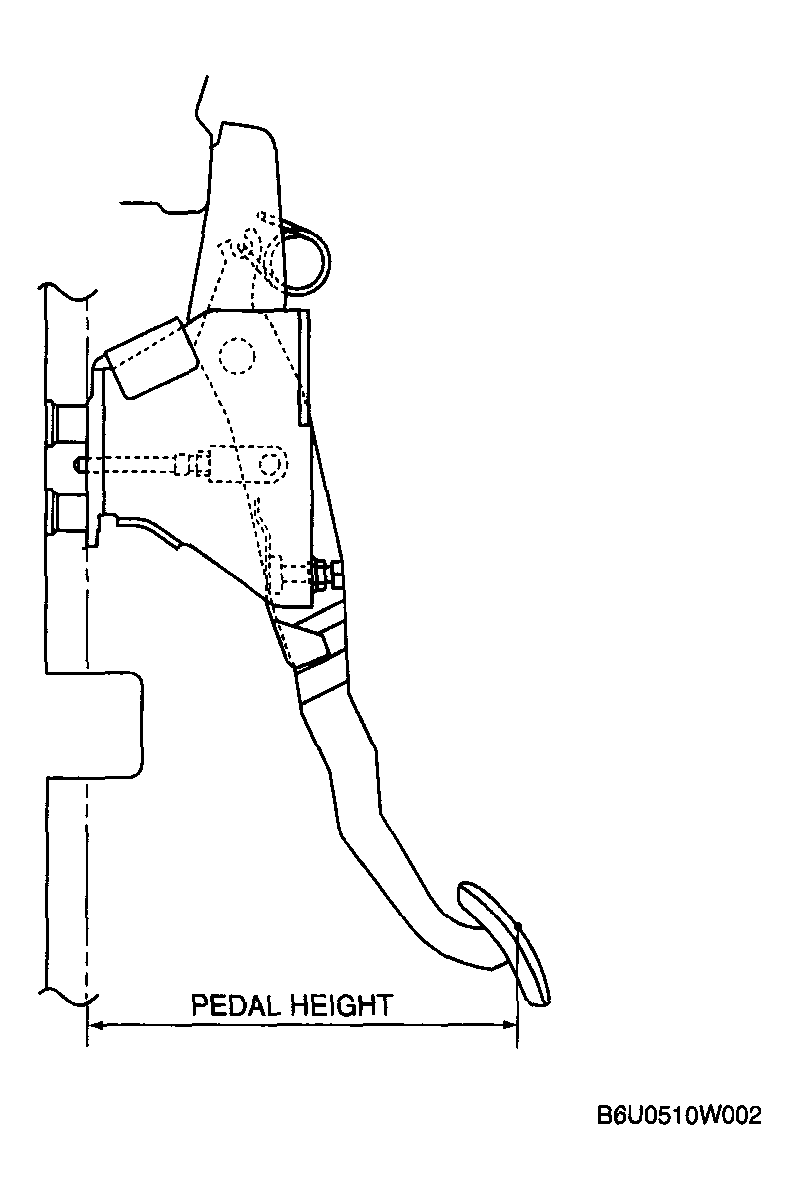

Fig 1: Measuring Distance From Upper Surface Of Pedal Pad
Courtesy of MAZDA MOTORS CORP.
