Clutch Pedal Height

WARNING: This page is about a different variant/trim than selected.

Measure the distance from the upper surface of the pedal pad.
- If not as specified, adjust the pedal height by turning adjustment bolt B and locknut A.
  Clutch pedal height (Reference Value)

  210-216 mm {8.27-8.50 in}

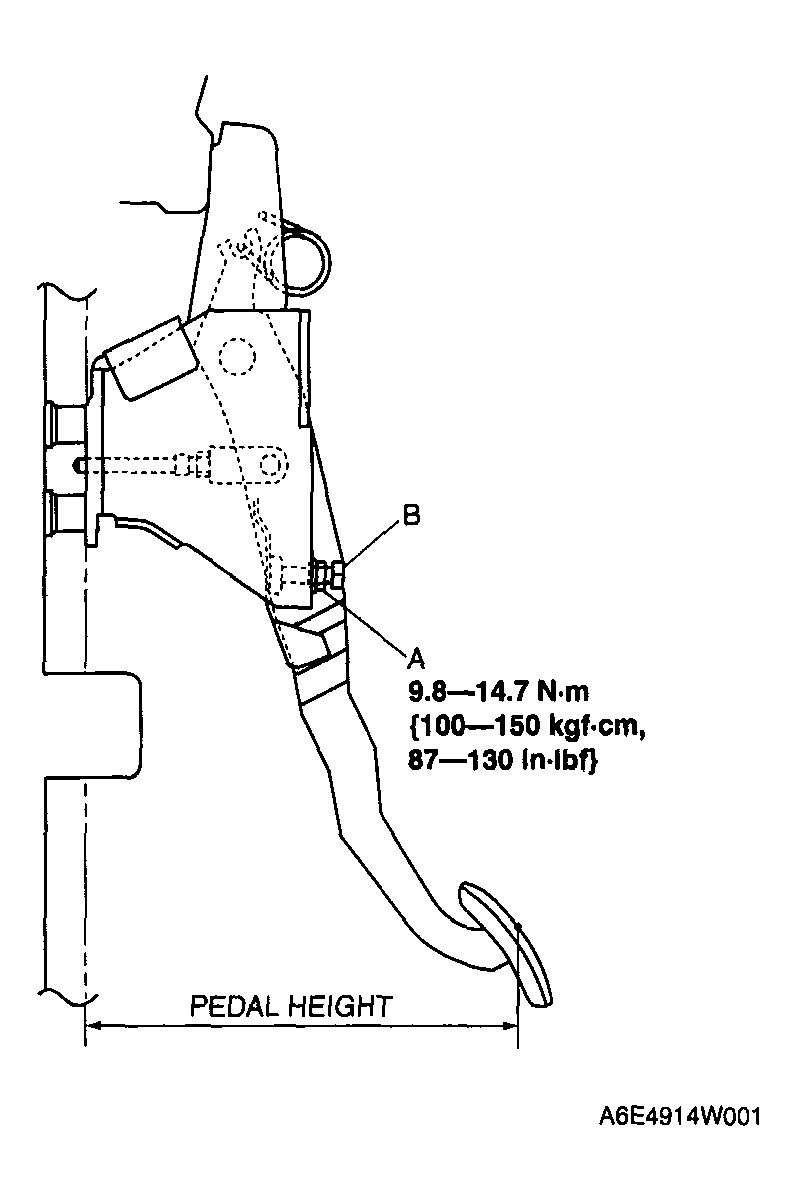

  Fig 1: Measuring Distance From Upper Surface Of Pedal Pad
  Courtesy of MAZDA MOTORS CORP.
