Turbocharger Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
  2. Disconnect the rear HO2S connector.
  3. Remove the front pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
    CAUTION:
    • When removing the cowl, a part or tool may hit the edge of the windshield and could damage it. Protect the windshield by covering it with a clean rag to prevent damage to the windshield.
  4. Remove the cowl and the insulator under the cowl. (See COWL GRILLE REMOVAL/INSTALLATION [L3 WITH TC] ).
  5. Remove the insulator (Exhaust manifold upper side). (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
  6. Set the generator out of the way. (See GENERATOR REMOVAL/INSTALLATION [L3 WITH TC] ).
  7. Remove the insulator (Exhaust manifold lower side). (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
  8. Disconnect the front HO2S connector.
  9. Remove the insulator (WU-TWC top side). (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
  10. Remove the vacuum hose (Brake master back side).
  11. Remove the oil pipes.

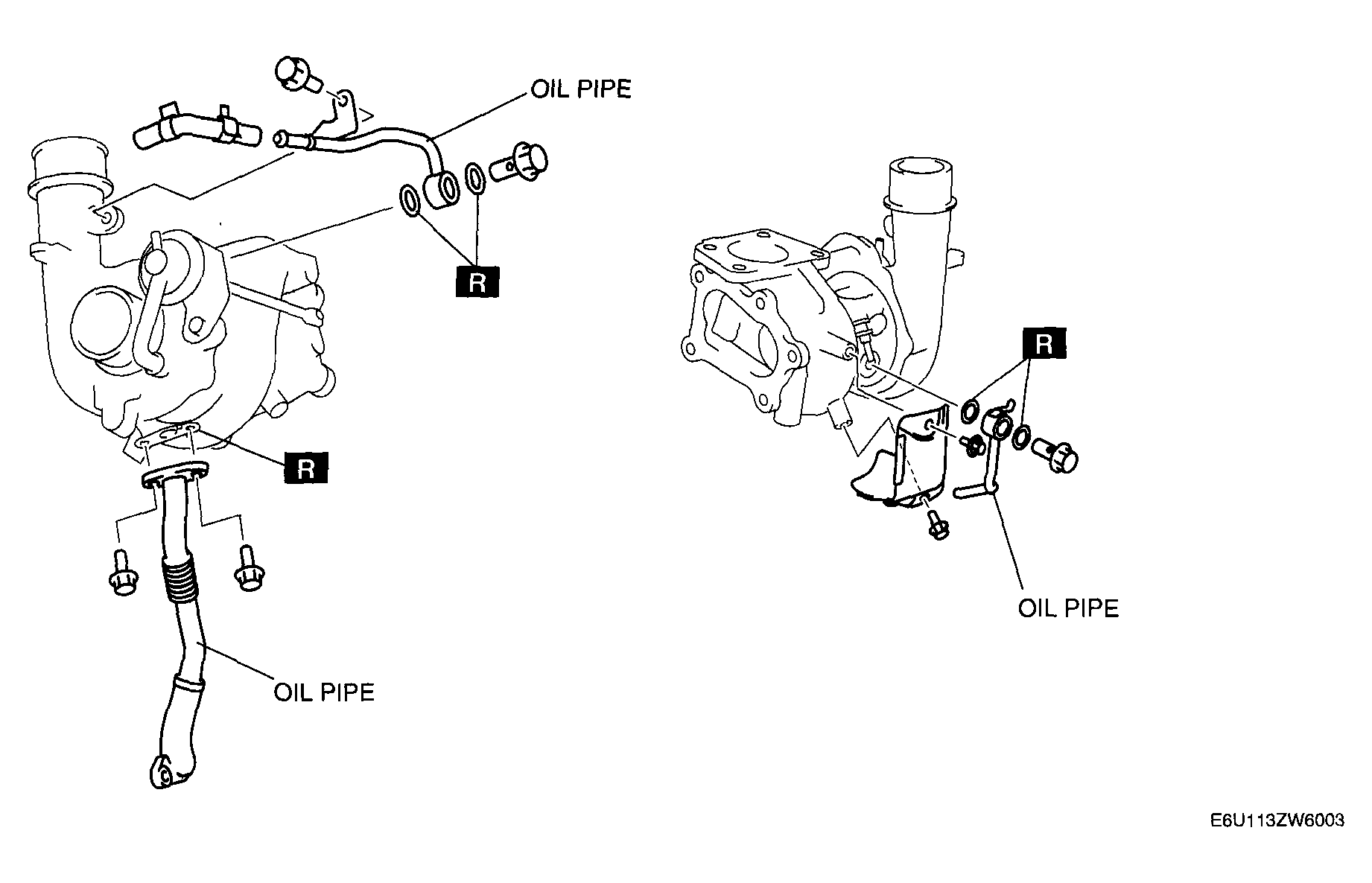

    Fig 1: Turbocharger Assembly
    G04324731Courtesy of MAZDA MOTORS CORP.
  12. Remove the front HO2S. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
  13. Remove the WU-TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
  14. Remove the turbocharger.
    Fig 2: WU-TWC & Torque Specification
    G04324732Courtesy of MAZDA MOTORS CORP.
