Intake Manifold Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the high pressure fuel pump bracket and the EGR pipe bracket.

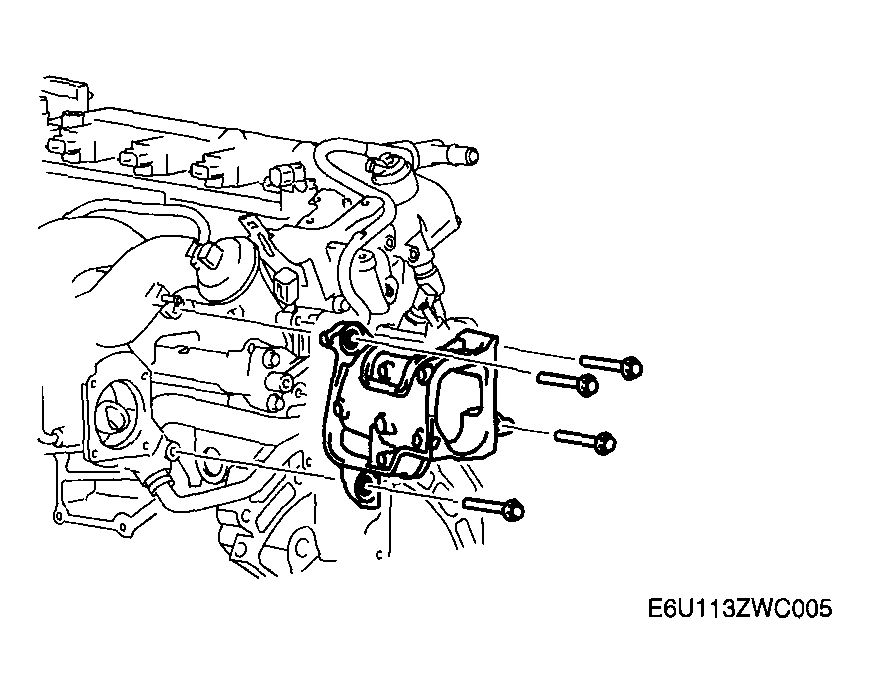

    2. Fig 1: High Pressure Fuel Pump Bracket & EGR Pipe Bracket
    G04324730Courtesy of MAZDA MOTORS CORP.
  2. Remove the fuel delivery pipe cover.
  3. Remove the oil level gauge pipe. (See OIL PAN REMOVAL/INSTALLATION ).
  4. Remove the drive belt. (See DRIVE BELT REPLACEMENT ).
  5. Set the power steering pump out of the way.
  6. Remove the vacuum hose.
  7. Remove the intake manifold.
