Cooling Fan Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- Disconnect the negative battery cable.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT ).
- Remove the air cleaner. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Remove the shroud panel. (See SHROUD PANEL REMOVAL/INSTALLATION ).

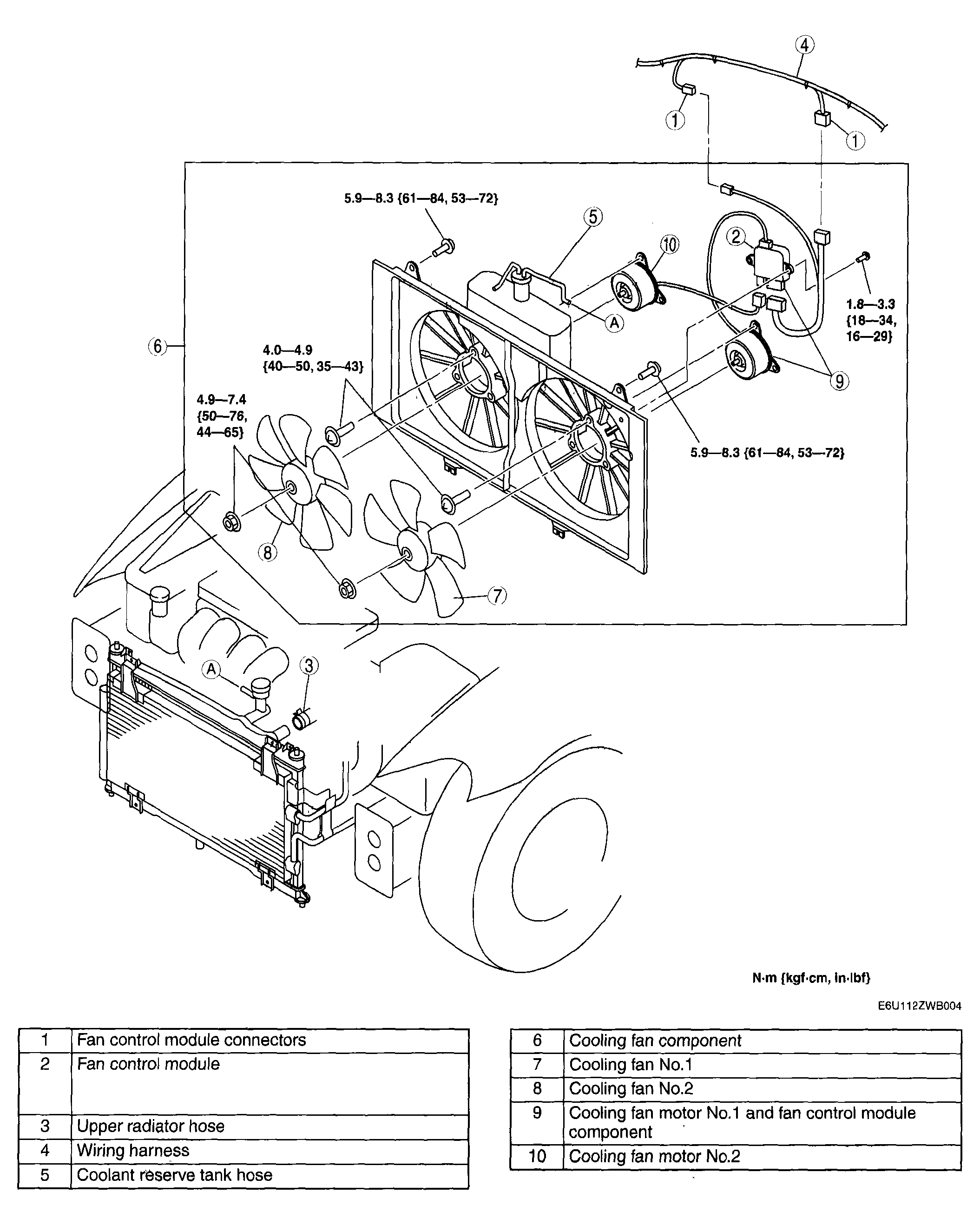

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT ).
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION ).
