Headlight Adjustment
- Adjust the tire air pressure to the specification.
- Position the unloaded vehicle on a flat, level surface.
- Seat one person in the driver's seat.
- Position the vehicle straight ahead and perpendicular to a wall.
- Set the headlights 3 m {10 ft}
from the white screen.
- While adjusting one headlight, mask the other.
- Start the engine to charge the battery.
- Turn on the lower-beam headlight.
Courtesy of MAZDA MOTORS CORP.

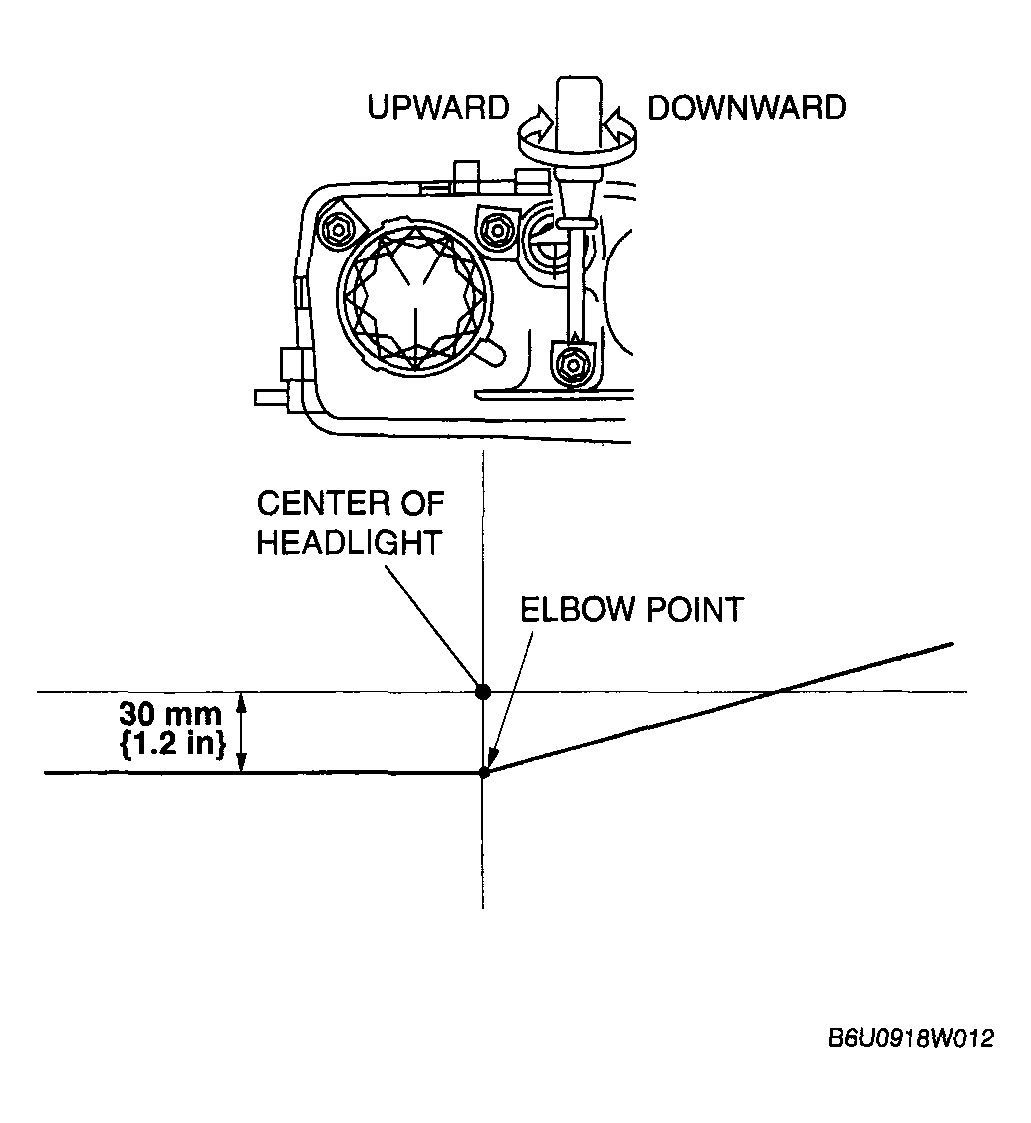

- Adjust the headlights as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
