Clutch Master Cylinder Removal/Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

When replacing clutch master cylinder, remove tubing from vehicle for bench bleeding procedure.

Raise and support the vehicle.

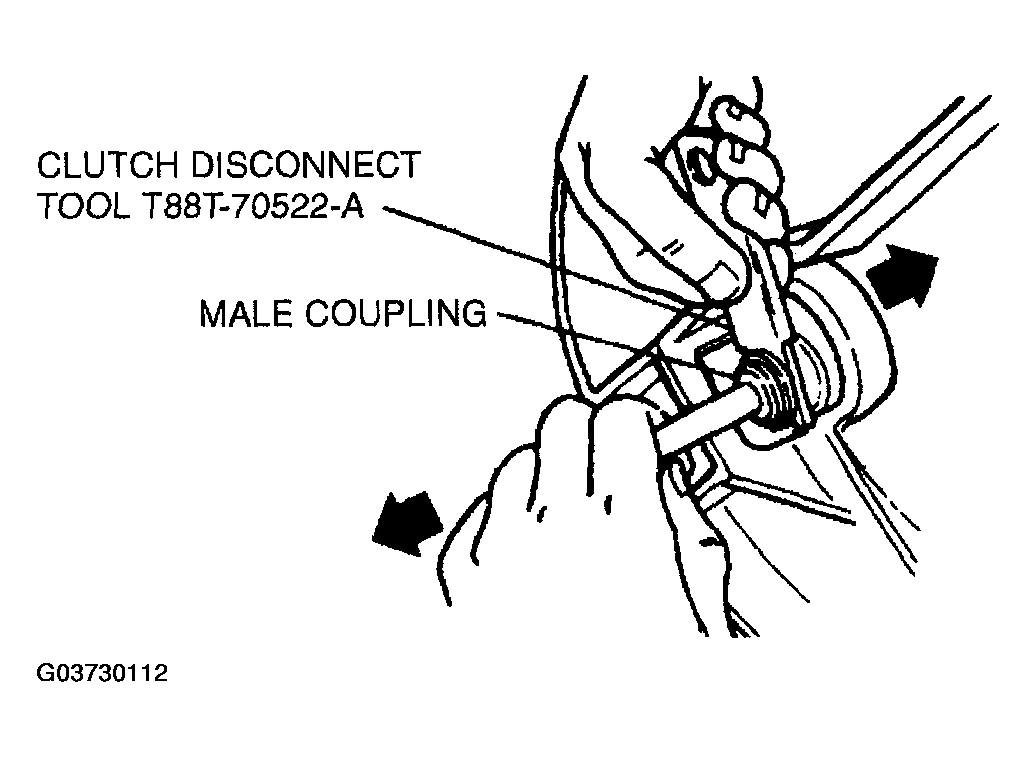

Disconnect the clutch hydraulic line from the transmission using the SST .

Fig 1: Disconnecting Clutch Hydraulic Line From Transmission
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.

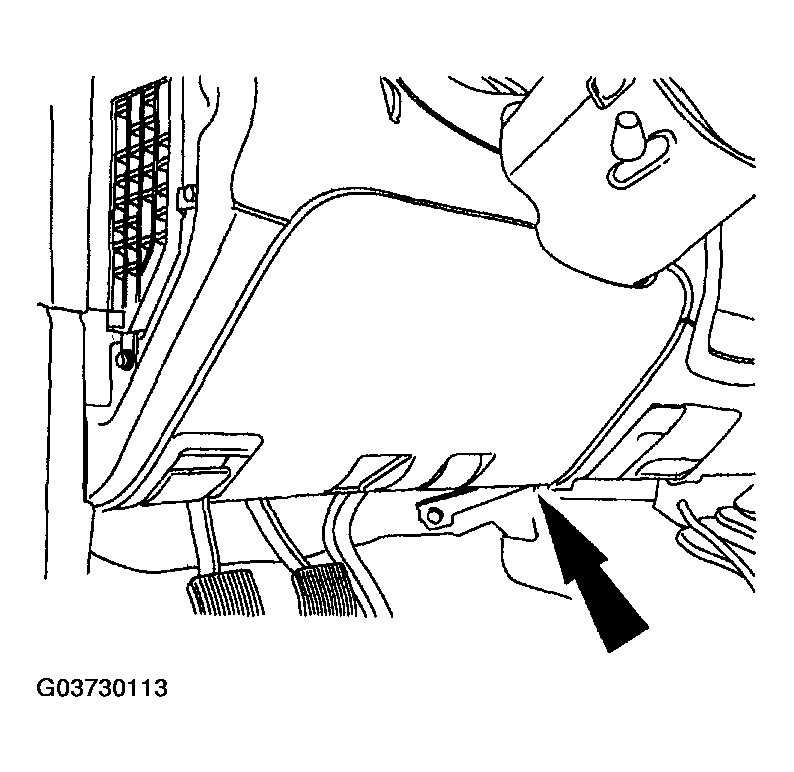

Remove the two screws and the lower steering column finish panel.

Fig 2: Removing Lower Steering Column Finish Panel
Courtesy of MAZDA MOTORS CORP.

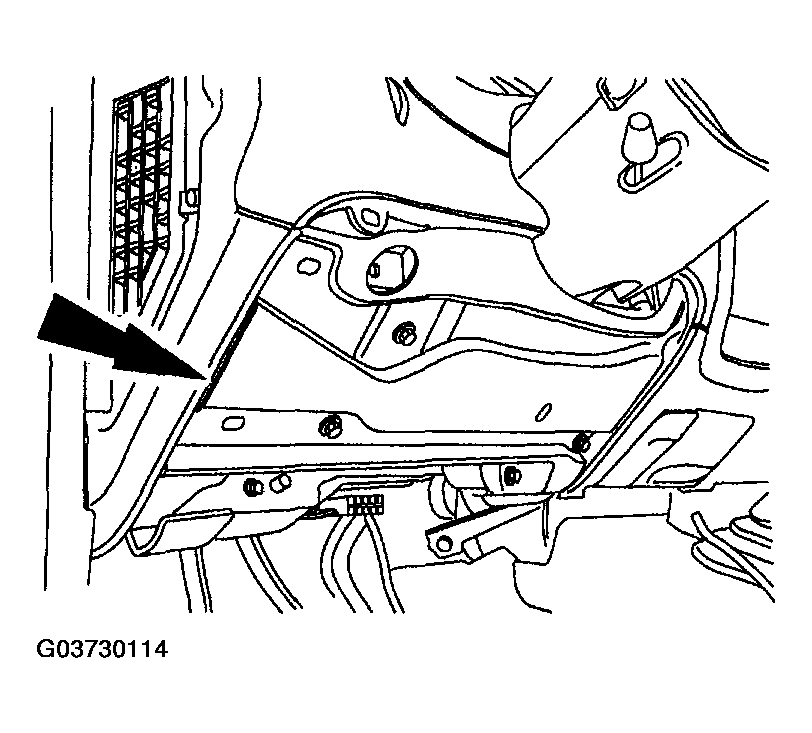

Remove the five bolts and the lower reinforcement panel.

Fig 3: Removing Lower Reinforcement Panel
Courtesy of MAZDA MOTORS CORP.

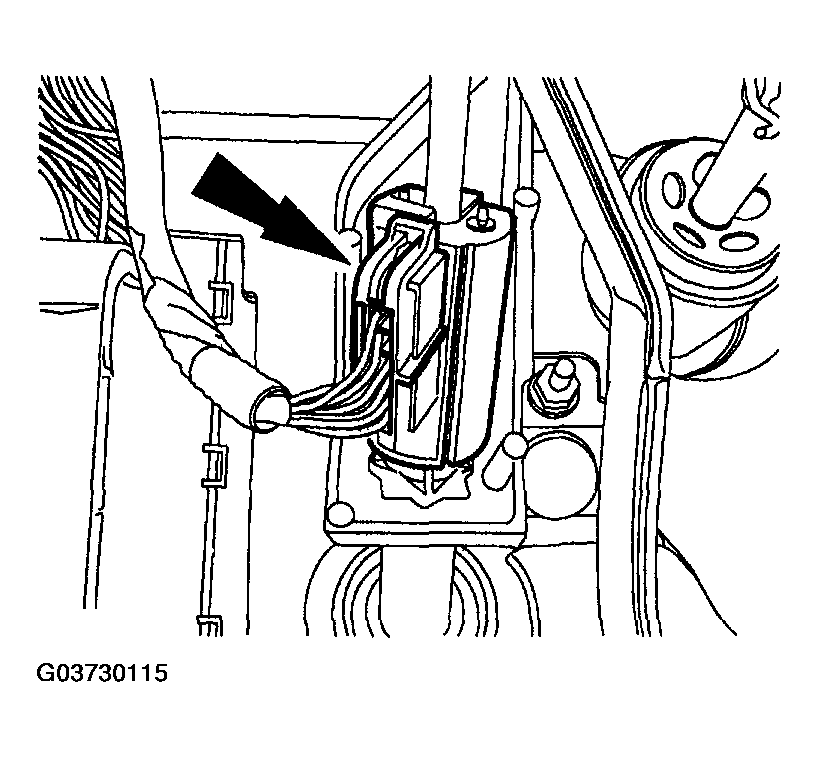

Disconnect the clutch pedal position (CPP) switch electrical connector.

Fig 4: Disconnecting Clutch Pedal Position (CPP) Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.

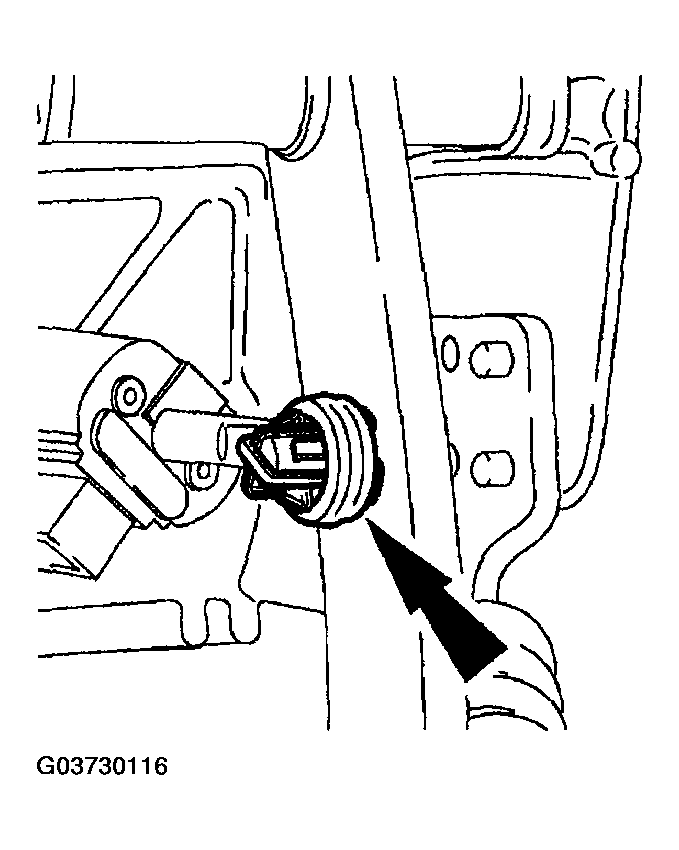

Disconnect the clutch master cylinder push rod from the clutch pedal arm.

Fig 5: Disconnecting Clutch Master Cylinder Push Rod From Clutch Pedal Arm
Courtesy of MAZDA MOTORS CORP.
Remove the CPP switch.

Fig 6: Removing CPP Switch
Courtesy of MAZDA MOTORS CORP.

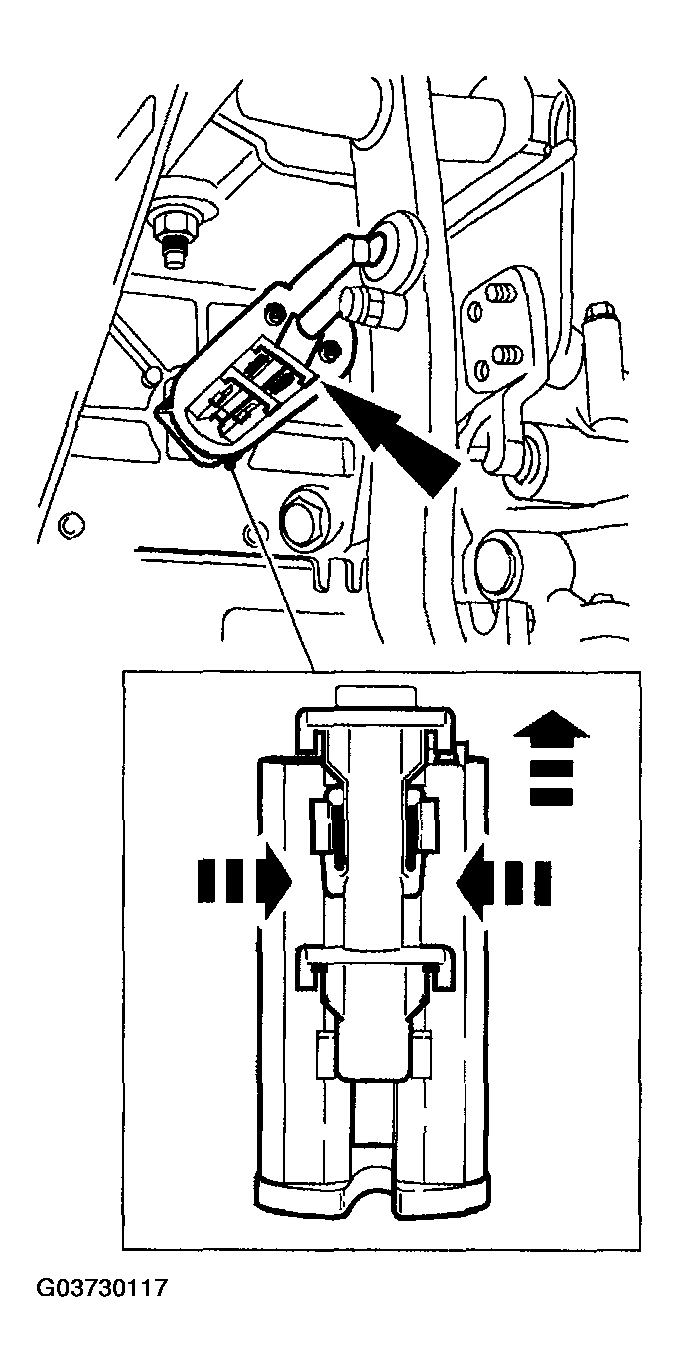

1. Pinch the lock tabs and pull the clip forward.
2. Rotate and snap the CPP switch from the clutch master cylinder rod.

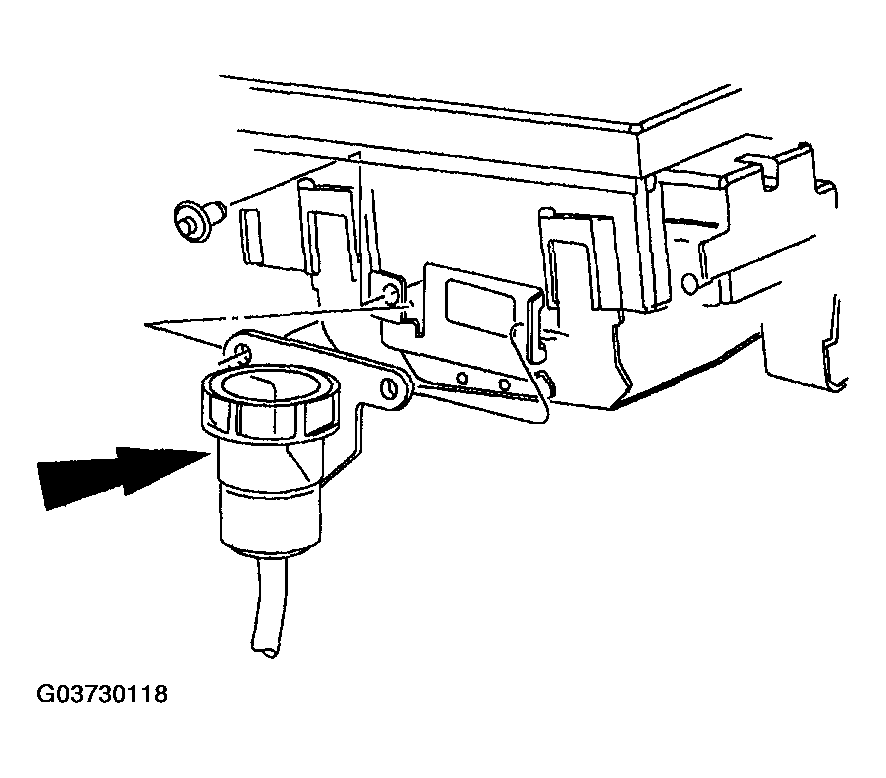

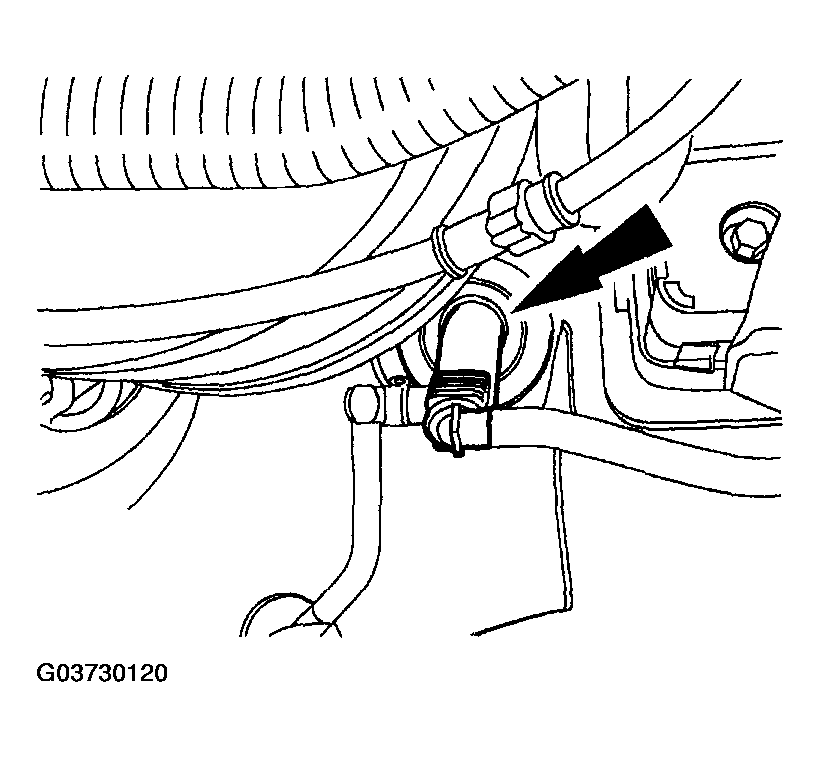

Remove the reservoir.

Fig 7: Removing Reservoir
Courtesy of MAZDA MOTORS CORP.

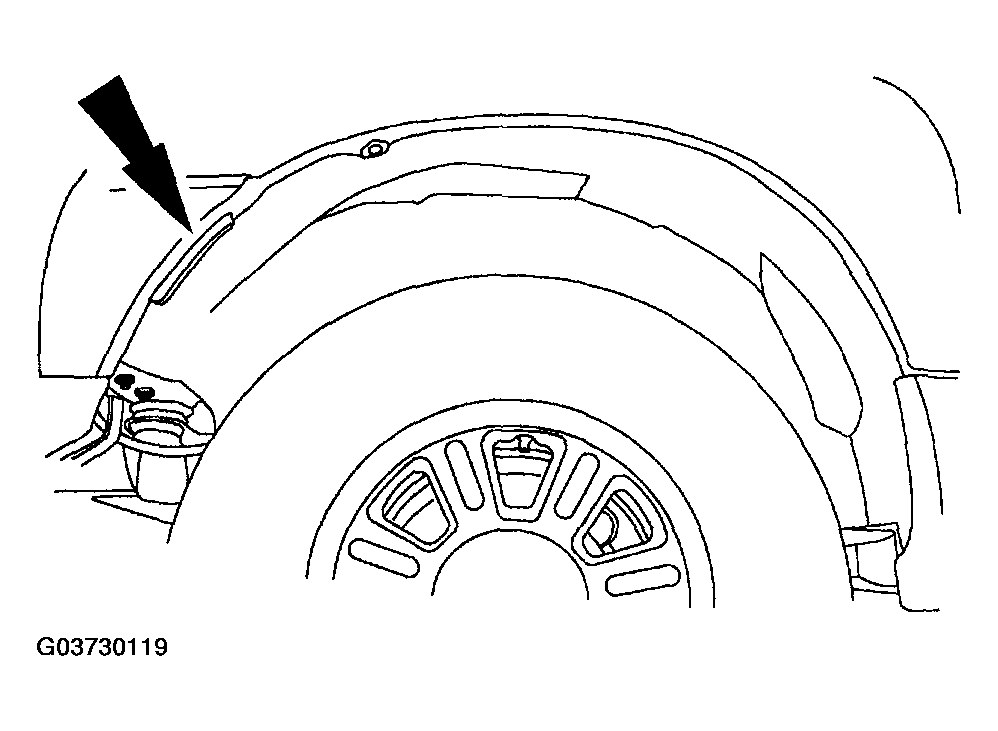

Remove the three pushpins, four bolts, four screws and the inner fender splash shield.

Fig 8: Removing Inner Fender Splash Shield
Courtesy of MAZDA MOTORS CORP.
Unclip the hydraulic line-to-frame retainer.
CAUTION:
- Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface wash the surface with water immediately.
Unlock and remove the clutch master cylinder assembly.
1. Rotate the master cylinder 45 degrees clock-wise to unlock it from the support bracket.

  Fig 9: Removing Clutch Master Cylinder Assembly
  Courtesy of MAZDA MOTORS CORP.
Remove the reservoir, the hydraulic line and the clutch master cylinder as an assembly.
CAUTION:
- Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface wash the surface with water immediately.
To install, reverse the removal procedure.
1. Bleed the clutch system; See CLUTCH BLEED PROCEDURE - ON-VEHICLE .
