Fan Shroud Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet tube.
Using the special tools, remove the fan blade.

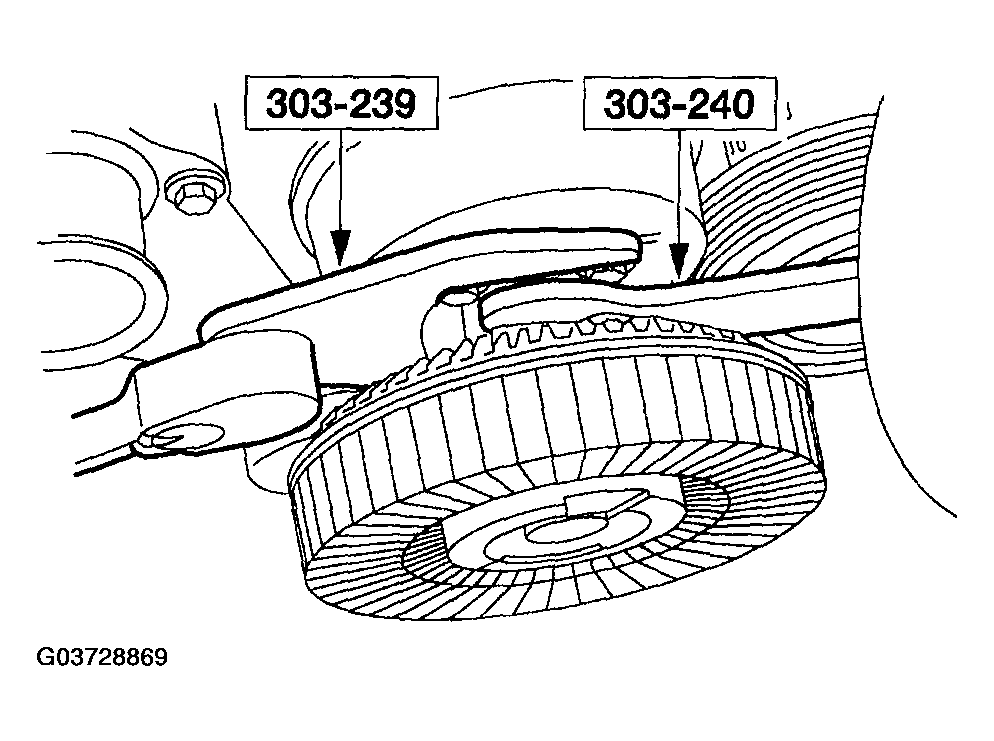

Fig 1: Removing Fan Blade Using Special Tools
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

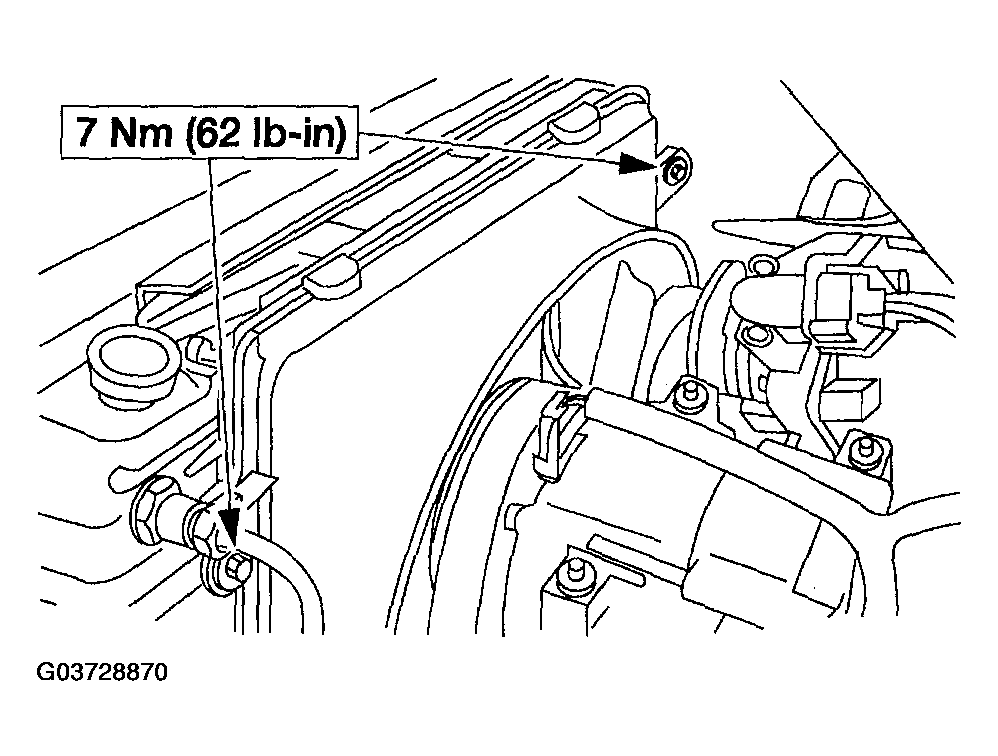

Fig 2: Removing Fan Shroud Bolts - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Lift the fan shroud out of the lower retaining clips.

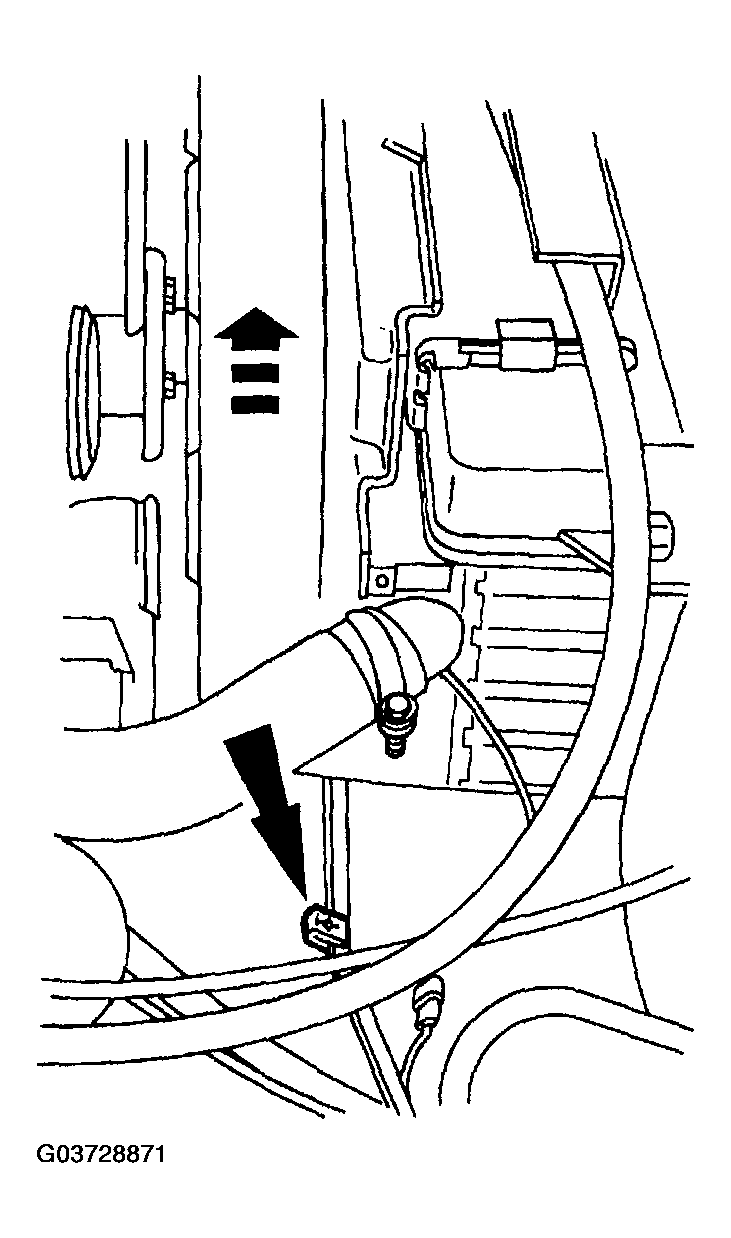

Fig 3: Lifting Fan Shroud Out Of Lower Retaining Clips
Courtesy of MAZDA MOTORS CORP.
Lift the fan shroud and the fan blade and clutch assembly together from the vehicle.
To install, reverse the removal procedure.
