Radiator Removal/Installation - 2.3L: Removal

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L .
Remove the plastic cap from the top of the radiator channel.

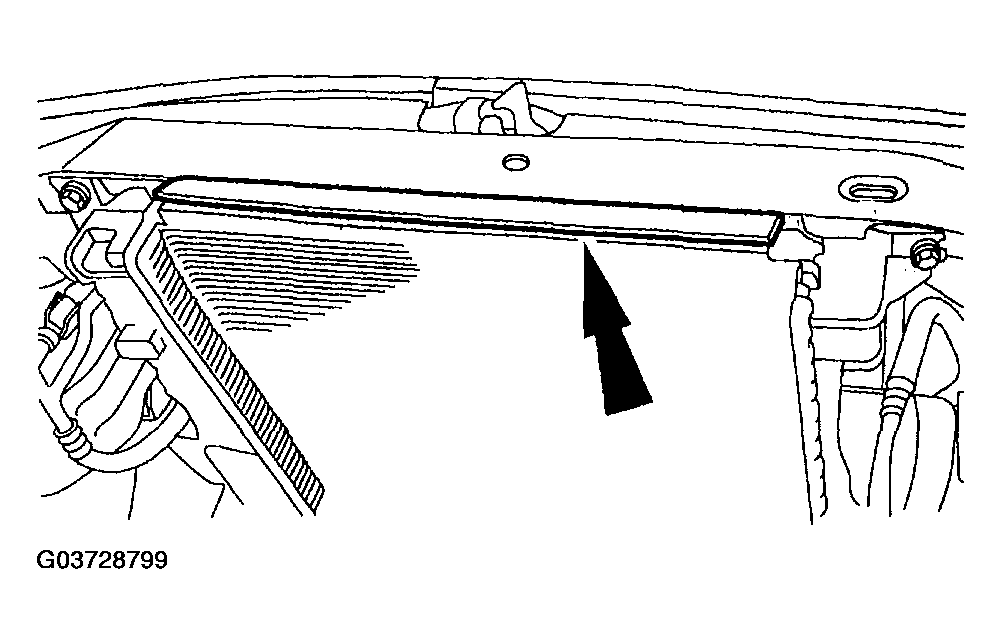

Fig 1: Removing Plastic Cap From Top Of Radiator Channel
Courtesy of MAZDA MOTORS CORP.
Disconnect the coolant overflow hose from the radiator, position the hose away from the radiator.

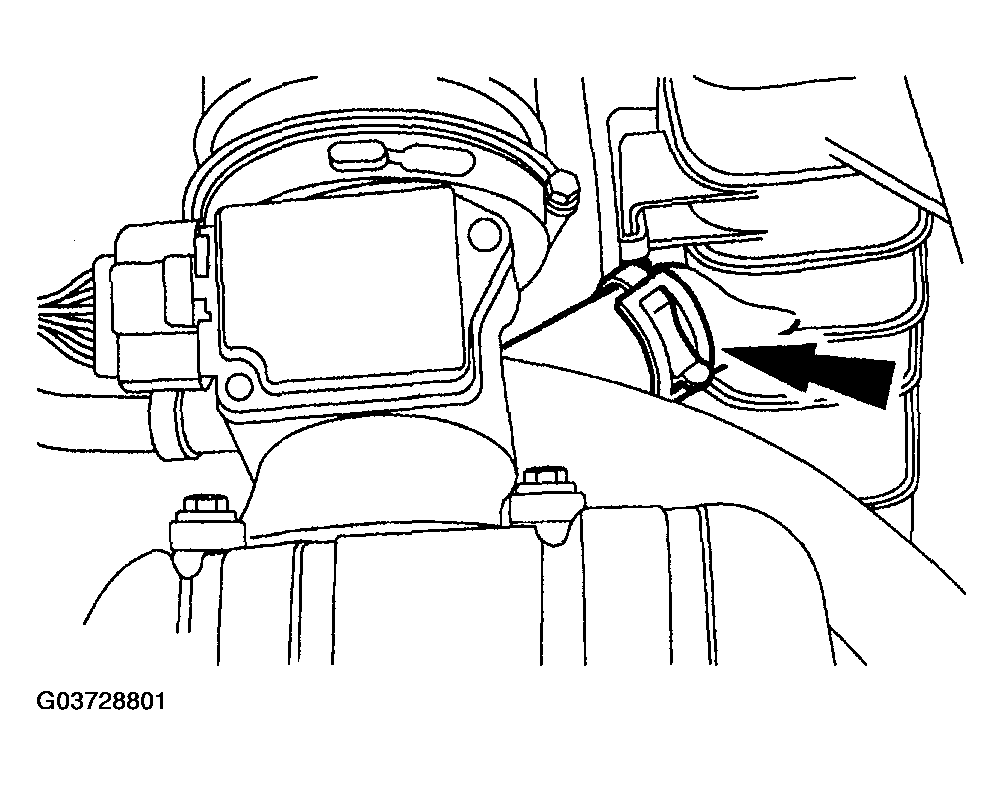

Fig 2: Disconnecting Coolant Overflow Hose From Radiator
Courtesy of MAZDA MOTORS CORP.
Disconnect the upper radiator hose.

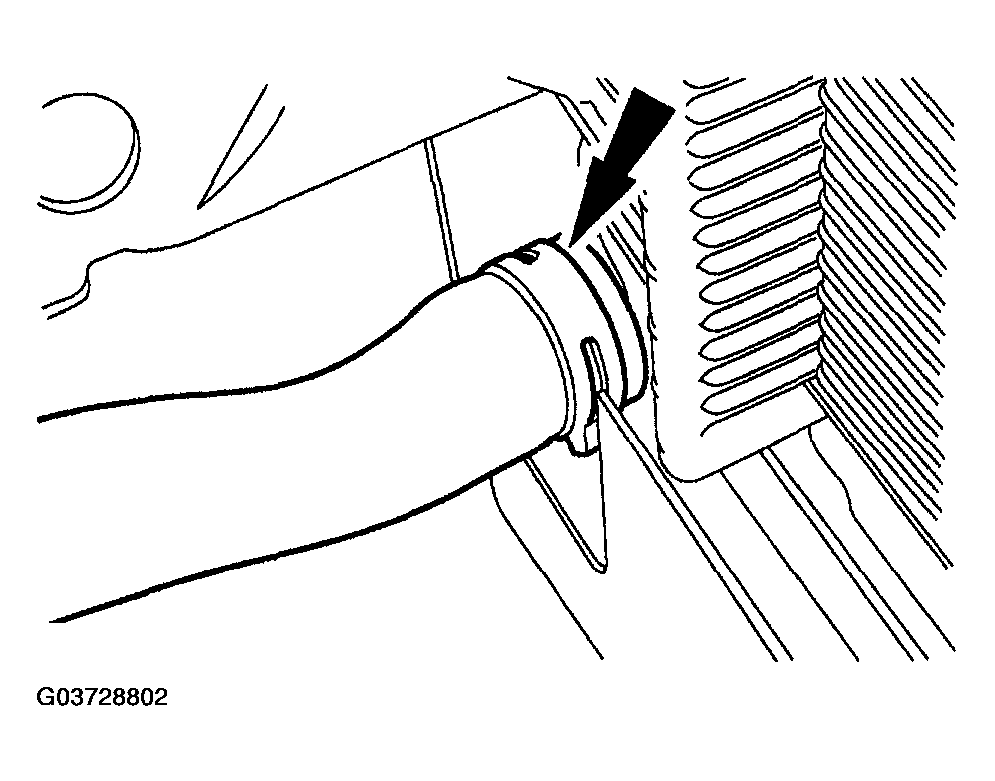

Fig 3: Disconnecting Upper Radiator Hose
Courtesy of MAZDA MOTORS CORP.
Remove the cooling fan and shroud. See ELECTRIC COOLING FAN REMOVAL/INSTALLATION - 2.3L .
Disconnect the lower radiator hose.

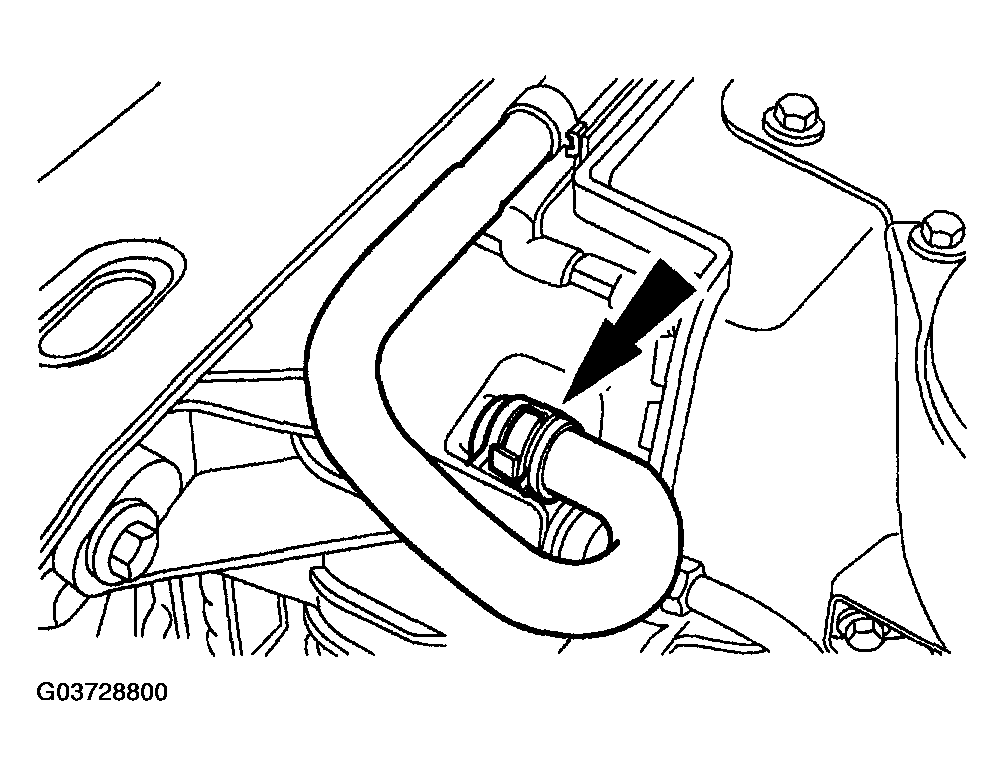

Fig 4: Disconnecting Lower Radiator Hose
Courtesy of MAZDA MOTORS CORP.
Remove the bolts, tilt the radiator back and lift it directly upward.

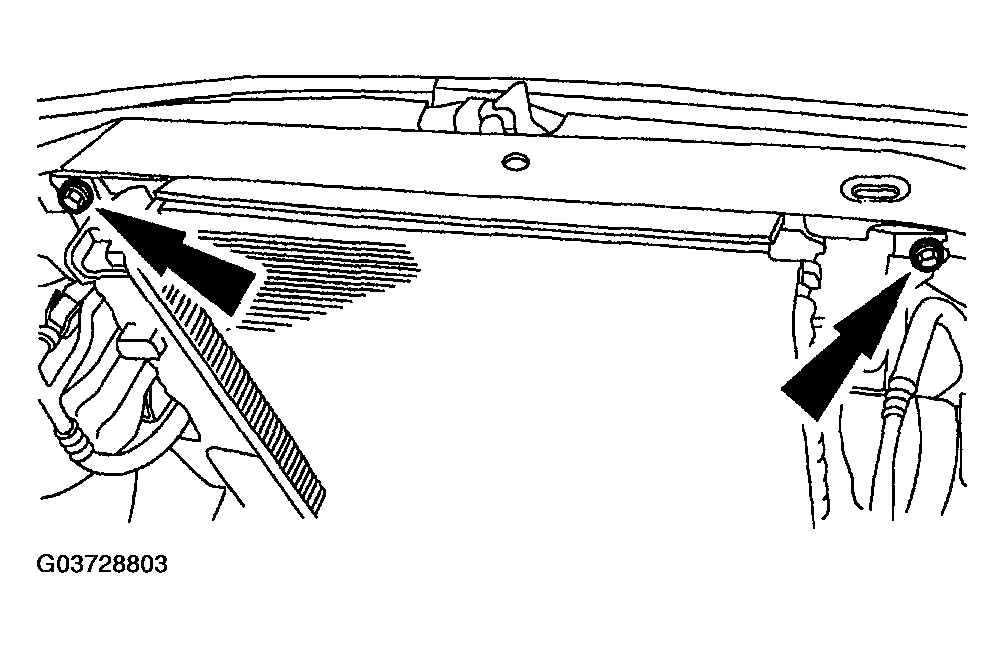

Fig 5: Removing Radiator Bolts
Courtesy of MAZDA MOTORS CORP.
