Electric Cooling Fan Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The fan shroud and electric cooling fan are serviced as an assembly.

Disconnect the negative battery cable.
Remove the engine air cleaner. See ENGINE AIR CLEANER REMOVAL/INSTALLATION - 2.3L .

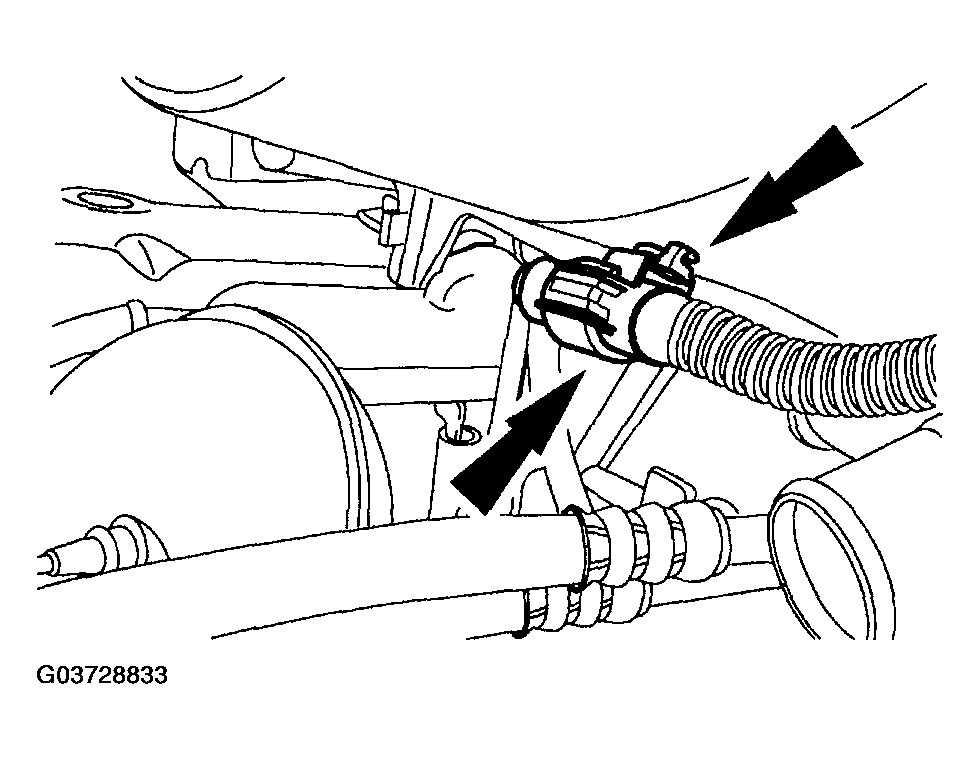

Fig 1: Disconnecting Electric Cooling Fan Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the electric cooling fan electrical connector.

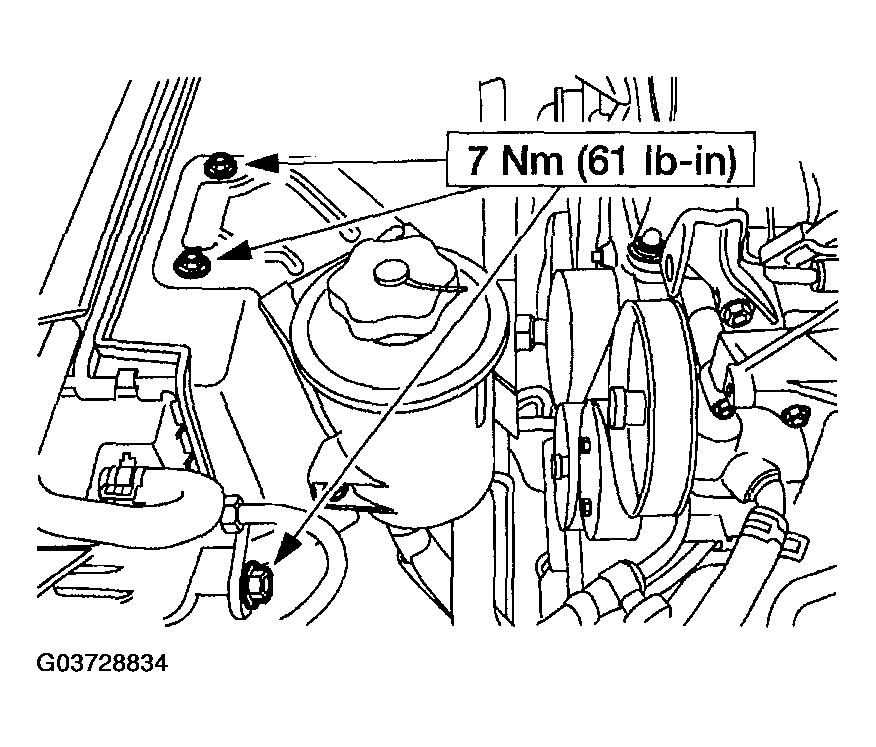

Fig 2: Removing Power Steering Reservoir Bolts - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and position the power steering reservoir out of the way.

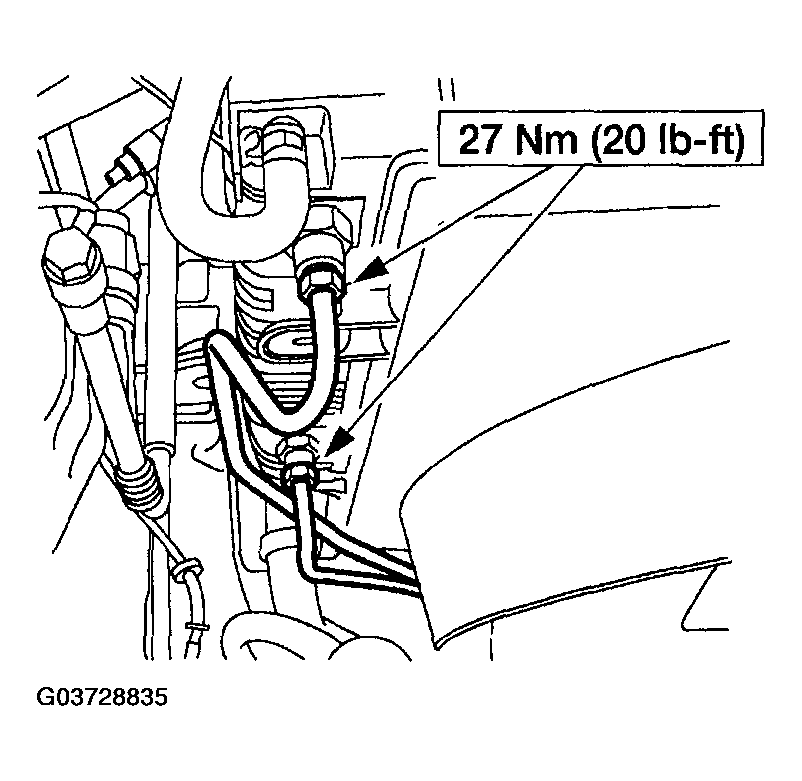

Fig 3: Removing Transmission Cooling Tube Bolt - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
For vehicles equipped with an automatic transmission, disconnect the transmission cooling tube from the radiator.

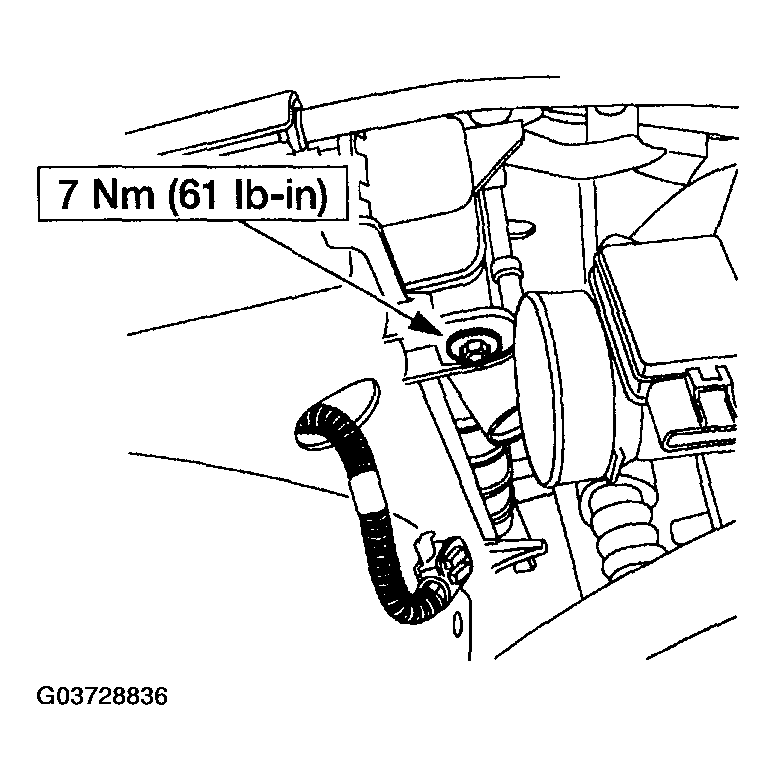

Fig 4: Removing Right Side Cooling Fan Shroud Mounting Bolt - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the right side cooling fan shroud mounting bolt and lift the shroud and electric cooling fan assembly from the vehicle.
To install, reverse the removal procedure.
