Radiator Removal/Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Position the radiator into the engine compartment and install the bolts.

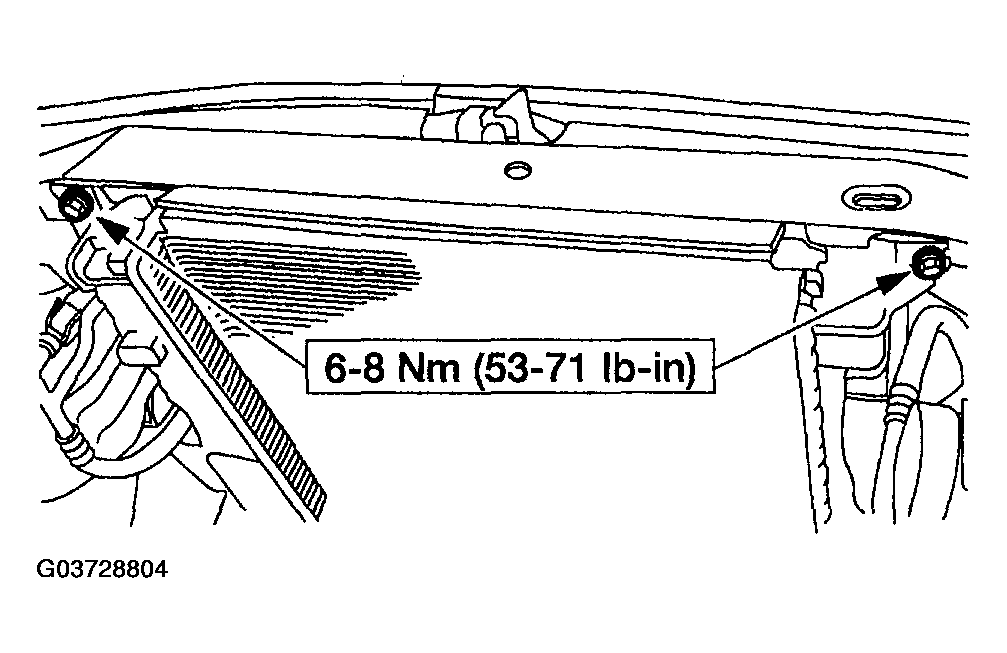

Fig 1: Installing Radiator Bolts - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Reinstall the constant tension clamp in the same position from which it was removed.
Install the lower radiator hose to the radiator.

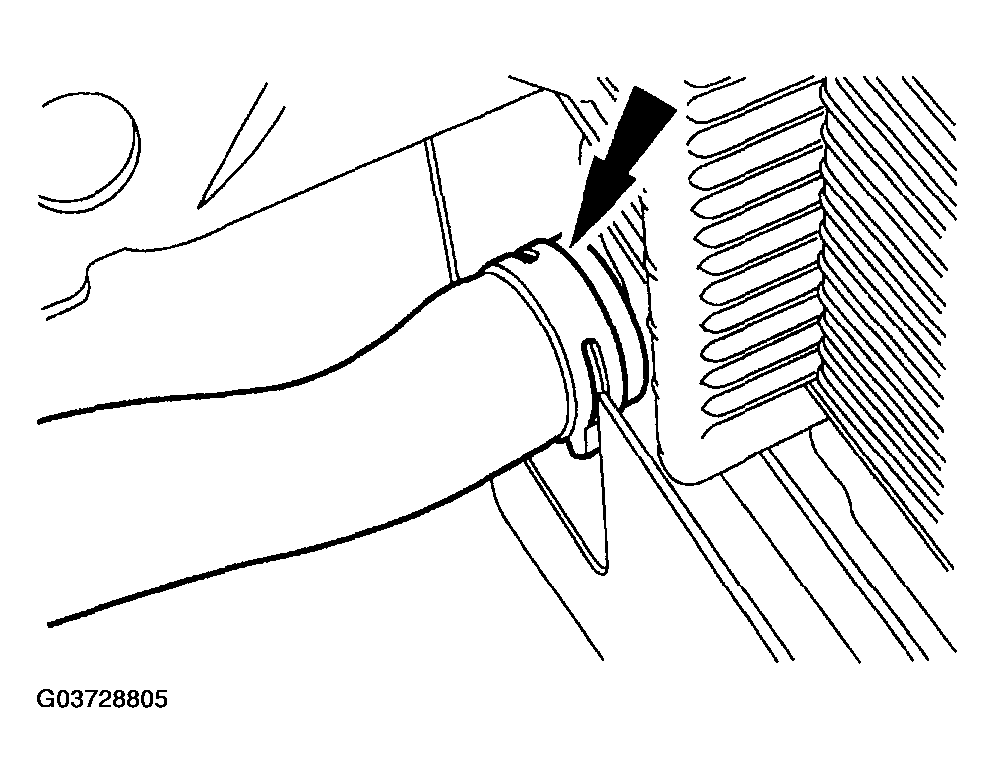

Fig 2: Installing Lower Radiator Hose To Radiator
Courtesy of MAZDA MOTORS CORP.
Install the cooling fan and shroud. See ELECTRIC COOLING FAN REMOVAL/INSTALLATION - 2.3L .
NOTE:
- Reinstall the constant tension clamp in the same position from which it was removed.
Install the upper radiator hose to the radiator.

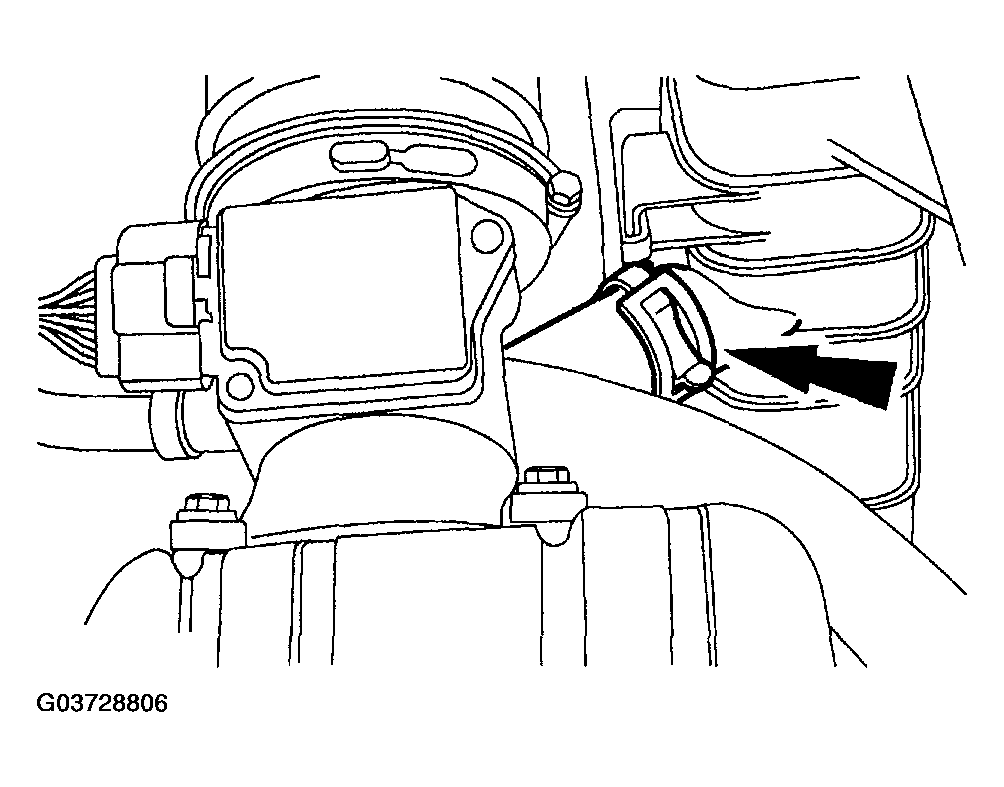

Fig 3: Installing Upper Radiator Hose To Radiator
Courtesy of MAZDA MOTORS CORP.
Position the coolant overflow hose in the channel on top of the radiator, then connect the hose to the radiator.

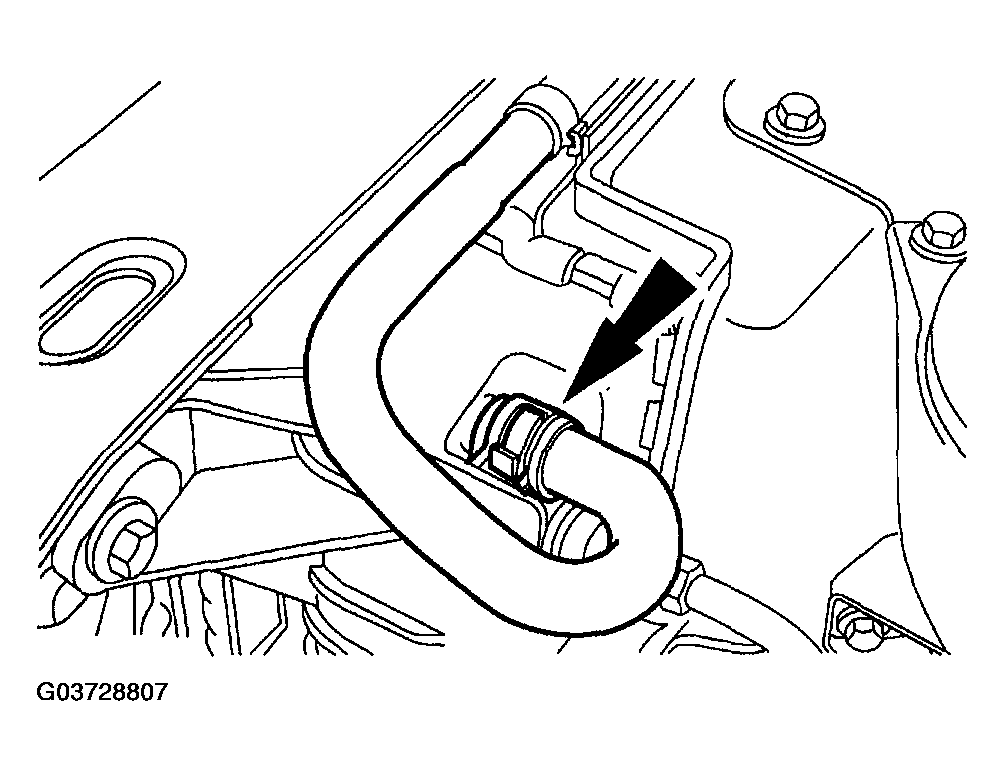

Fig 4: Connecting Coolant Overflow Hose To Radiator
Courtesy of MAZDA MOTORS CORP.
Install the plastic cap on the top of the radiator channel.

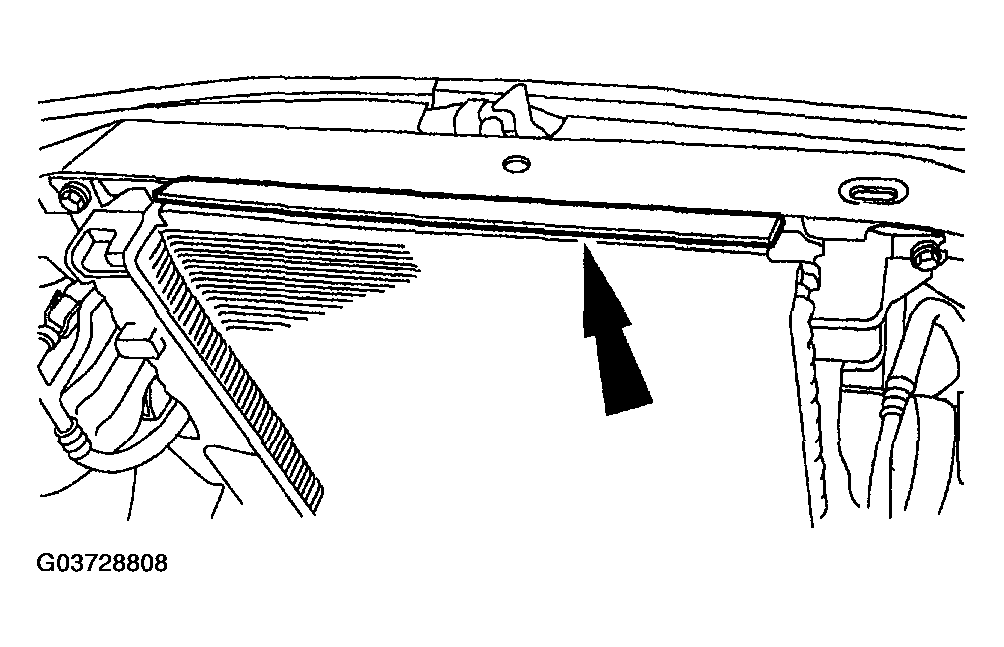

Fig 5: Installing Plastic Cap On Top Of Radiator Channel
Courtesy of MAZDA MOTORS CORP.
Fill the cooling system. See ENGINE COOLANT REPLACEMENT - 2.3L
WARNING:
- Do not stand in line with or hear the engine cooling fan blade when revving the engine.
Operate the engine for several minutes and check the hoses and connections for leaks.
