Oil Pan Removal/Installation - 3.0L: Removal

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Remove the flywheel or flexplate. See FLYWHEEL REMOVAL/INSTALLATION - 3.0L or See FLEXPLATE REMOVAL/INSTALLATION - 3.0L .
  2. Drain the engine oil.

    3. Vehicles equipped with coil springs

  3. Remove the air cleaner outlet tube. See AIR CLEANER OUTLET TUBE REMOVAL/INSTALLATION - 3.0L .

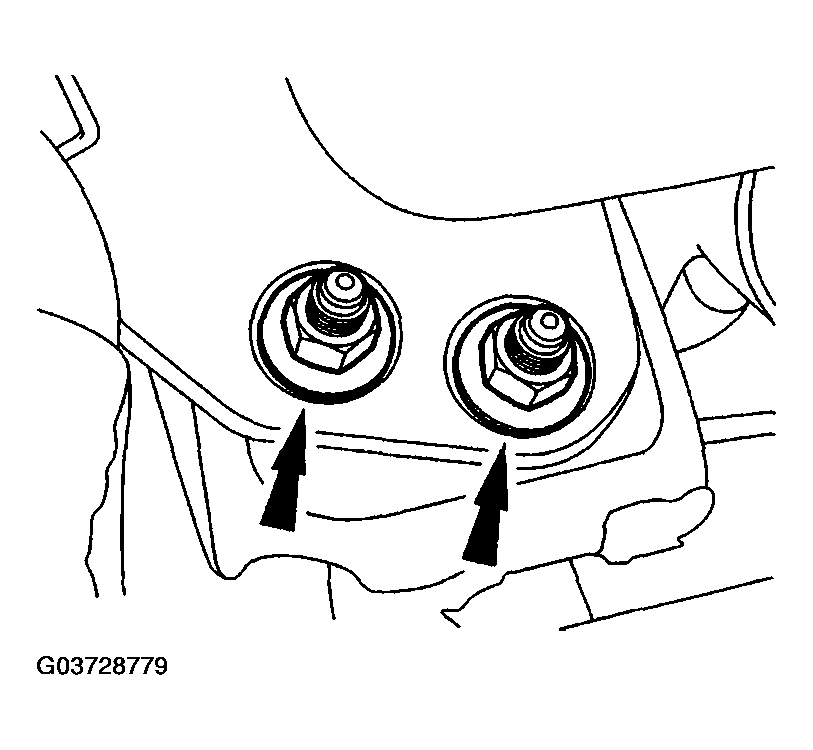

    Fig 1: Removing Engine Mount Nuts (Vehicles Equipped With Coil Springs)
    G03728779Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts from the engine mounts.
  5. Install the Lifting Eyes, the Three-Bar Engine Support and raise the engine 43 mm (1.72 in).
  6. Install blocks between the engine mounts and the support brackets.

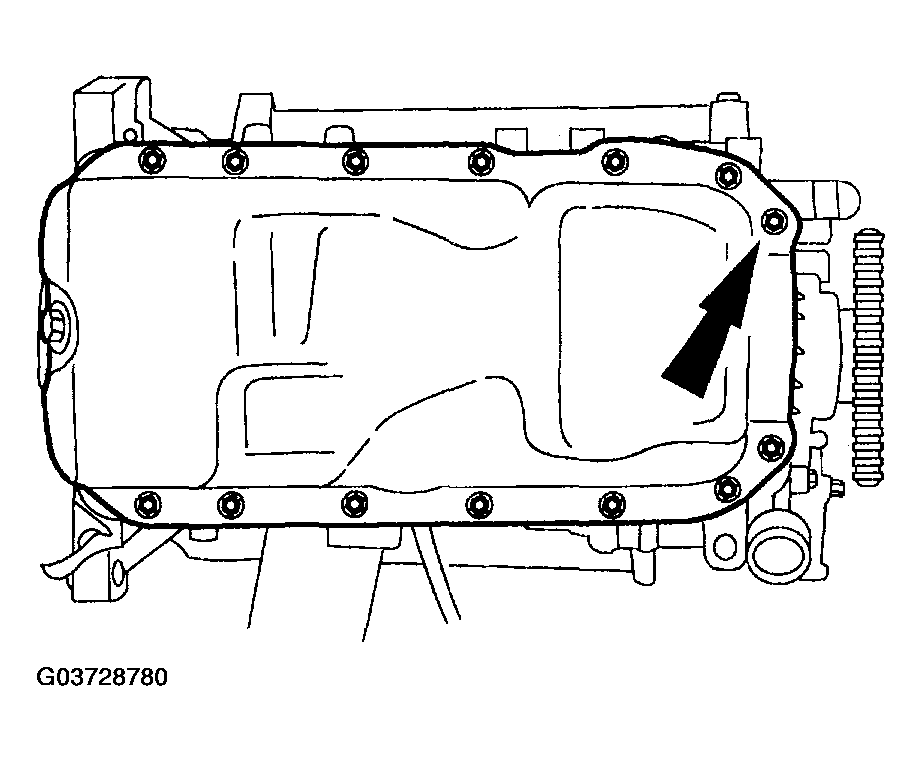

    7. Fig 2: Removing Oil Pan Bolts
    G03728780Courtesy of MAZDA MOTORS CORP.

    All vehicles

  7. Remove the bolts and the oil pan.
    • Discard the gasket.
