Oil Pan Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine from the vehicle. See ENGINE REMOVAL/INSTALLATION - 2.3L .

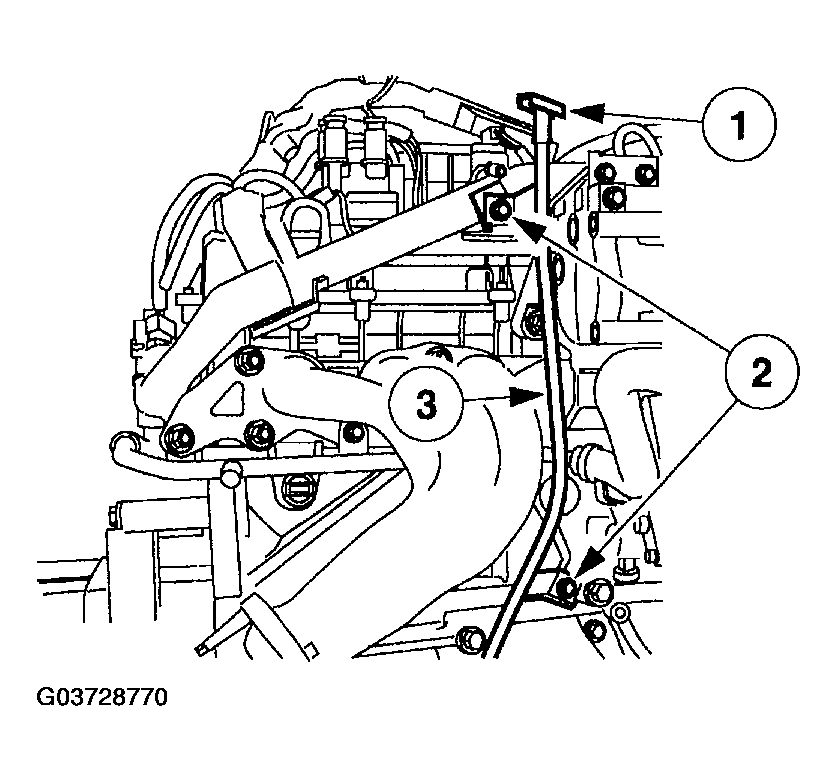

Fig 1: Removing Engine Oil Level Indicator Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the engine oil level indicator assembly.
1. Remove the engine oil level indicator.
2. Remove the bolts.
3. Remove the oil level indicator tube.

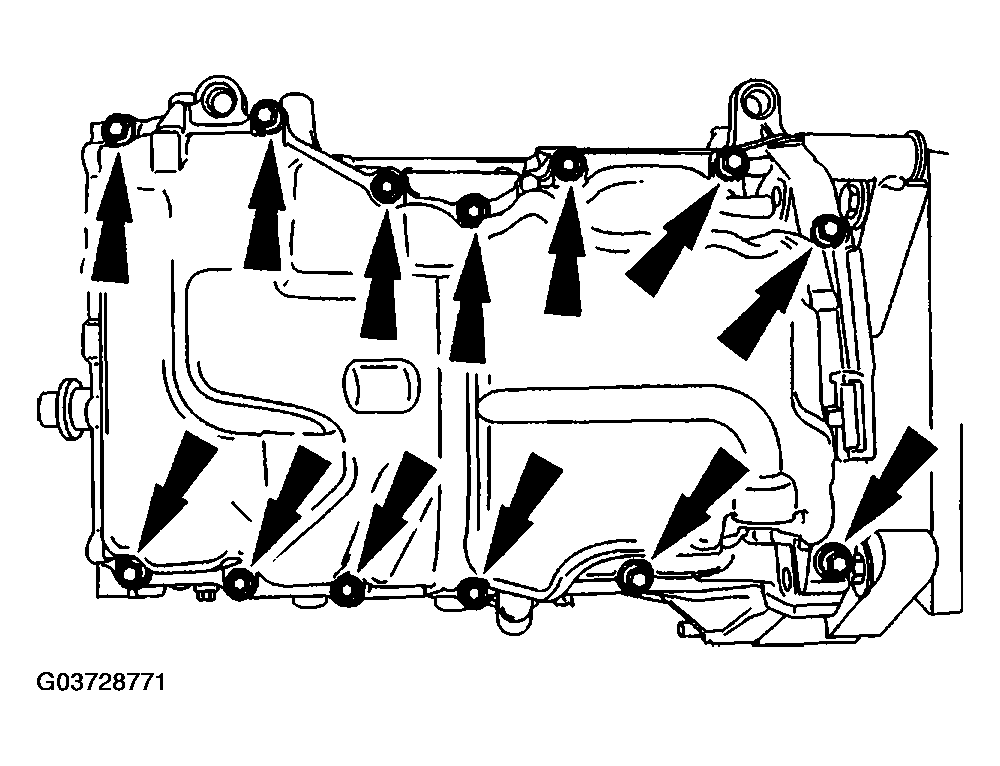

  Fig 2: Removing Oil Pan Bolts
  Courtesy of MAZDA MOTORS CORP.
Remove the oil pan bolts and oil pan.

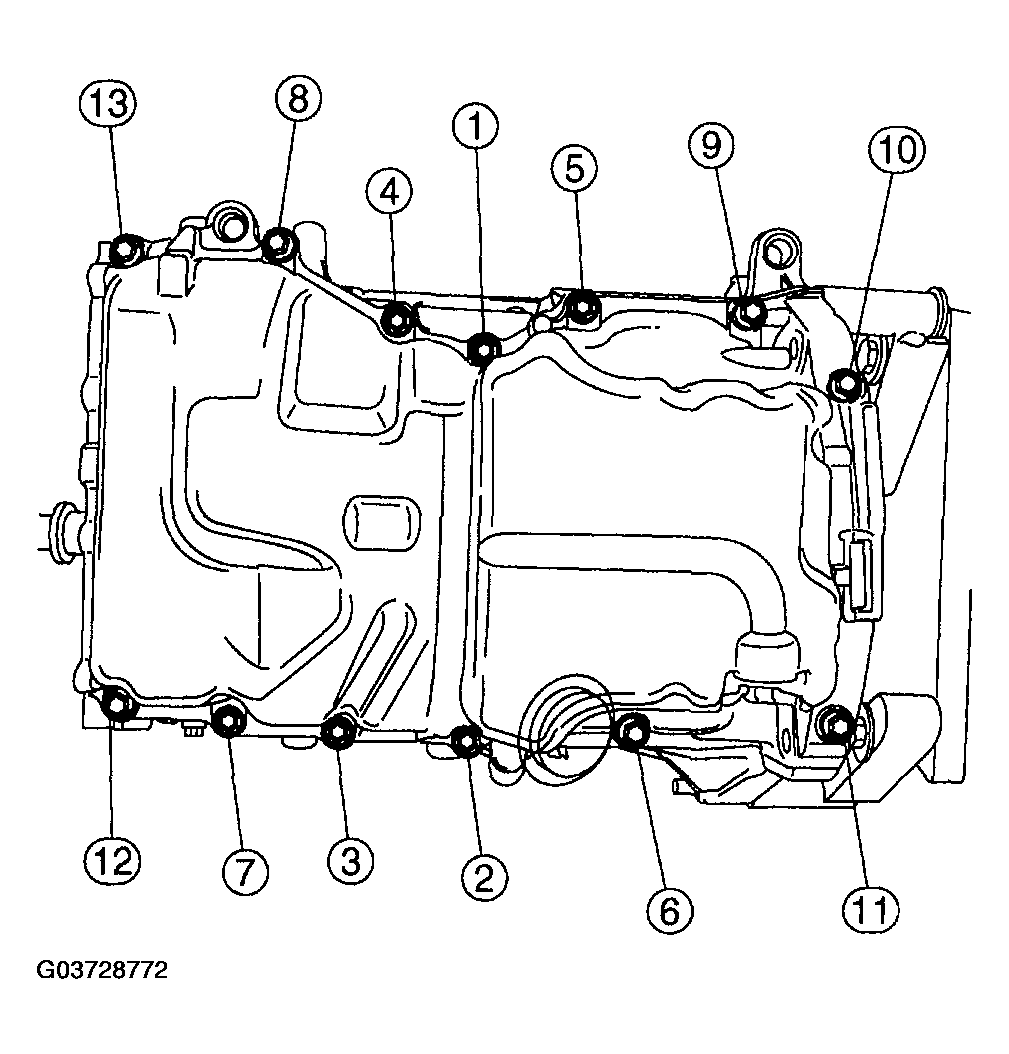

Fig 3: Identifying Tightening Sequence Of Oil Pan Bolts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Clean and inspect all mating surfaces.
- The oil pan must be installed and the bolts tightened with four minutes of applying the silicone gasket and sealant.
- Apply a 2.5 mm bead of silicone gasket and sealant to the oil pan. Install the oil pan. Tighten the oil pan in the sequence shown.
- Lubricate the engine oil level indicator O-ring with clean engine oil.

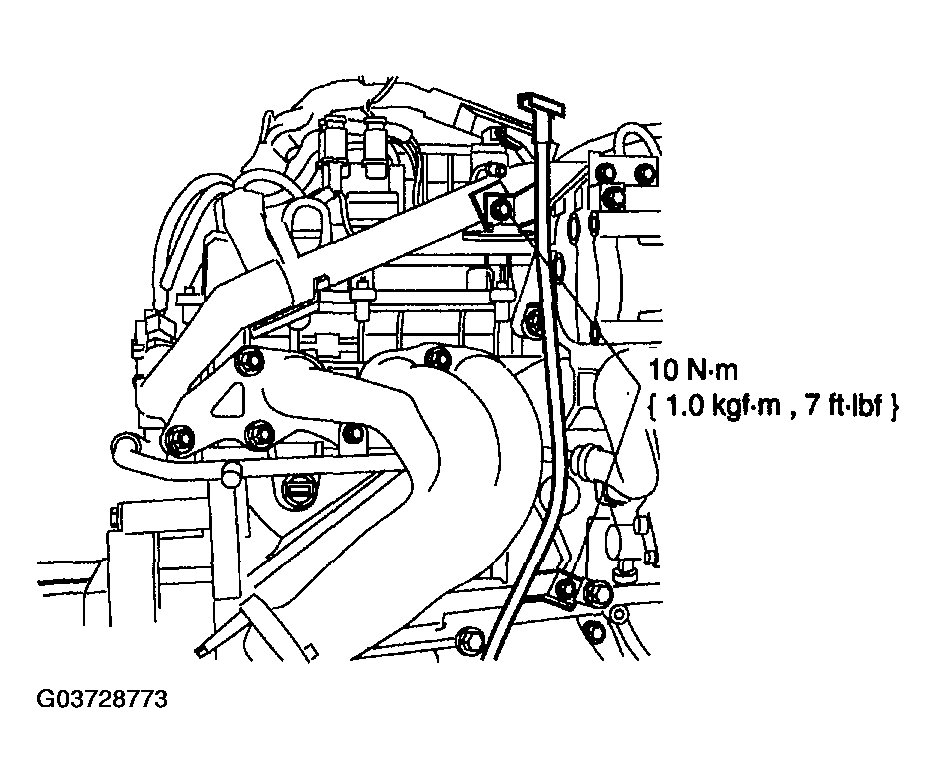

  Fig 4: Tightening Sequence Of Oil Level Indicator Assembly Bolts -- With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
