Engine Mount Rubber Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the hood.
  3. Remove the fan. See COOLING FAN AND CLUTCH REMOVAL/INSTALLATION - 3.0L .
  4. Attach the engine lifting eyes SST 303-D030  .
  5. Remove the engine mount nuts.

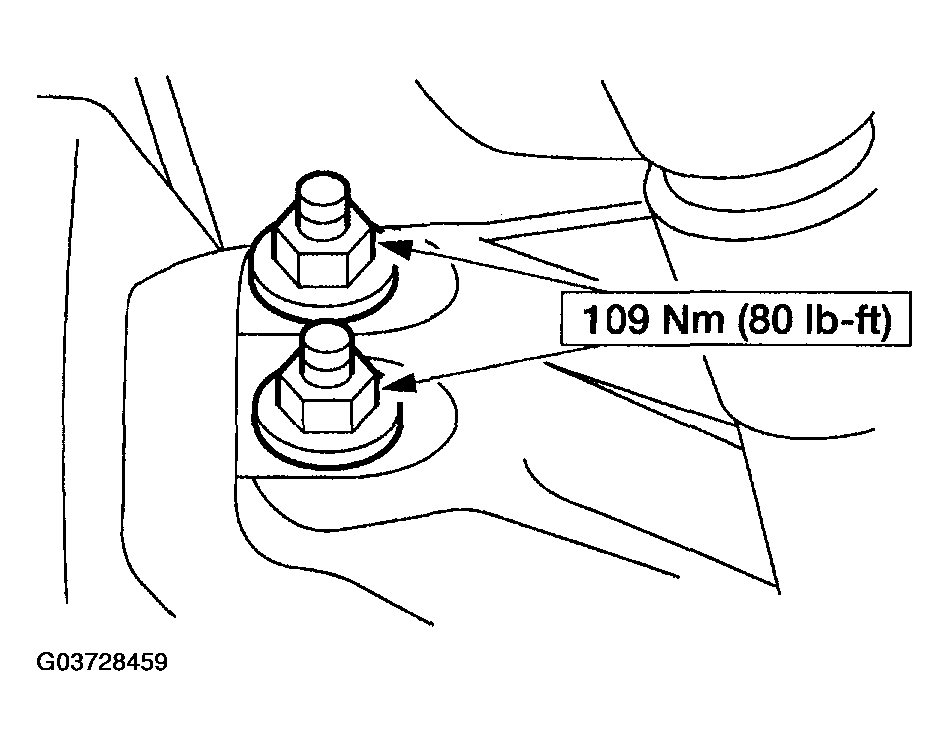

    Fig 1: Removing Engine Mount Nuts - With Torque Specification
    G03728459Courtesy of MAZDA MOTORS CORP.
  6. Raise the engine and support with a Three-Bar engine support SST 303-F073  .
  7. Raise and support the vehicle.
  8. Remove the engine mount nut.

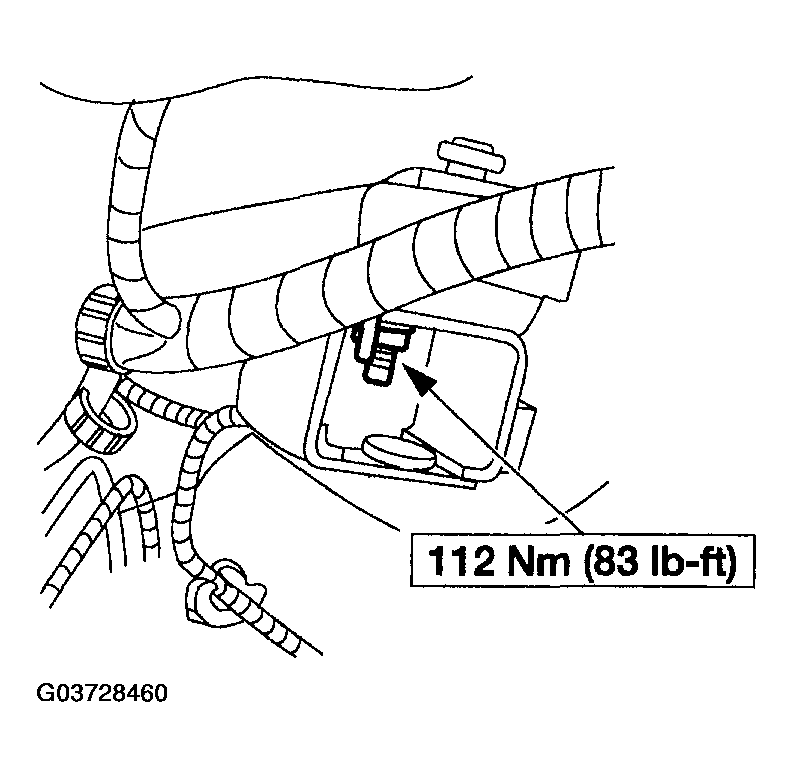

    Fig 2: Removing Engine Mount Nut - With Torque Specification
    G03728460Courtesy of MAZDA MOTORS CORP.
  9. Remove the engine mount.
  10. To install, reverse the removal procedure.
