Cylinder Head Gasket Removal/Installation - 3.0L: Notes

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Disconnect the negative battery cable.
Remove the lower intake manifold. See INTAKE MANIFOLD LOWER REMOVAL/INSTALLATION - 3.0L .
Remove the A/C compressor. See A/C COMPRESSOR REMOVAL/INSTALLATION - 3.0L .
Remove the generator. See GENERATOR REMOVAL/INSTALLATION - 3.0L, 4.0L .
Remove the power steering pump. See POWER STEERING PUMP REMOVAL/INSTALLATION .
Remove the generator mounting bracket.

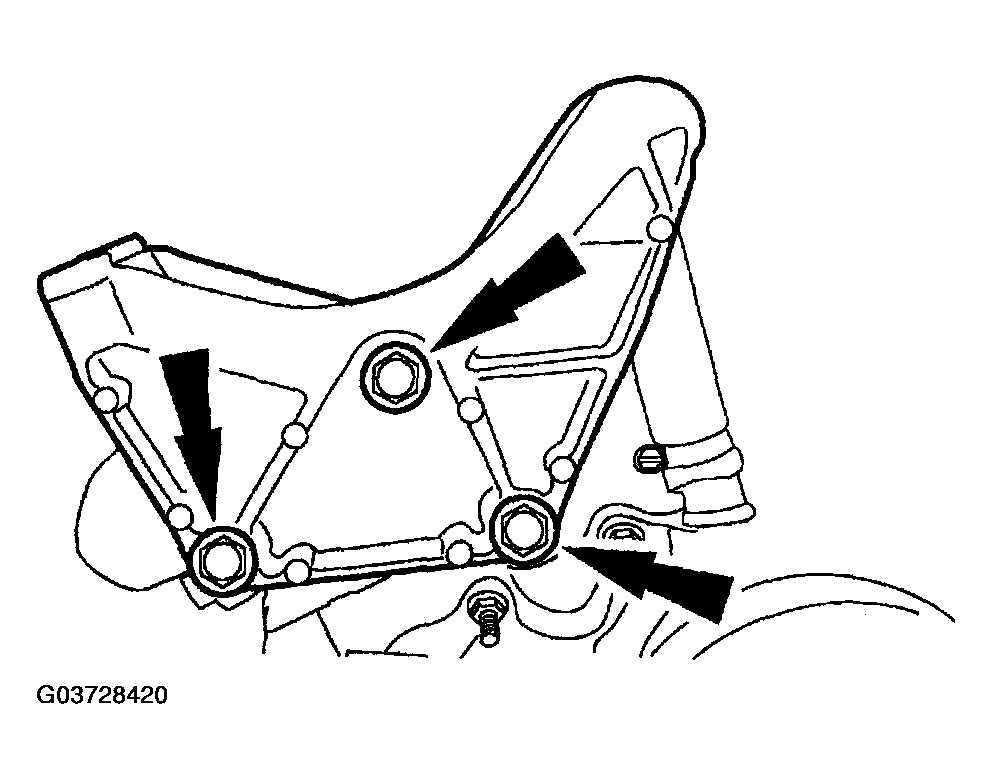

Fig 1: Removing Generator Mounting Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the rocker arms and the push rods.

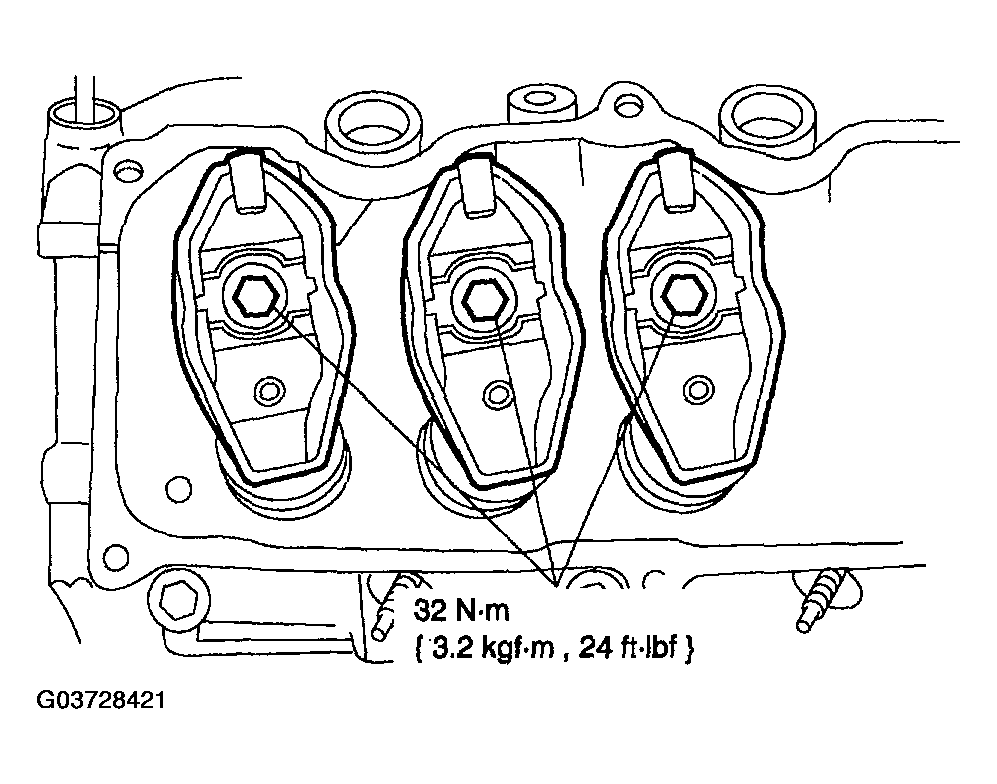

Fig 2: Removing Rocker Arms And Push Rods - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts from the rear of the A/C compressor mounting bracket.

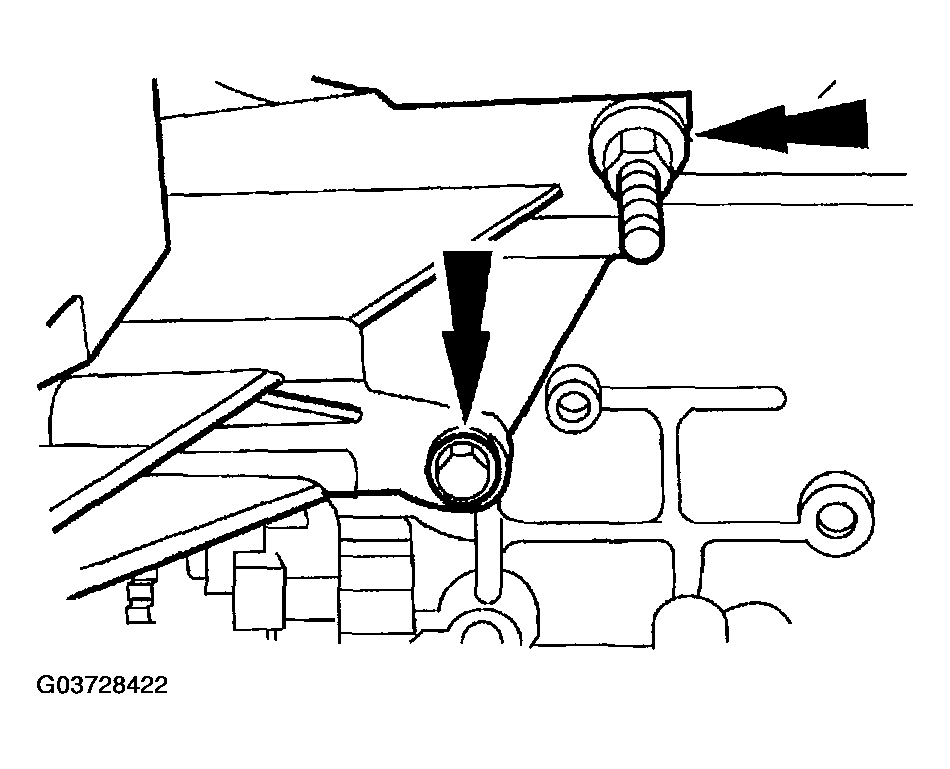

Fig 3: Removing Bolts From Rear Of A/C Compressor Mounting Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and remove the A/C compressor mounting bracket.

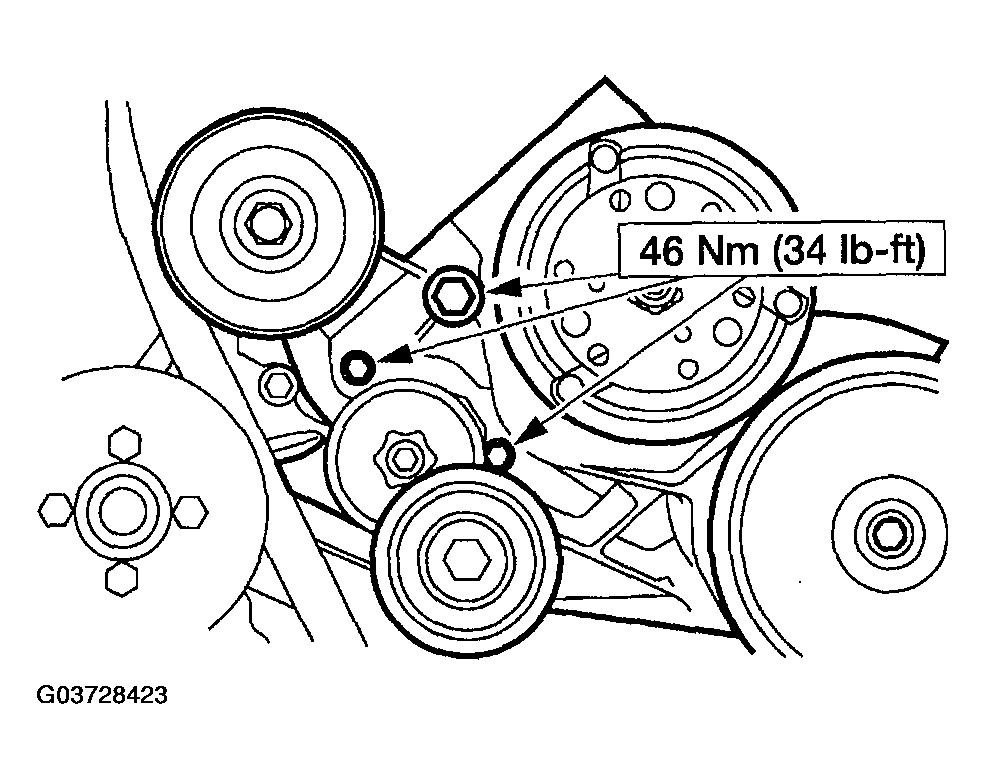

Fig 4: Removing A/C Compressor Mounting Bracket Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Raise the vehicle on a hoist. See LIFTING .
Remove the exhaust manifolds. See EXHAUST MANIFOLD RIGHT HAND REMOVAL/INSTALLATION - 3.0L and EXHAUST MANIFOLD LEFT HAND REMOVAL/INSTALLATION - 3.0L .
Remove and discard the eight cylinder head bolts.

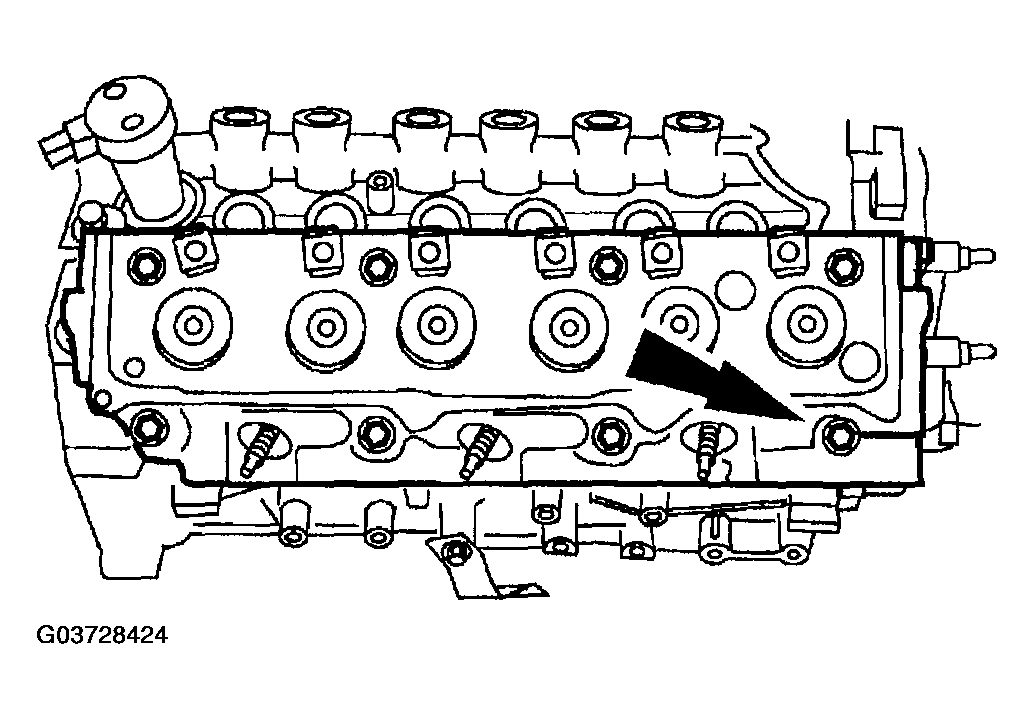

Fig 5: Removing Cylinder Head Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the cylinder heads.

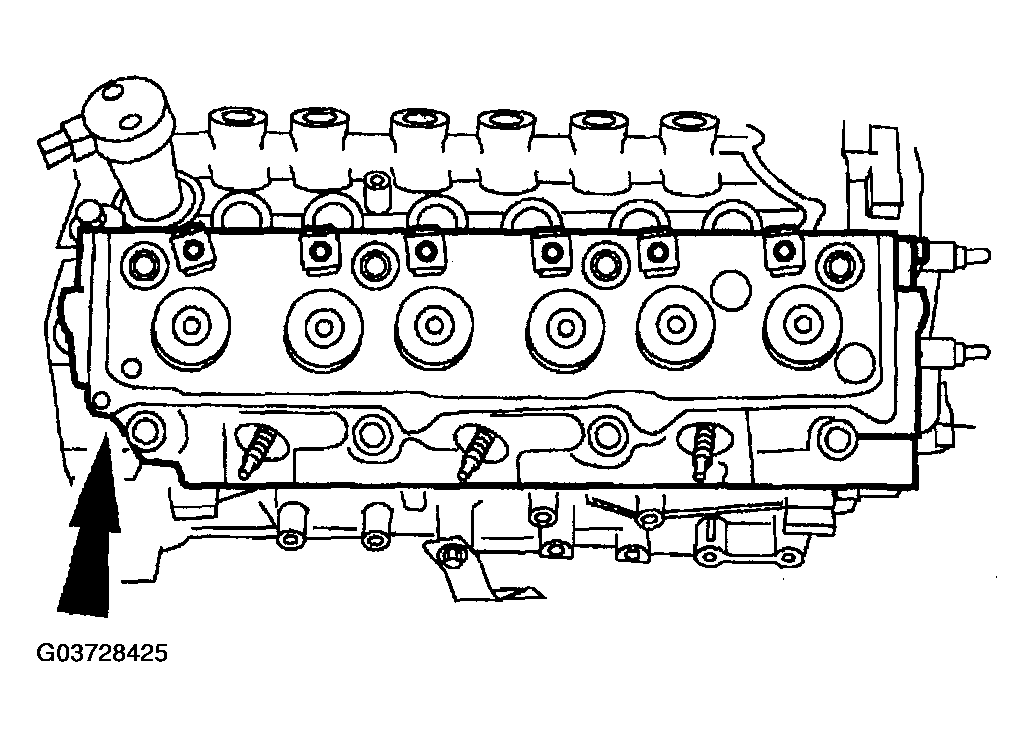

Fig 6: Removing Cylinder Heads
Courtesy of MAZDA MOTORS CORP.
Remove the cylinder head gaskets.

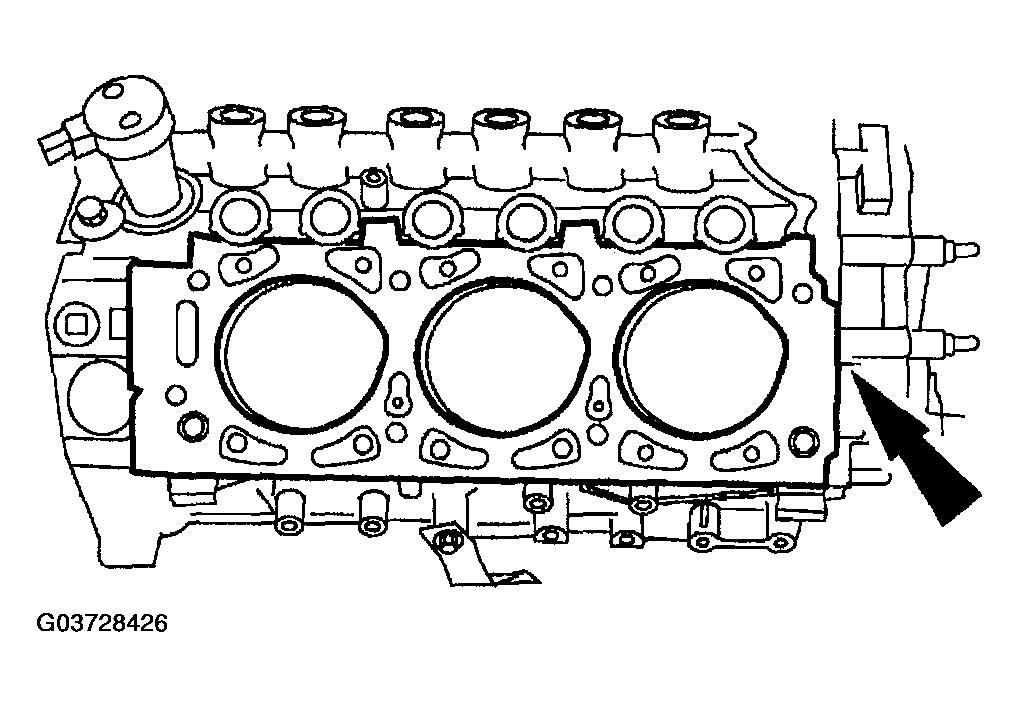

Fig 7: Removing Cylinder Head Gaskets
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal by taking care of the following note.
