Exhaust Manifold Left Hand Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Raise the vehicle on a hoist. See LIFTING .
Remove the nuts.

Fig 1: Removing Nuts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
Remove the oil level indicator tube assembly, and the intake manifold support bracket.
- Remove the upper intake manifold support brace.

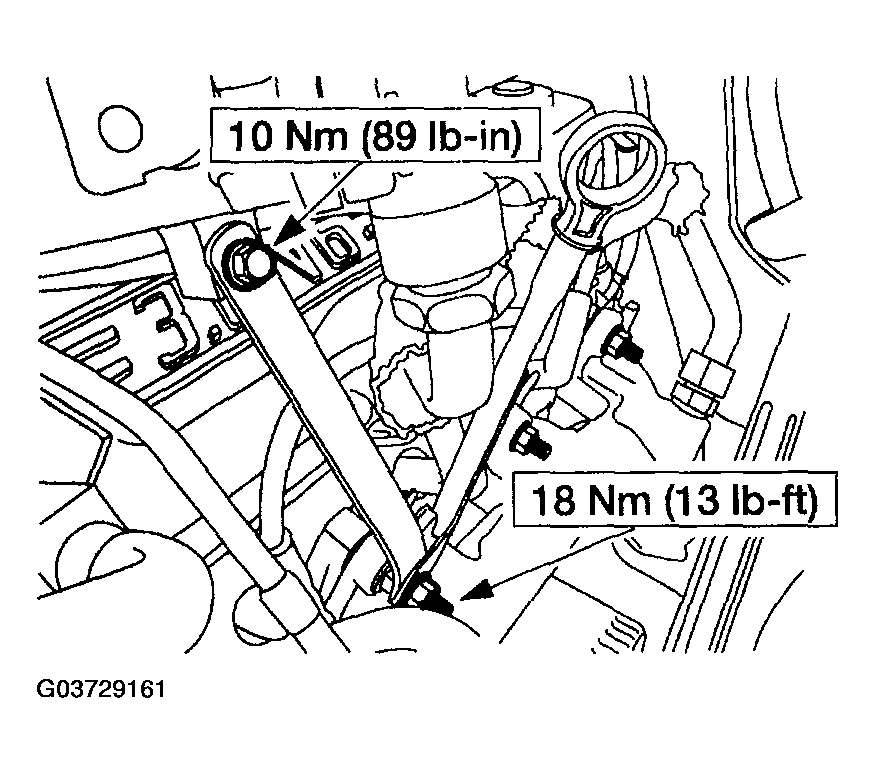

  Fig 2: Removing Bolts And Nuts - With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the nuts.

Fig 3: Removing Exhaust Manifold Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the exhaust manifold and the exhaust manifold gasket.
Position the exhaust manifold and the exhaust manifold gasket.
Install the bolts and the nuts.
- Tighten the nuts and the bolts in sequence in two steps:
  Tightening torque

  10 N.m { 82 kgf.cm, 8 ft.lbf }

  Tightening torque

  20-25 N.m { 1.5-1.8 kgf.m, 15-18 ft.lbf }

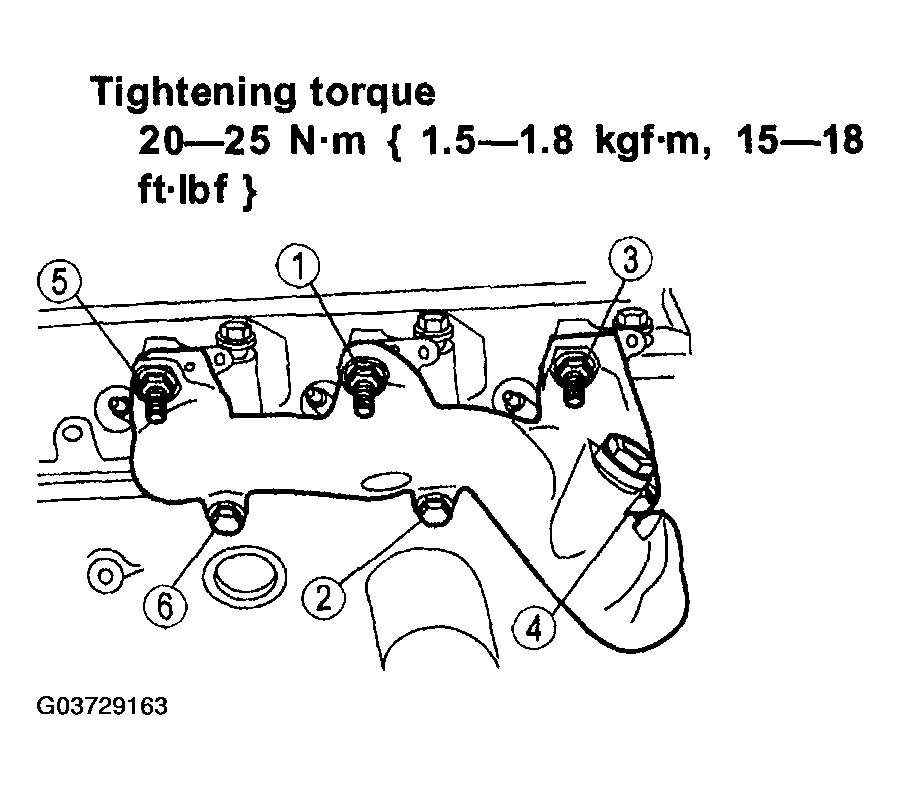

  Fig 4: Tightening Sequence Of Exhaust Manifold Bolts -- With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
