Belt Idler Pulley Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. See DRIVE BELT REMOVAL/INSTALLATION - 3.0L .
  2. Remove the bolt and belt idler pulley.

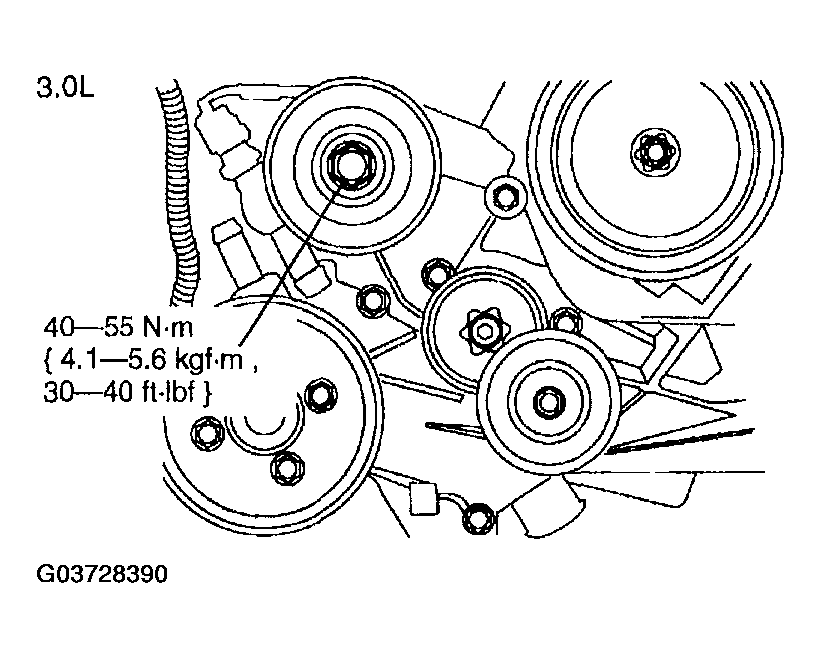

    Fig 1: Removing Belt Idler Pulley Bolt - With Torque Specification
    G03728390Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
