Engine Mount Rubber Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front springs. See COIL SPRING FRONT SUSPENSION REMOVAL/INSTALLATION - 4X2 .
  2. Remove the pushpins and position the right inner fender splash shield out of the way.
    Fig 1: Removing Pushpins And Right Inner Fender Splash Shield
    G03728200Courtesy of MAZDA MOTORS CORP.
  3. Lower the vehicle.
  4. Remove the clutch fan. See COOLING FAN AND CLUTCH REMOVAL/INSTALLATION - 2.3L .
    NOTE:
    • Right hand shown, left hand similar.
  5. Remove the RH and LH engine support insulator nuts.

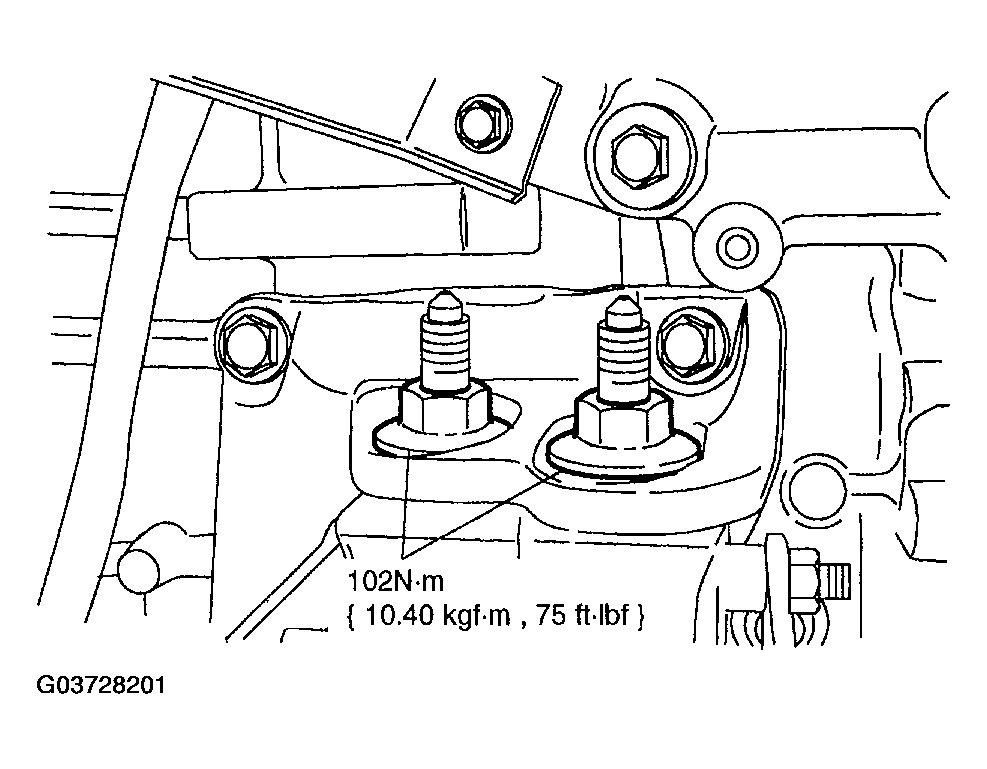

    Fig 2: Removing RH And LH Engine Support Insulator Nuts - With Torque Specification
    G03728201Courtesy of MAZDA MOTORS CORP.
  6. Install the Lifting Eyes.
  7. Raise the engine with the 3-Bar Engine Support Kit.
  8. Raise and support the vehicle. See LIFTING .
    NOTE:
    • Right hand shown, left hand similar.
  9. Remove the nuts and the engine support insulators.

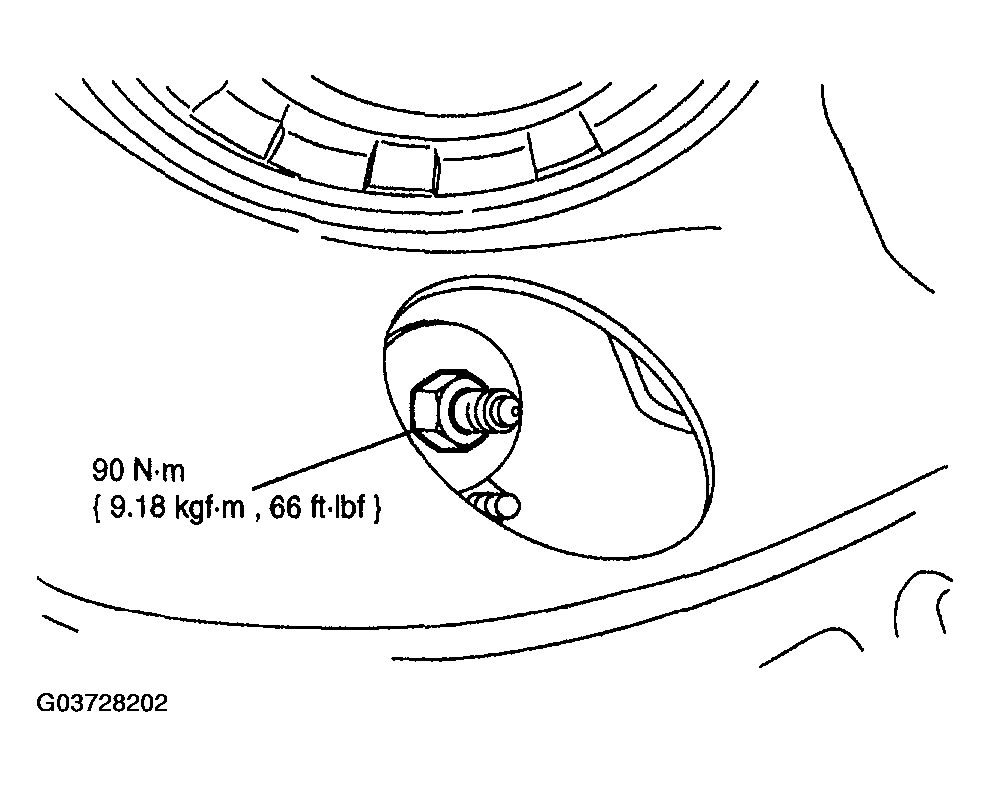

    Fig 3: Removing Engine Support Insulator Nuts - With Torque Specification
    G03728202Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
