Cooling Fan And Clutch Removal/Installation - 2.3L
WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
Loosen the mechanical fan nut.

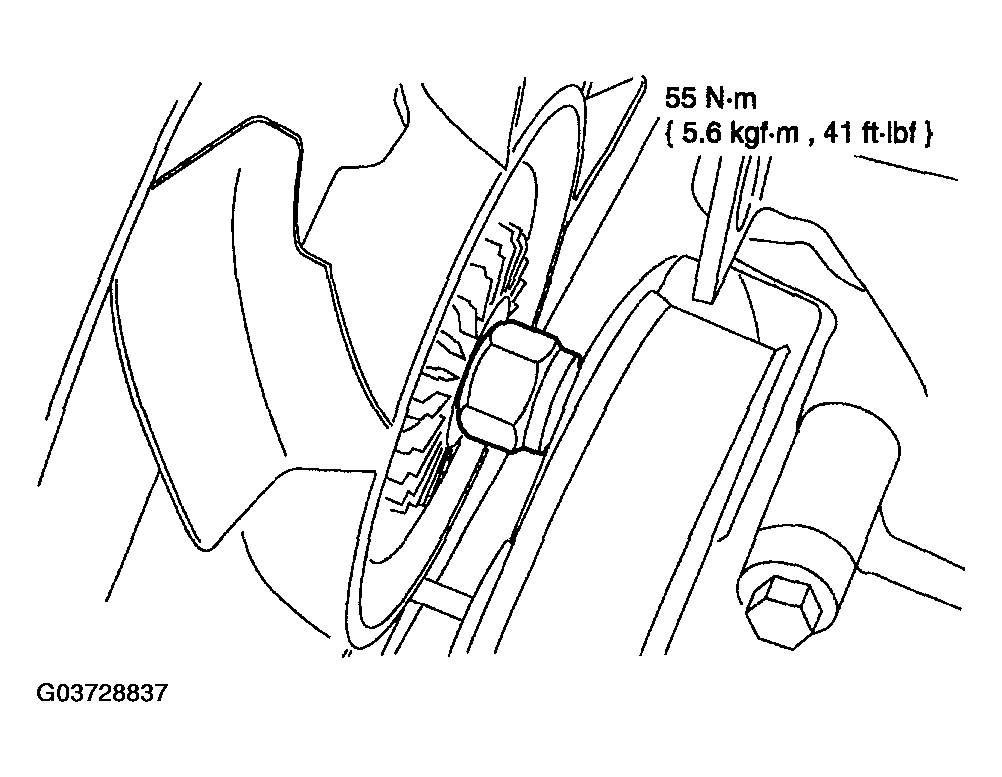

Fig 1: Removing Mechanical Fan Nut - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the fan and clutch assembly.

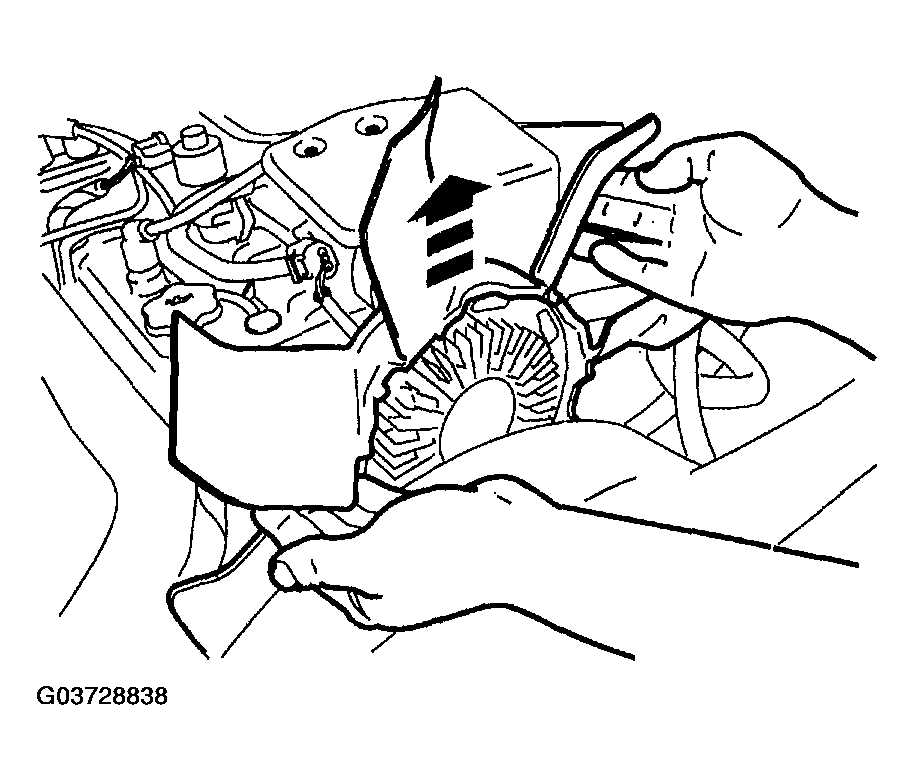

Fig 2: Removing Mechanical Fan And Clutch Assembly
