Cylinder Head Gasket Removal/Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply silicone gasket and sealant to the locations shown.

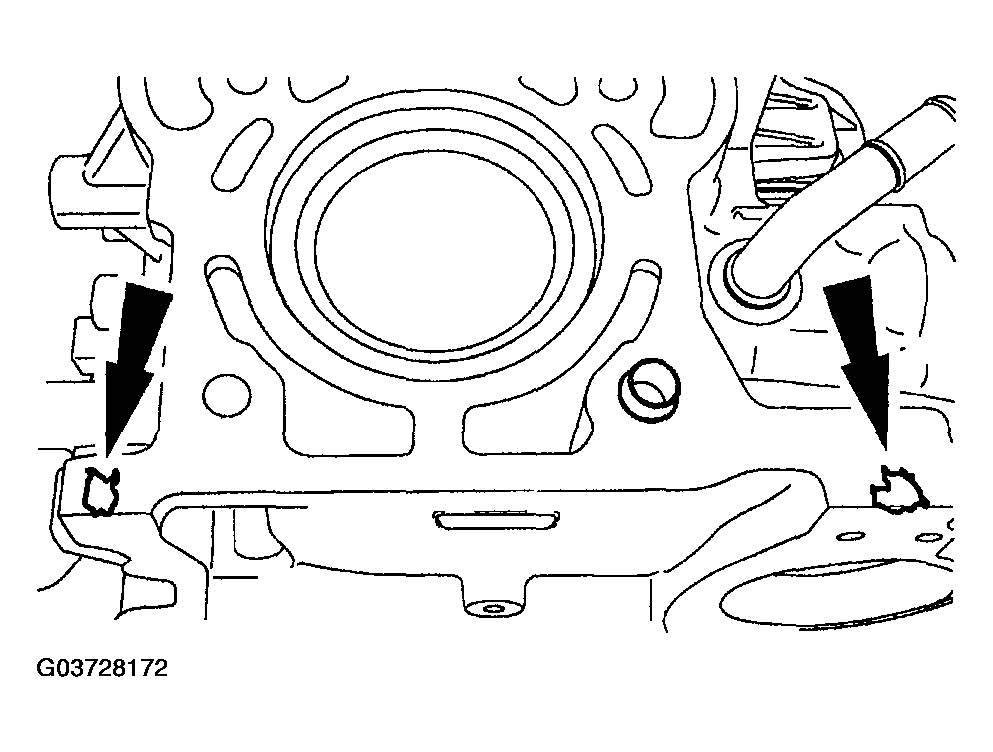

    Fig 1: Applying Silicone Gasket And Sealant
    G03728172Courtesy of MAZDA MOTORS CORP.
  2. Install the head gasket.

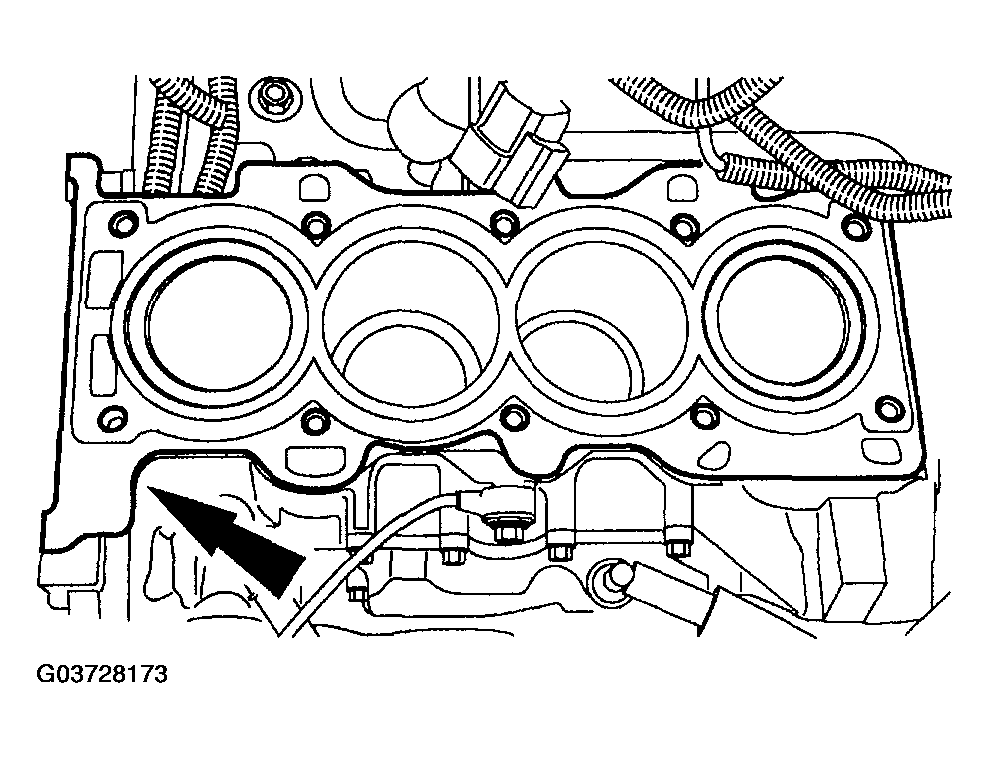

    Fig 2: Installing Cylinder Head Gasket
    G03728173Courtesy of MAZDA MOTORS CORP.
  3. Install the cylinder head and lubricate the cylinder head bolts with clean engine oil. Install the cylinder head bolts and tighten the bolts in the sequence shown in five stages.
    • Stage 1: Tighten the bolts to 5 N.m {0.51 kgf.m 4 ft.lbf}.
    • Stage 2: Tighten the bolts to 15 N.m {1.5 kgf.m 11 ft.lbf}.
    • Stage 3: Tighten the bolts to 45 N.m {4.59 kgf.m 33 ft.lbf}.
    • Stage 4: Turn the bolts 90 degrees.
    • Stage 5: Turn the bolts an additional 90 degrees.

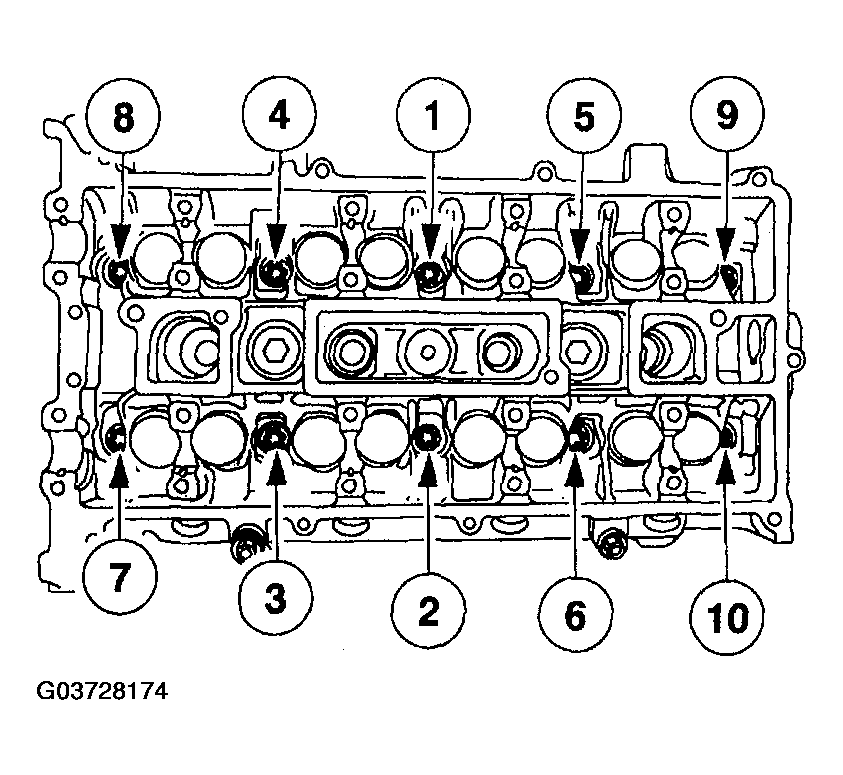

      Fig 3: Identifying Tightening Sequence Of Cylinder Head Bolts
      G03728174Courtesy of MAZDA MOTORS CORP.
  4. Connect the coolant bypass hose.

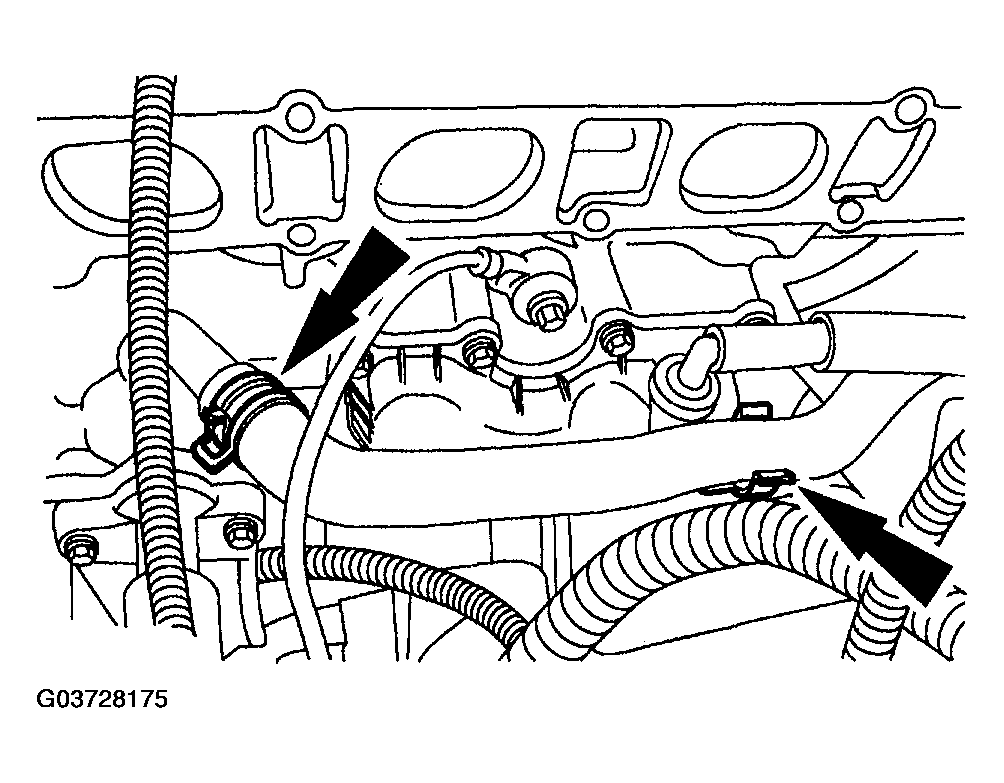

    Fig 4: Connecting Coolant Bypass Hose
    G03728175Courtesy of MAZDA MOTORS CORP.
  5. Connect the EEGR coolant hose.

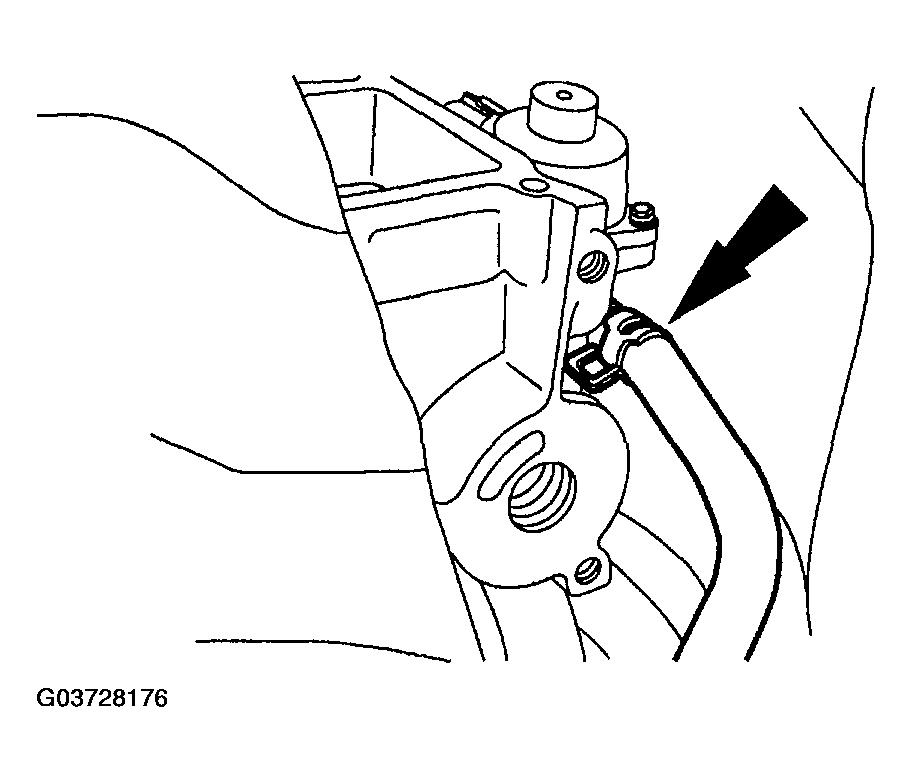

    Fig 5: Connecting EEGR Coolant Hose
    G03728176Courtesy of MAZDA MOTORS CORP.
  6. Connect the ECT sensor and the EEGR valve electrical connectors.

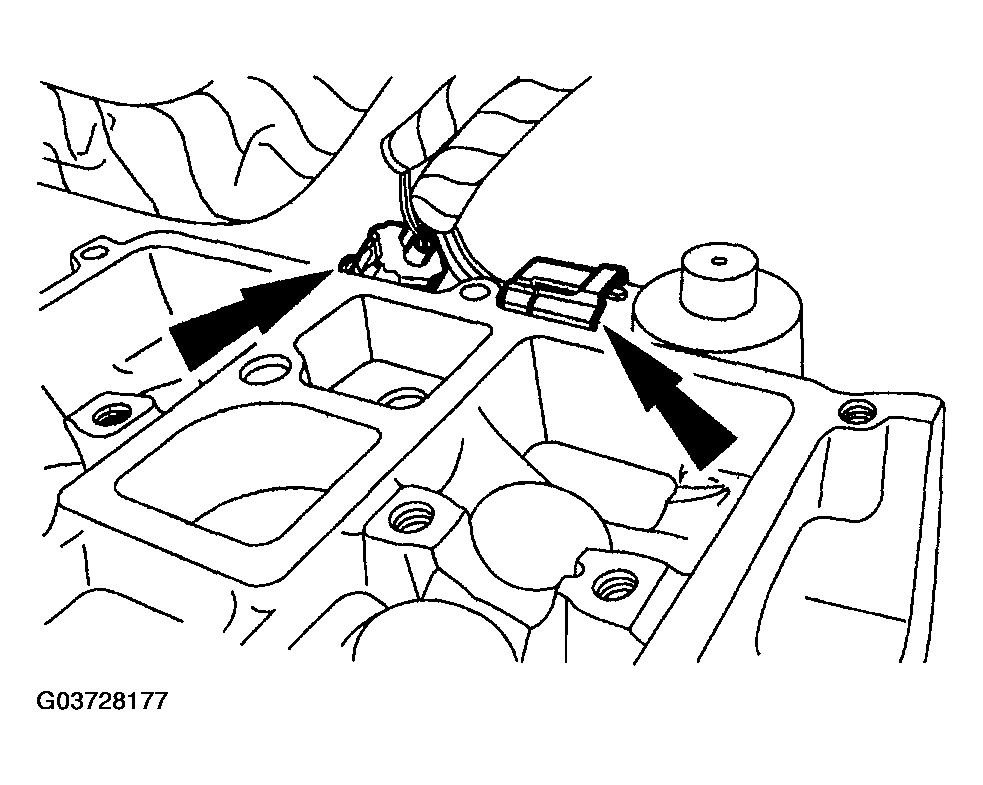

    Fig 6: Connecting ECT Sensor And EEGR Valve Electrical Connectors
    G03728177Courtesy of MAZDA MOTORS CORP.
  7. Connect the EEGR tube and the ground strap.

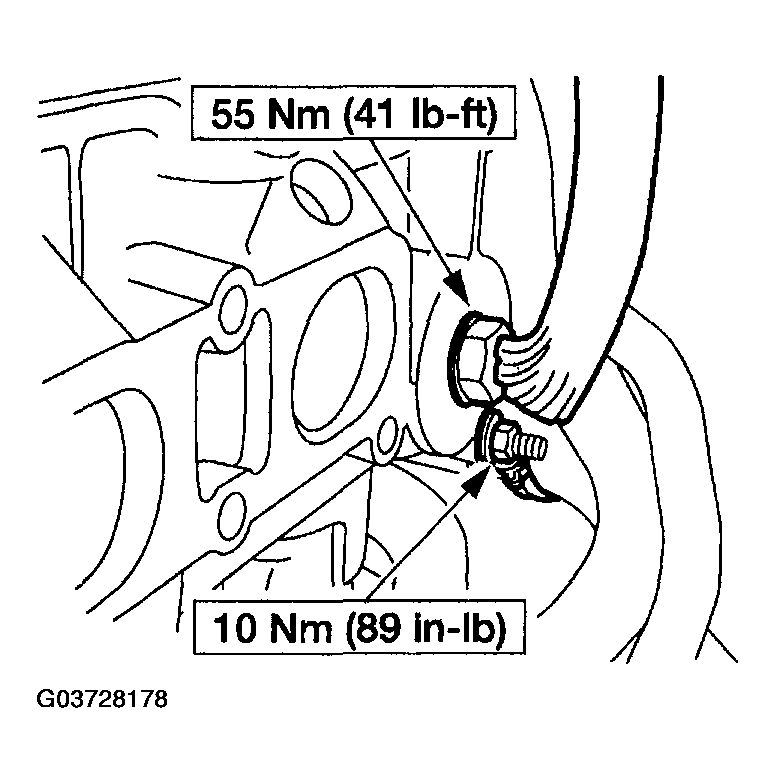

    Fig 7: Connecting EEGR Tube And Ground Strap - With Torque Specifications
    G03728178Courtesy of MAZDA MOTORS CORP.
  8. Install the PCV hose clip.

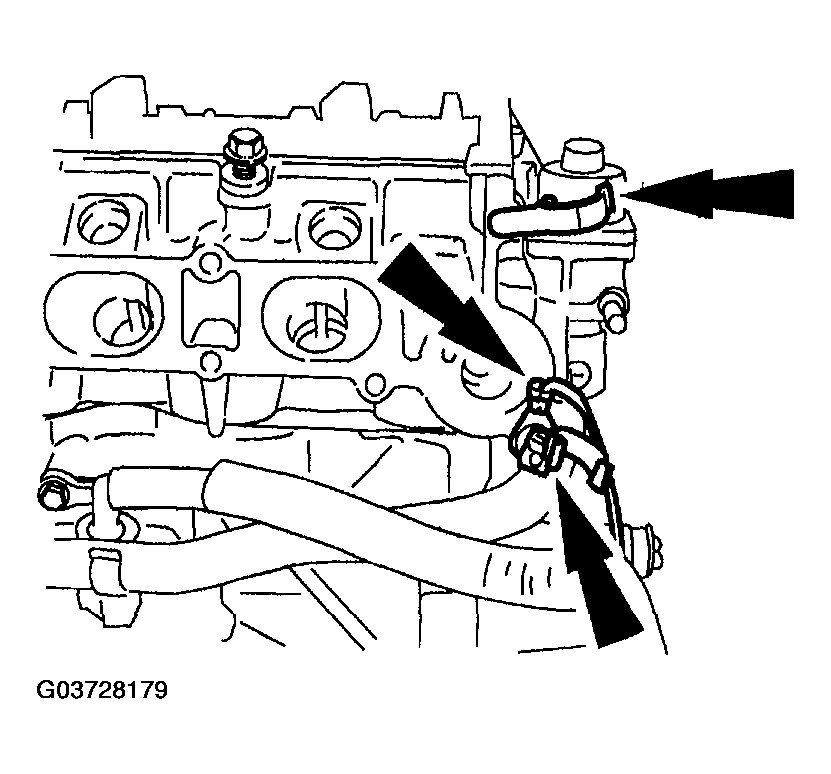

    Fig 8: Installing PCV Hose Clip
    G03728179Courtesy of MAZDA MOTORS CORP.
  9. Install the fuel injector supply manifold spacers.

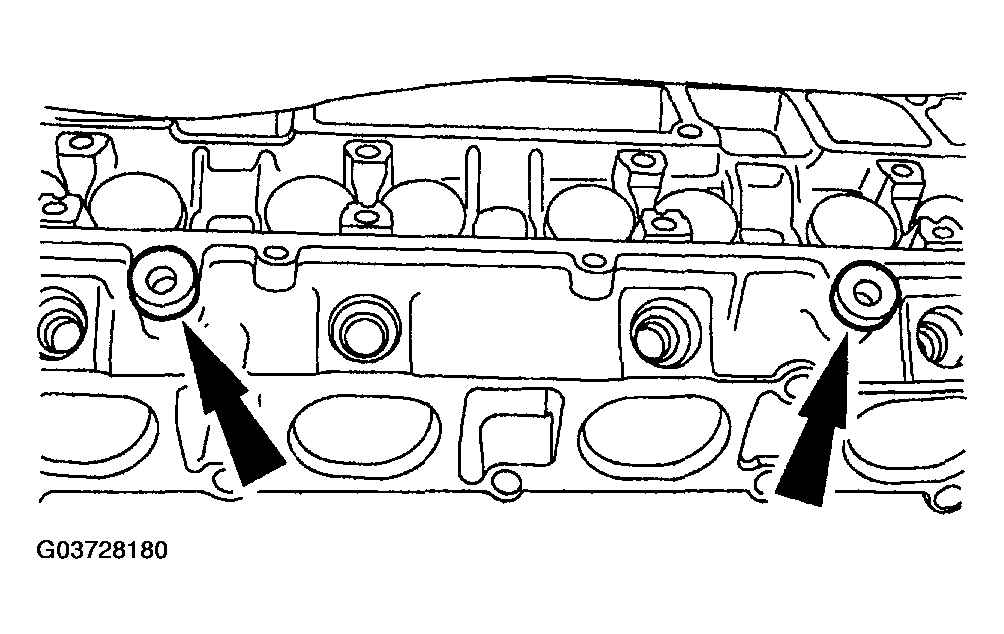

    Fig 9: Installing Fuel Injector Supply Manifold Spacers
    G03728180Courtesy of MAZDA MOTORS CORP.
  10. Install the fuel injector supply manifold. See FUEL INJECTION SUPPLY MANIFOLD AND FUEL INJECTOR - 2.3L REMOVAL/INSTALLATION .
  11. Install the exhaust manifold. See EXHAUST MANIFOLD REMOVAL/INSTALLATION - 2.3L .
  12. Install the camshafts. See CAMSHAFTS REMOVAL/INSTALLATION - 2.3L .
