Crankshaft Rear Oil Seal Removal/Installation - 2.3L: Removal

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel or flexplate. See FLY-WHEEL/FLEXPLATE REMOVAL/INSTALLATION - 2.3L
  2. Remove the oil pan. See OIL PAN REMOVAL/INSTALLATION - 2.3L .
  3. Remove the bolts and the crankshaft rear oil seal.

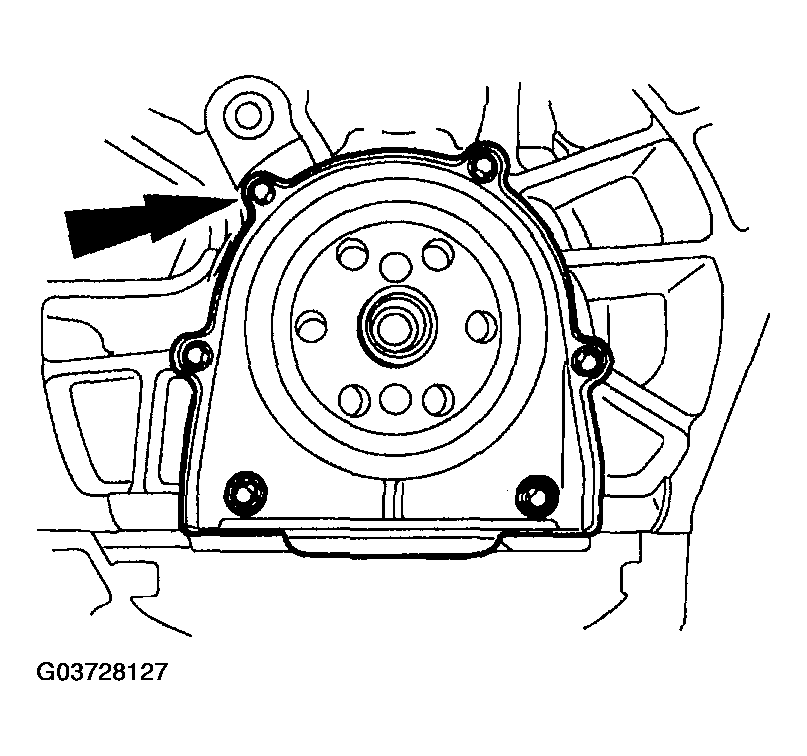

    4. Fig 1: Removing Crankshaft Rear Oil Seal
    G03728127Courtesy of MAZDA MOTORS CORP.
