Crankshaft Rear Oil Seal Removal/Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the crankshaft rear oil seal on the crankshaft.
    • Tighten the bolts in the sequence shown to 10 N.m {1 kgf.m, 7 lbf}.

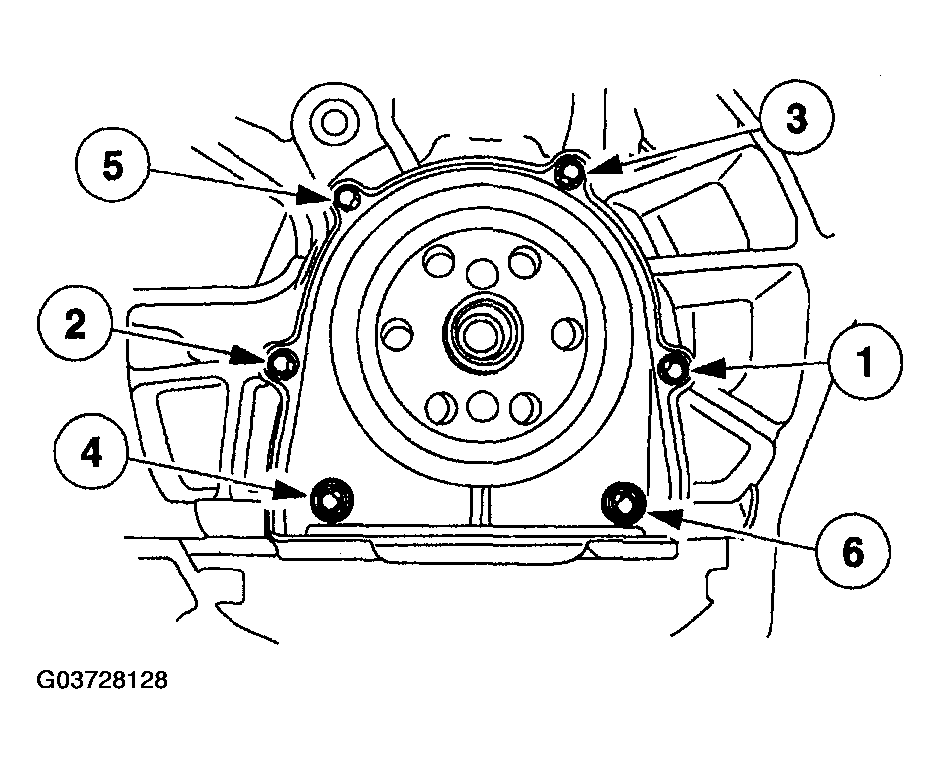

    Fig 1: Tightening Crankshaft Rear Oil Seal Bolts In Sequence
    G03728128Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pan. See OIL PAN REMOVAL/INSTALLATION - 2.3L .
  3. Install the flywheel or flexplate. See FLY-WHEEL/FLEXPLATE REMOVAL/INSTALLATION - 2.3L .
