Belt TENSIONER Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. See DRIVE BELT REMOVAL/INSTALLATION - 2.3L
  2. Remove the bolt and the belt tensioner.

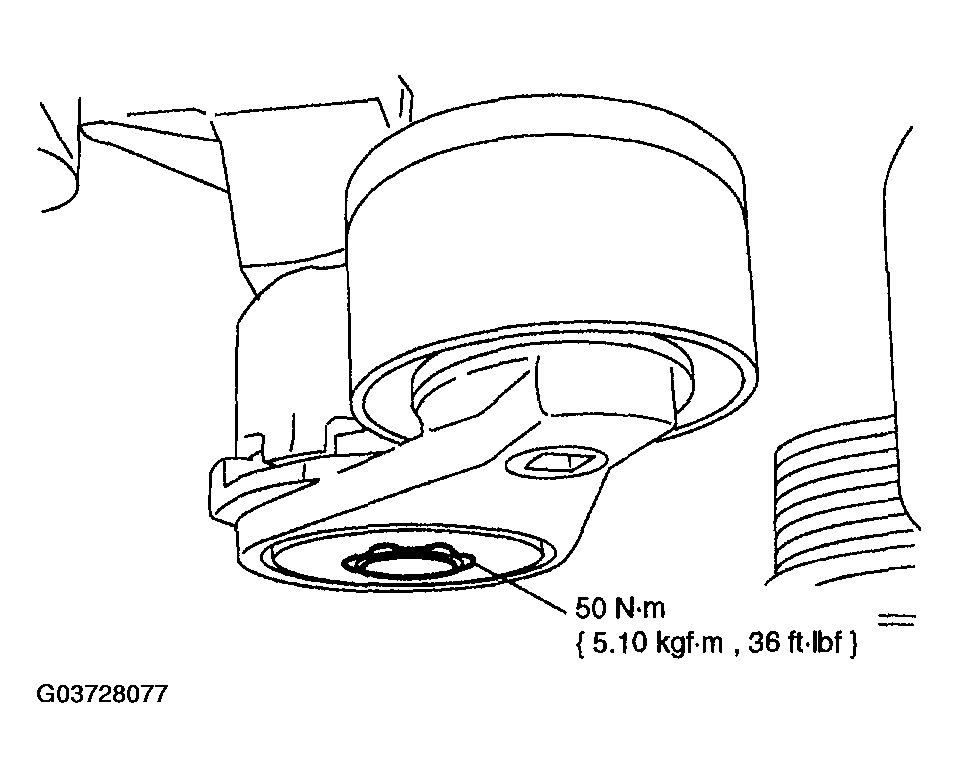

    3. Fig 1: Removing Belt Tensioner - With Torque Specifications
    G03728077Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
