Belt Idler Pulley Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. See DRIVE BELT REMOVAL/INSTALLATION - 2.3L .

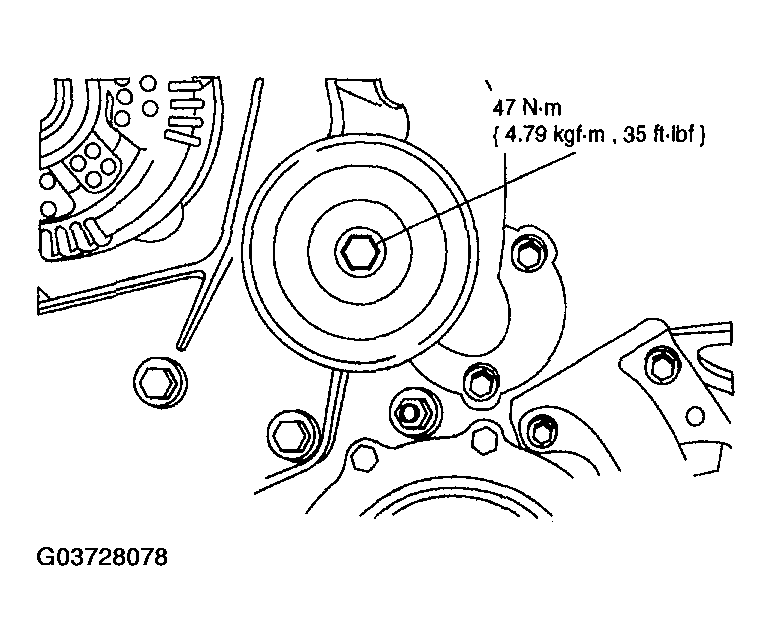

    Fig 1: Removing Belt Idler Pulley Bolt - With Torque Specification
    G03728078Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolt and the belt idler pulley.
  3. Install in reverse order of removal.
