DTC P0712, P0713, P1711, P1713, P1718, P1783: Transmission Fluid Temperature Sensor 5R44E And 5R55E Only

NOTE:

See AUTOMATIC TRANSMISSION DIAGNOSIS and the CONTROL VALVE BODY WIRE HARNESS DIAGRAM .

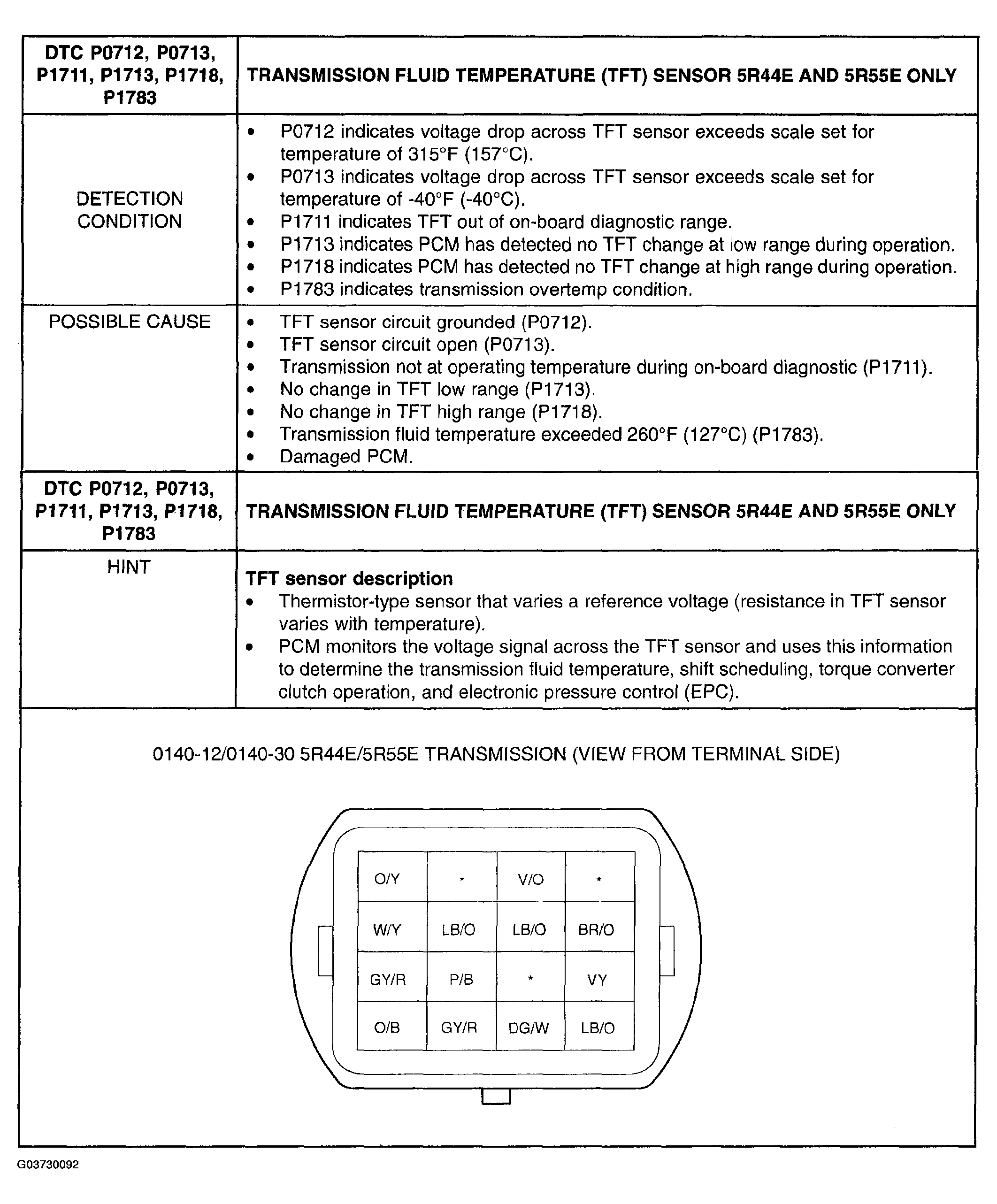

Fig 1: DTC P0712, P0713, P1711, P1713, P1718, P1783 - Detection Conditions And Possible Causes
Courtesy of MAZDA MOTORS CORP.

DTC P0712, P0713, P1711, P1713, P1718, P1783 - TRANSMISSION FLUID TEMPERATURE SENSOR 5R44E AND 5R55E ONLY

DTC P0712, P0713, P1711, P1713, P1718, P1783		TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR 5R44E AND 5R55E ONLY
STEP	INSPECTION		ACTION
1	Was PCM Quick Test performed?	Yes	Go to step 2.
1	Was PCM Quick Test performed?	No	Perform PCM Quick Test. See PCM QUICK TEST .
2	WARM-UP/COOL-DOWN CYCLE Key ON, Engine OFF (KOEO). Access the TFT V PID with the WDS or equivalent tester. While monitoring the TFT V PID, perform the following test: If transmission is cold, run transmission to warm it up. If transmission is warm, allow transmission to cool down. Does the TFT V PID increase as the transmission is warmed up or decrease as the transmission is cooled or does it drop in and out of range?	Yes	If the TFT V PID increases as the transmission is warmed or decreases as the transmission is cooled, Clear all DTCs. Road test to verify if concern is still present. If concern is still present, See SYMPTOM TROUBLESHOOTING CHART - AUTOMATIC TRANSMISSION to diagnose transmission overheating. If the TFT V drops in and out of range, inspect for intermittent concern in the internal/external harness, sensor or connector.
2		No	Go to step 3.
3	ELECTRICAL SIGNAL CHECK Key OFF. Remove oil pan. See MANUAL TRANSMISSION/CLUTCH PINPOINT TEST 7: EXCESSIVE NOISE . Visually inspect all wires and connectors for damage. Key ON, Engine OFF (KOEO). Connect DVOM positive lead to +TFT at sensor terminal and negative lead to a good ground. Is the voltage present?	Yes	Go to step 4.
3		No	Check for open or short circuit in vehicle harness, internal harness or a PCM concern. Repair as necessary. Go to step 5.
4	CHECK RESISTANCE OF TFT SENSOR Disconnect transmission harness connector. Connect DVOM across +TFT and -TFT terminals at transmission connector and record the resistance. Resistance should be approximately in the ranges shown in the Resistance table. Is the resistance in the range?	Yes	See SYMPTOM TROUBLESHOOTING CHART - AUTOMATIC TRANSMISSION to diagnose an overheating concern.
4		No	Replace control valve body wire harness (sensor is part of harness). See AUTOMATIC TRANSMISSION DIAGNOSIS . Go to step 5.
5	VERIFY TROUBLESHOOTING OF DTCs COMPLETED Make sure to reconnect all disconnected connectors. Clear DTCs from PCM memory using WDS or equivalent tester generic OBD-II function. Perform PCM Quick Test. Is same DTC present?	Yes	Replace PCM and repeat PCM Quick Test.
5		No	If any other DTC is present, go to applicable DTC inspection. If no DTC is present, troubleshooting complete.

TRANSMISSION FLUID TEMPERATURE SENSOR RESISTANCE SPECIFICATION

C	F	Resistance (Ohms)
-40 to -20	-40 to -4	967K-284K
-19 to -1	-2 to 30	284K-100K
0-20	32-68	100K-37K
21-40	70-04	37K-16K
41-70	106-58	16K-5K
71-90	160-194	5K-2.7K
91-110	196-230	2.7K-1.5K
111-130	232-266	1.5K-0.8K
131-150	268-302	0.8K-0.54K
