Inspection Of Continuity

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity at the TR switch.

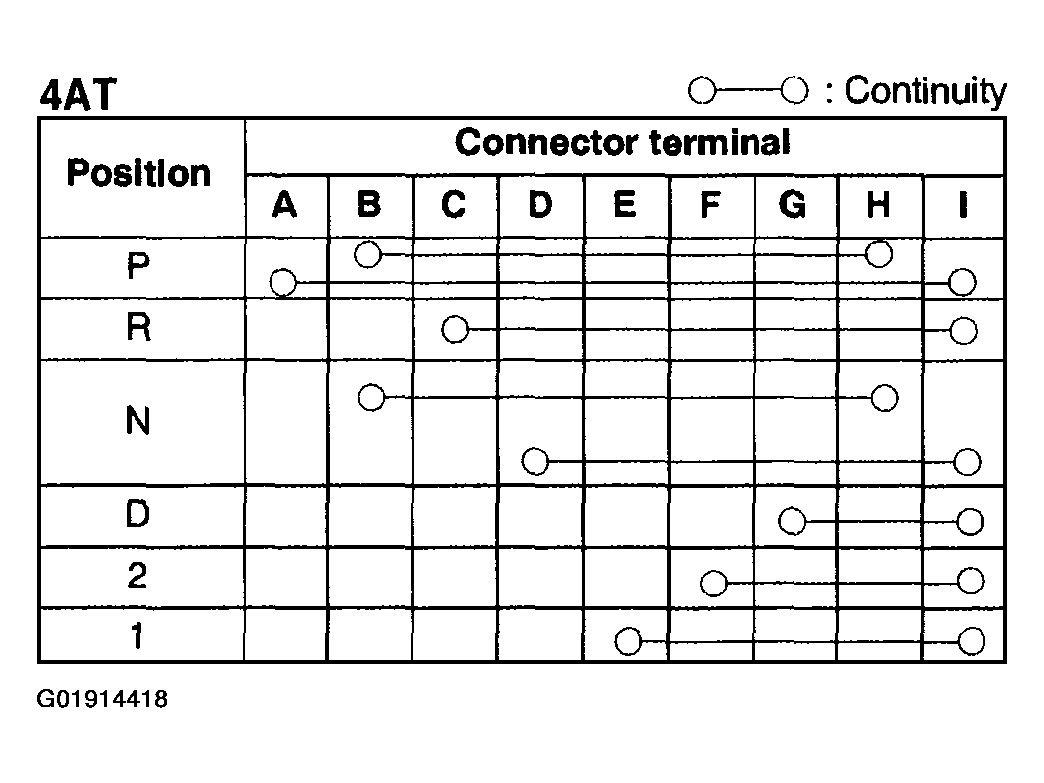

Fig 1: Terminal Continuity Chart 4AT
Courtesy of MAZDA MOTORS CORP.

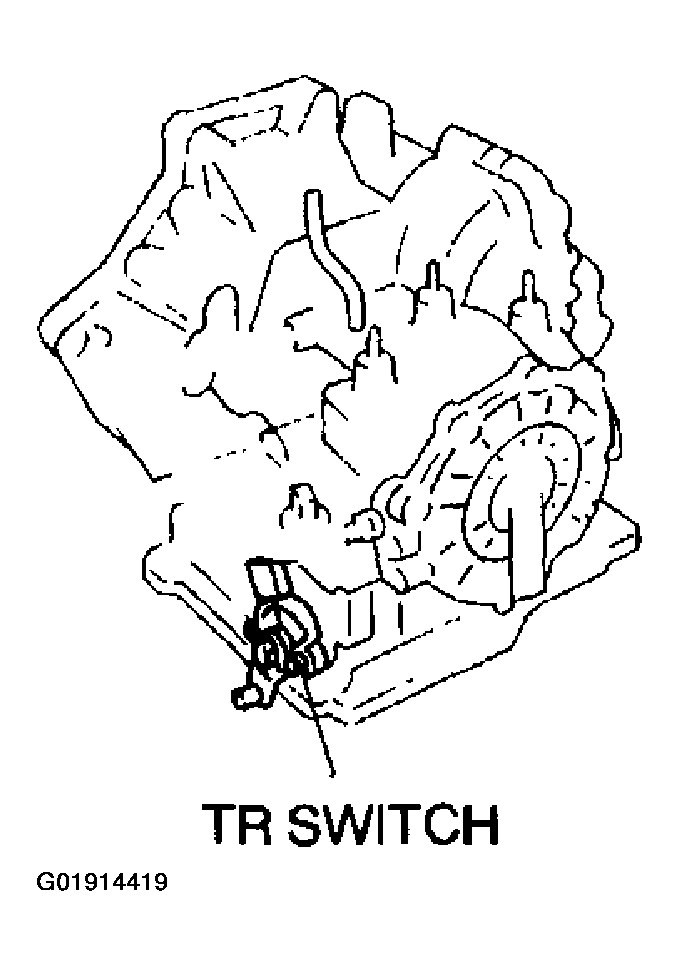

Fig 2: Identifying TR Switch
Courtesy of MAZDA MOTORS CORP.

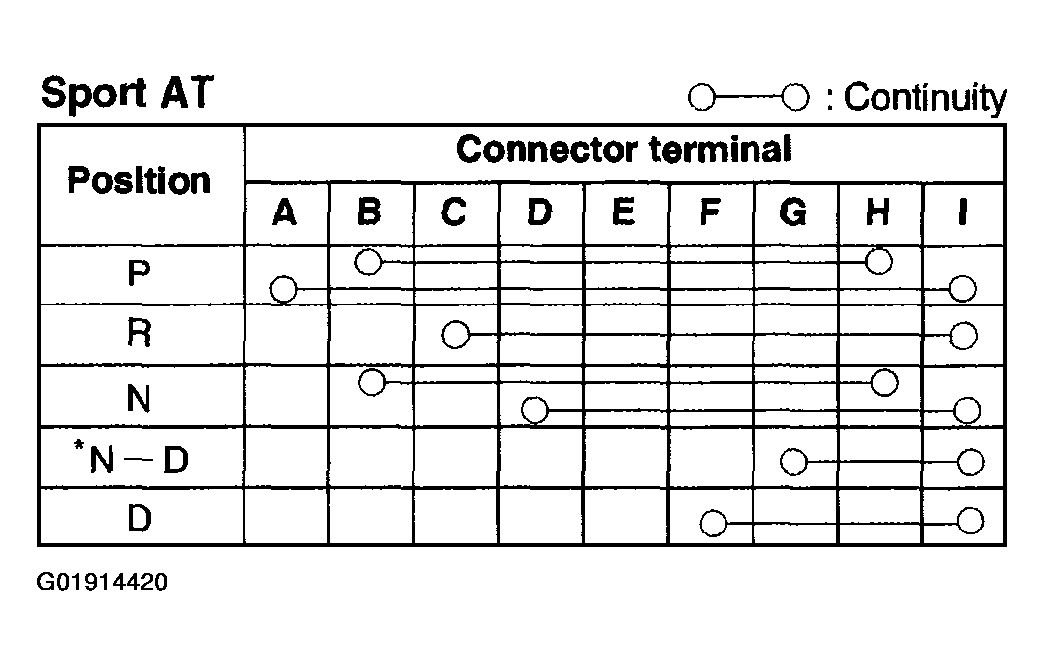

Fig 3: Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace or adjust the TR switch. (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION .) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT .)

  Fig 4: Identifying TR Switch Connector
  Courtesy of MAZDA MOTORS CORP.
